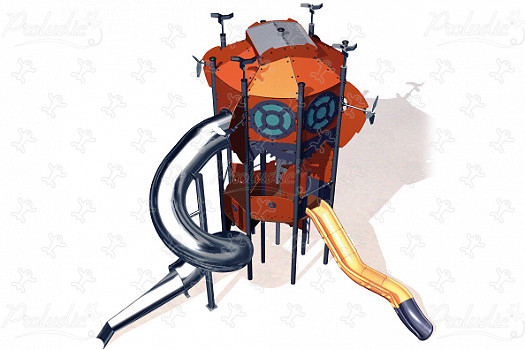

Metropolis - Octagonal Tower - J47101

We have created the reference J47101 in our "Metropolis" range. This module is accessible from 3 years. It can accommodate up to 25 users.

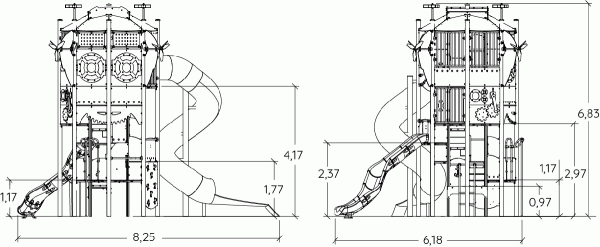

The size of the module is: 6.18 m length, 8.25 m width, 6.80 m. high. The free fall height (FFH) is 2.37 m.

Other finishes available

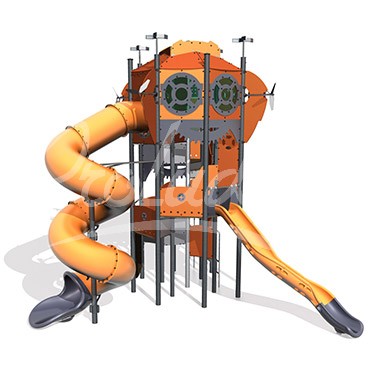

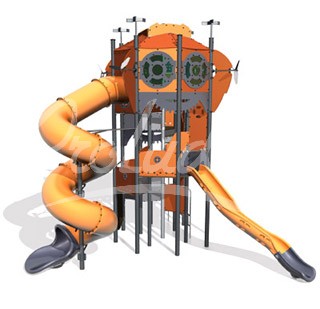

J47101-P

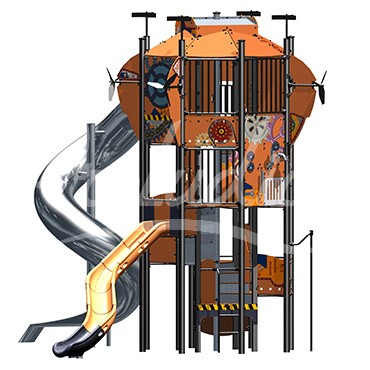

J47101-GF

19 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x3

Role play promotes the child's intellectual and social skills.

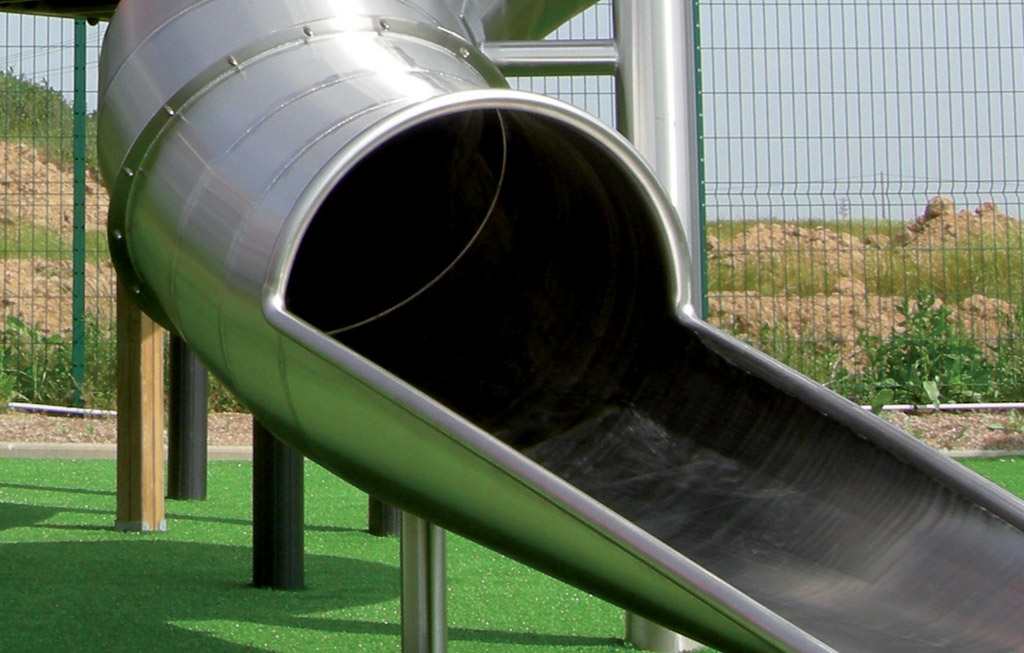

Sliding x3

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	25 users
FFH :	2.37 m
Size:	6.18 x 8.25 x 6.80 m

Equipment installation

Number of installers:	4
Installation time:	99:00:00
Concrete volume:	2.70 m3

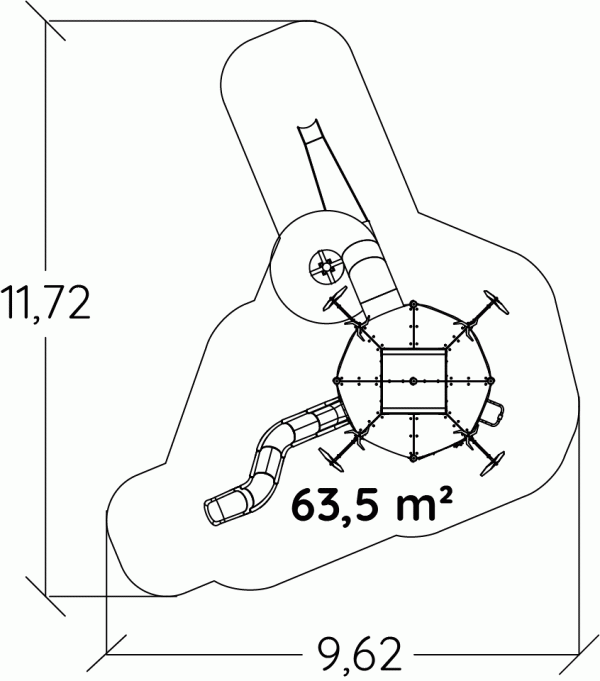

Surface:	63.50 m2
Total weight:	2995.41 kg
Weight of the heaviest element:	600.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

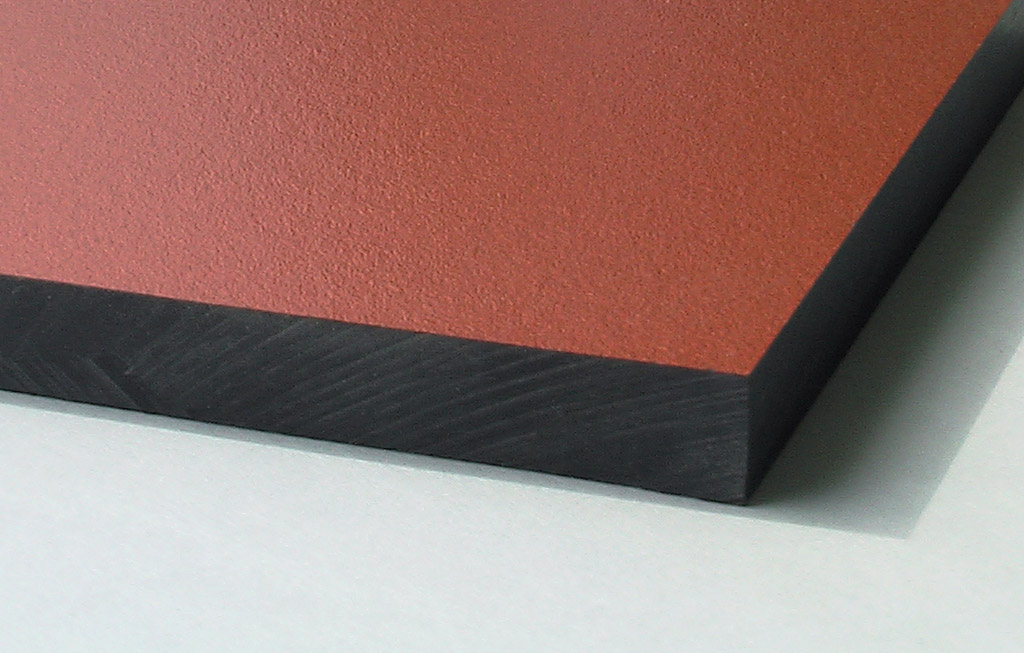

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
