Metropolis - Double Tower - J47103

We have created the reference J47103 in our "Metropolis" range. This module is accessible from 3 years. It can accommodate up to 75 users.

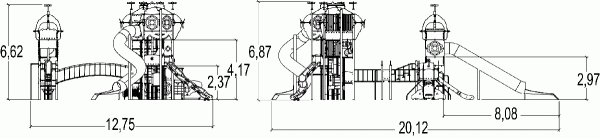

The size of the module is: 20.00 m length, 13.00 m width, 7.00 m. high. The free fall height (FFH) is 2.37 m.

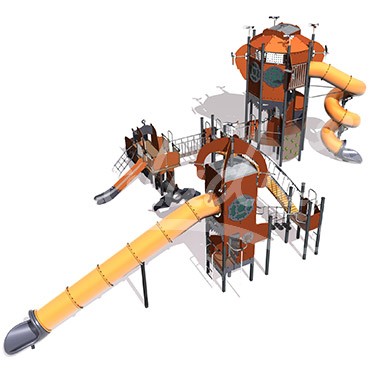

Other finishes available

J47103-P

52 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x6

Role play promotes the child's intellectual and social skills.

Sliding x6

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x6

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x3

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x2

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Visual stimulation x6

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x9

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	75 users
FFH :	2.37 m
Size:	20.00 x 13.00 x 7.00 m

Equipment installation

Number of installers:	2
Concrete volume:	6.40 m3
Surface:	178.00 m2
Total weight:	6004.45 kg
Weight of the heaviest element:	700.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The platforms, the steps and the climbing walls are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The tubular slide is made of stainless steel.

The Kayak slide is made of rotomoulded polyethylene.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The gangway floor is made of solid wood planks, with rubber elements between the planks to avoid all risk of catching a finger.

The steps of the catwalk are made with a non-slip rubber overmould.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
