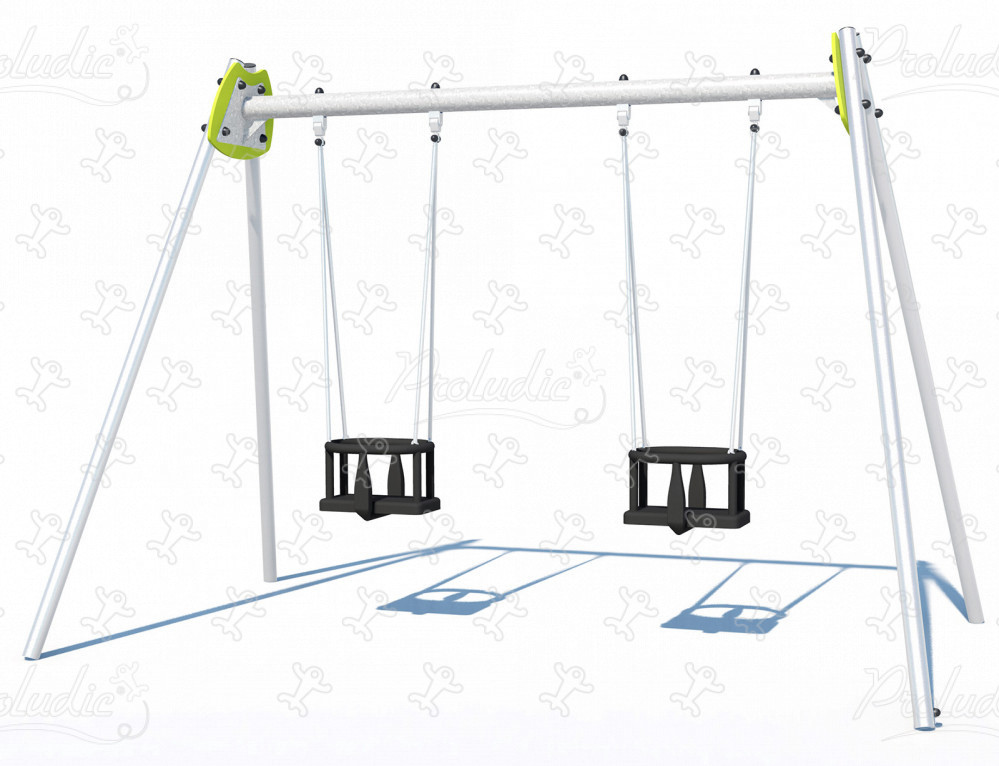

Swings - 2 cradle seats - J474

We have created the reference J474 in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 2 users.

The size of the module is: 3.20 m length, 1.70 m width, 2.20 m. high. The free fall height (FFH) is 1.20 m.

3 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	1 - 3
Number of users:	2 users
FFH :	1.20 m

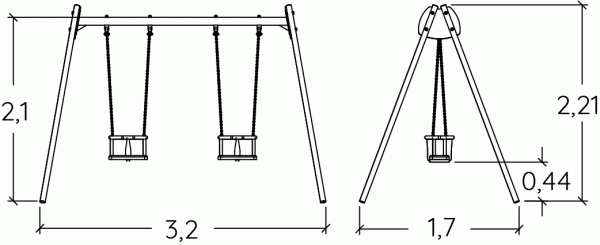

Size:	3.20 x 1.70 x 2.20 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.11 m3

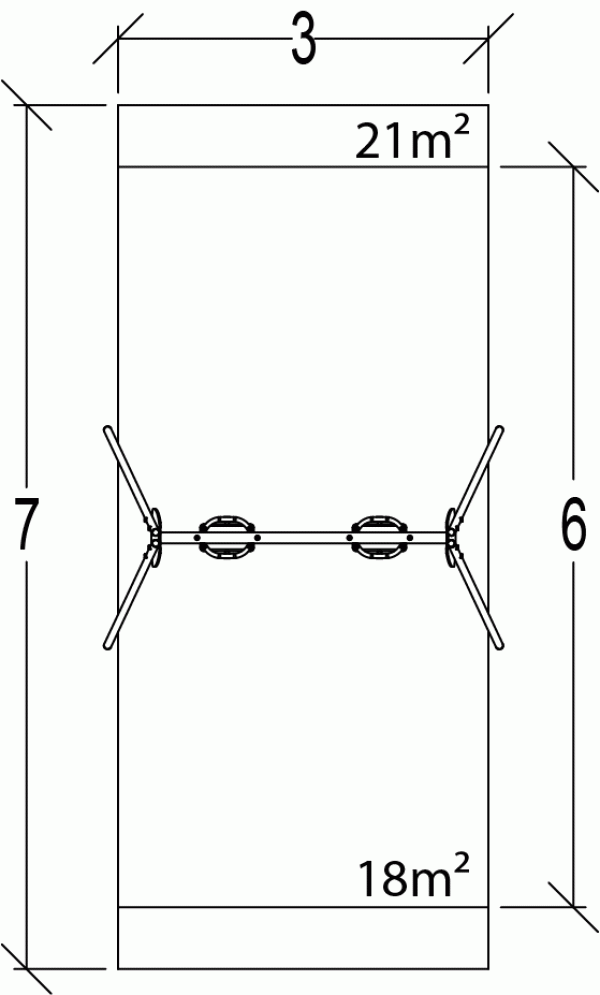

Surface:	18.00 m2
Total weight:	102.93 kg
Weight of the heaviest element:	30.91 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The support legs are made from 60mm galvanised steel.

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The swing bearings are made of stainless steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
