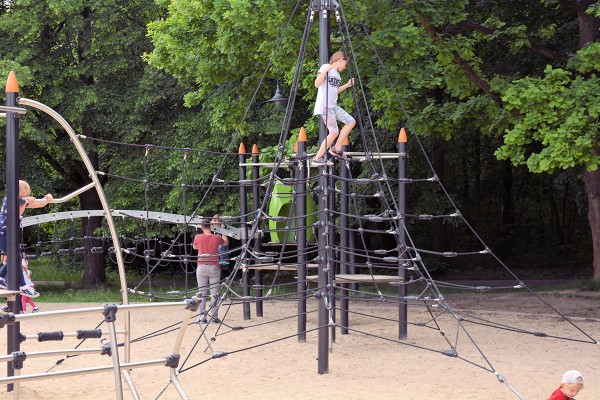

Rope structures - J4800

We have created the reference J4800 in our "Rope structures" range. This module is accessible from 6 years. It can accommodate up to 35 users.

The size of the module is: 13.69 m length, 10.26 m width, 5.00 m. high. The free fall height (FFH) is 2.50 m.

33 play functions

Meeting x8

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x4

Resting allows the child to recover from their exertions, and also improve their concentration.

Hiding x4

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Hanging x2

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Taking shelter x4

Finding a small refuge to shelter in ensures children have a space of their own.

Specifications

Age range:	6+
Number of users:	35 users
FFH :	2.50 m
Size:	13.69 x 10.26 x 5.00 m

Equipment installation

Number of installers:	3
Installation time:	10:00:00
Concrete volume:	3.40 m3

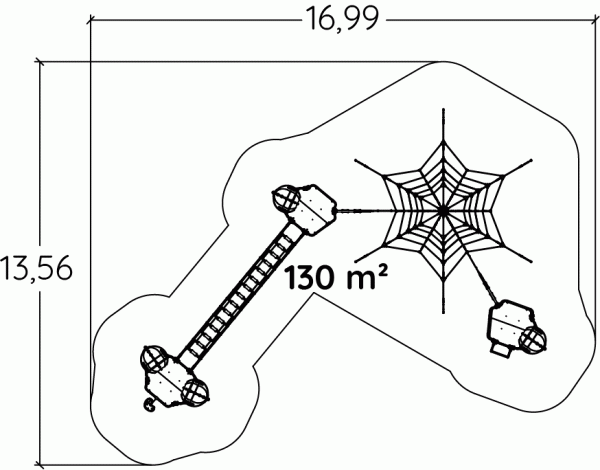

Surface:	130.00 m2
Total weight:	1044.90 kg
Weight of the heaviest element:	150.98 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
