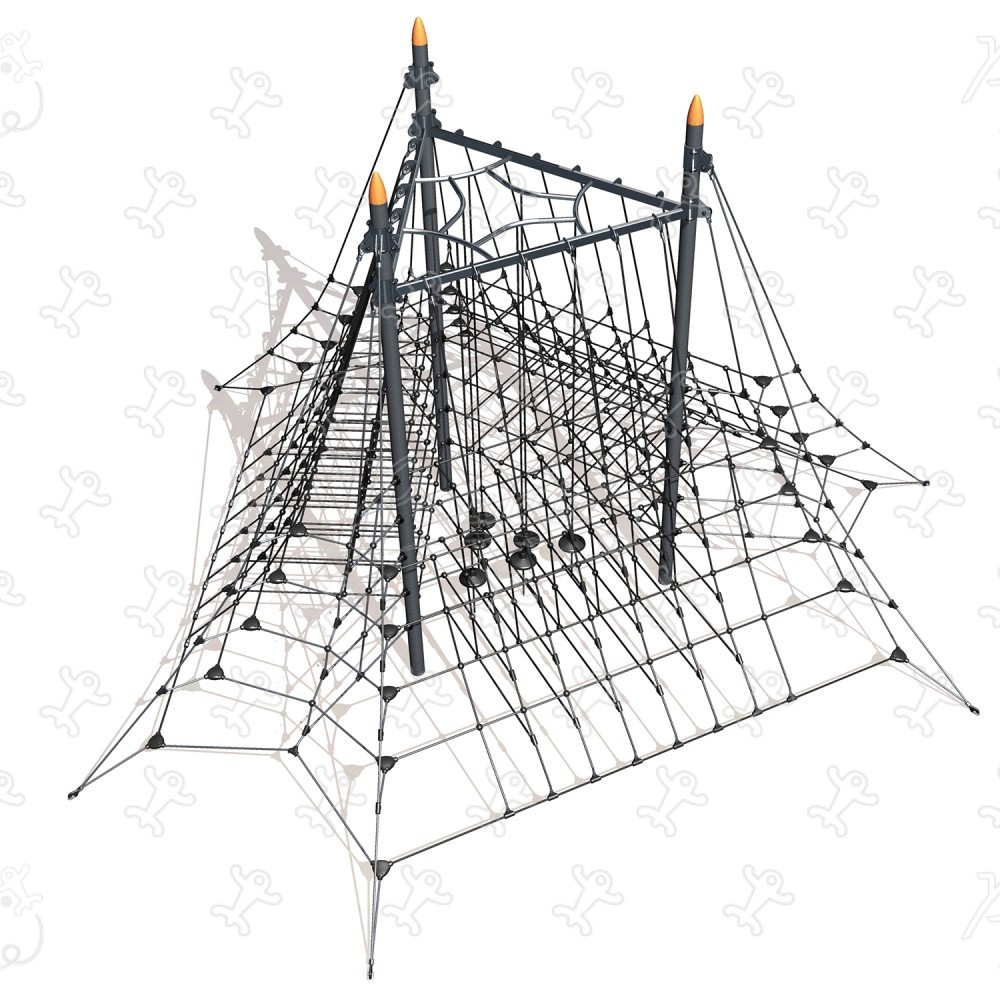

Climbing equipment - Triple Pyramid - J4811

We have created the reference J4811 in our "Climbing equipment" range. This module is accessible from 6 years. It can accommodate up to 35 users.

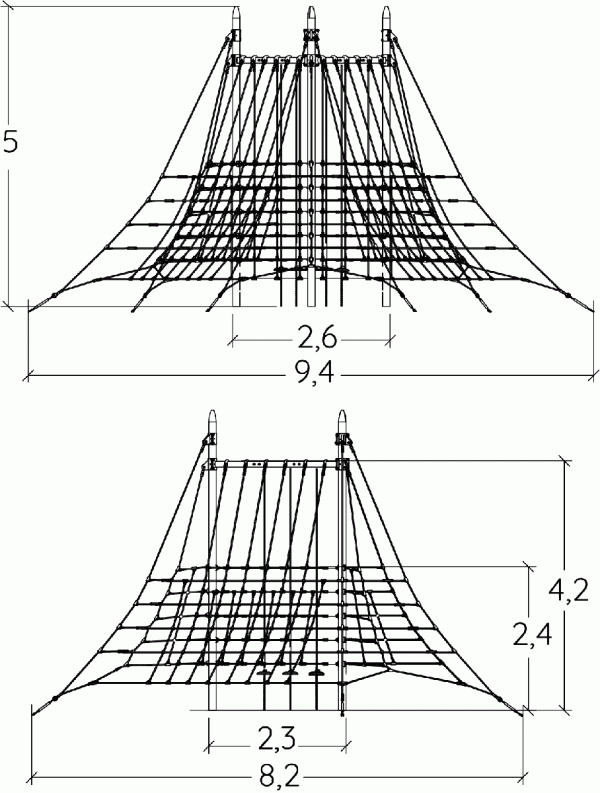

The size of the module is: 8.15 m length, 9.40 m width, 5.00 m. high. The free fall height (FFH) is 2.60 m.

6 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Specifications

Age range:	6+
Number of users:	35 users
FFH :	2.60 m
Size:	8.15 x 9.40 x 5.00 m

Equipment installation

Number of installers:	4
Installation time:	04:00:00
Concrete volume:	5.60 m3

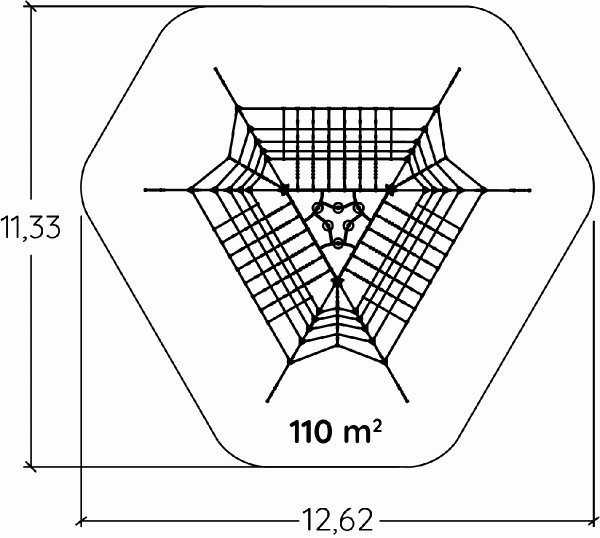

Surface:	110.00 m2
Total weight:	445.52 kg
Weight of the heaviest element:	40.88 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
