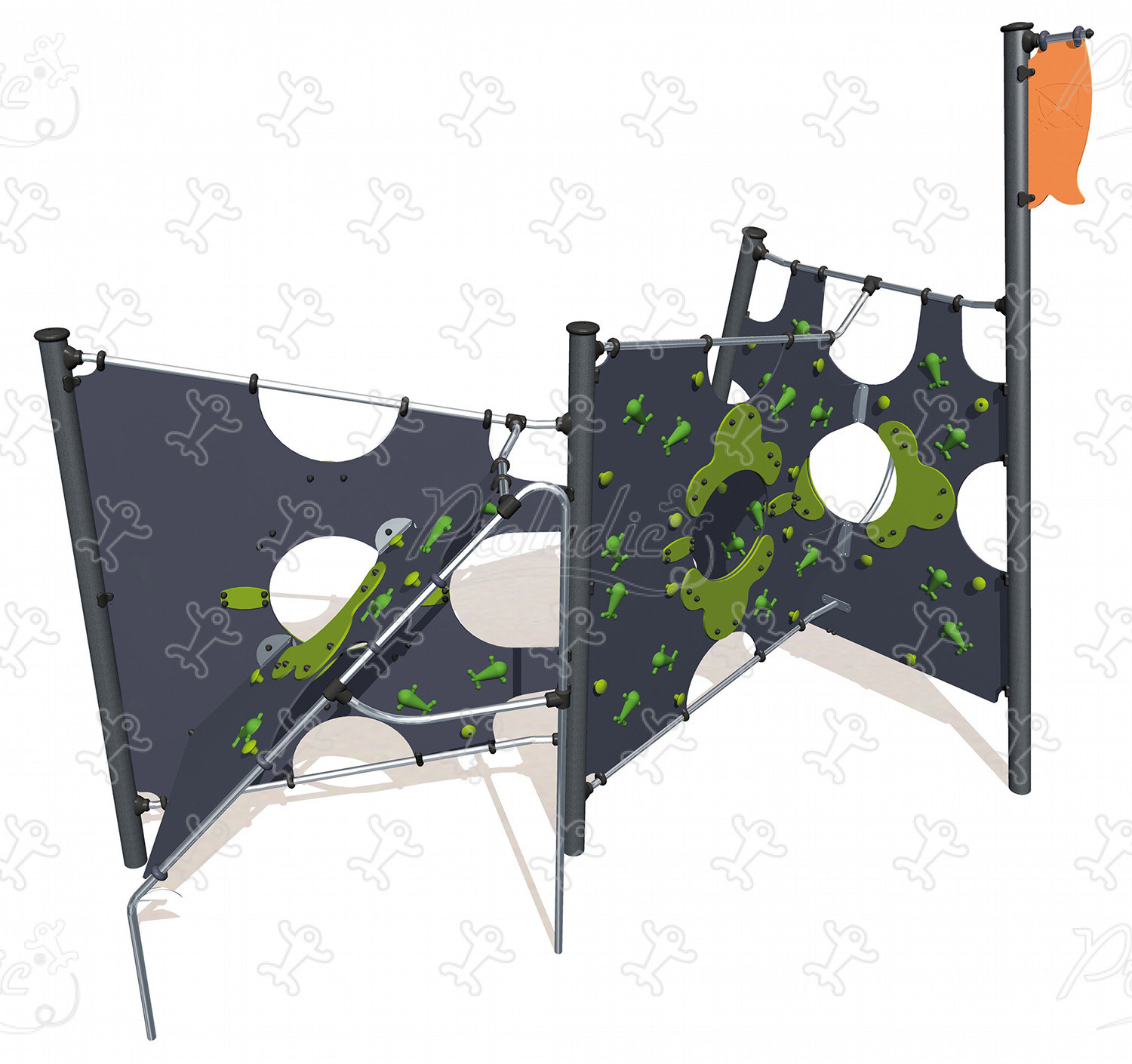

Climbing equipment - J48304

We have created the reference J48304 in our "Climbing equipment" range. This module is accessible from 6 years. It can accommodate up to 15 users.

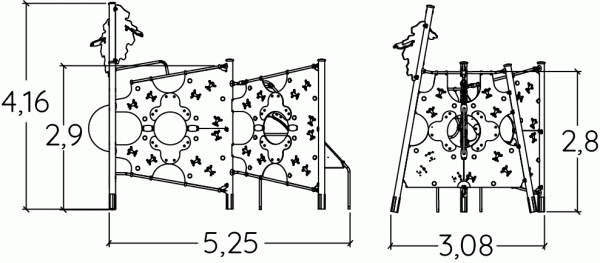

The size of the module is: 5.25 m length, 3.08 m width, 4.16 m. high. The free fall height (FFH) is 2.90 m.

8 play functions

Climbing x4

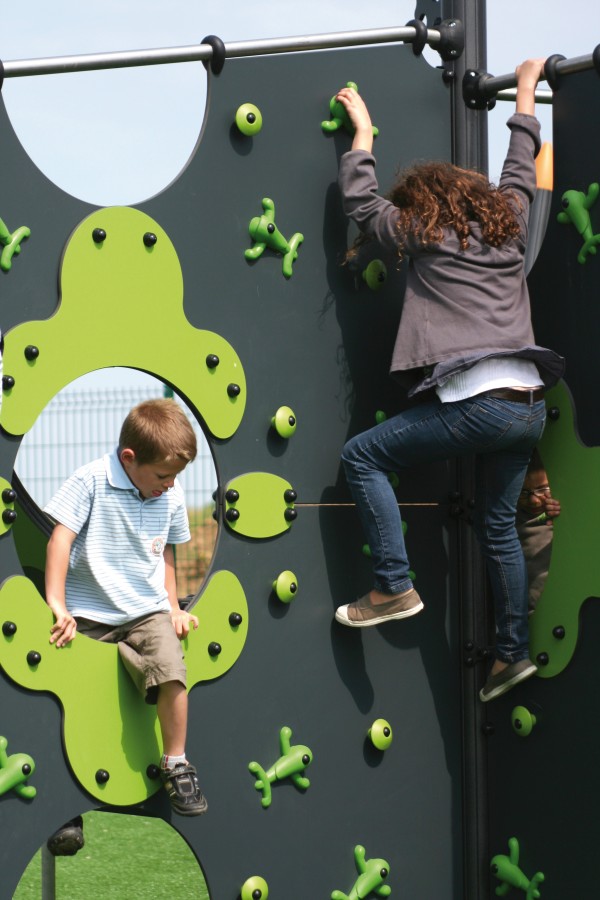

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	6+
Number of users:	15 users
FFH :	2.90 m
Size:	5.25 x 3.08 x 4.16 m

Equipment installation

Number of installers:	4
Installation time:	07:00:00
Concrete volume:	0.30 m3
Surface:	69.50 m2
Total weight:	419.70 kg
Weight of the heaviest element:	36.72 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
