Climbing equipment

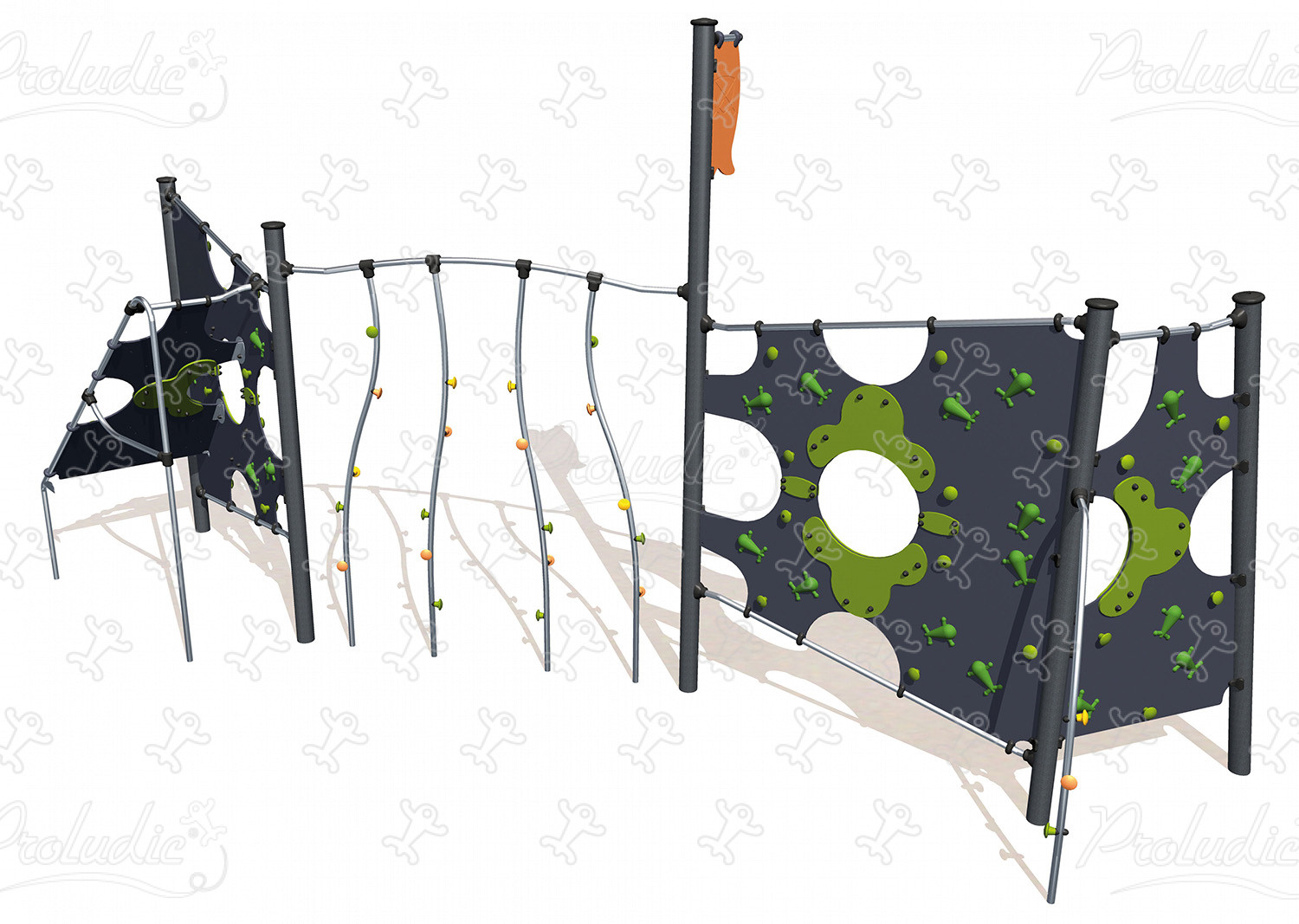

J48305
We have created the reference J48305 in our "Climbing equipment" range. This module is accessible from 6 years. It can accommodate up to 20 users.

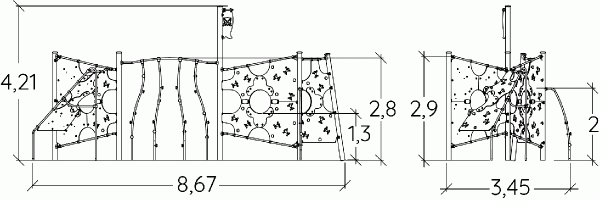

The size of the module is: 8.67 m length, 3.45 m width, 4.20 m. high. The free fall height (FFH) is 2.90 m.
| Age range: | 6+ |
| Number of users: | 20 users |
| FFH : | 2.90 m |
| Size: | 8.67 x 3.45 x 4.20 m |
| Number of installers: | 4 |
| Installation time: | 08:00:00 |
| Concrete volume: | 0.50 m3 |

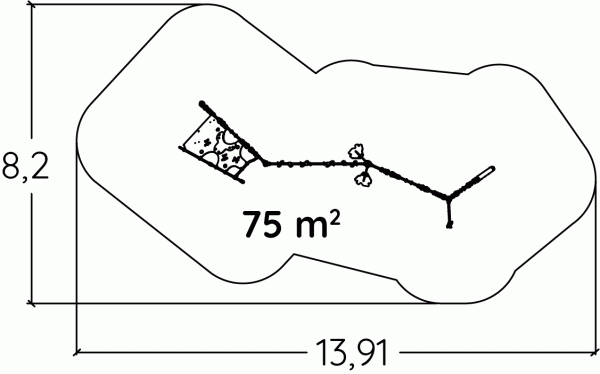

| Surface: | 75.00 m2 |
| Total weight: | 422.60 kg |
| Weight of the heaviest element: | 36.72 kg |
The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
The climbing holds are made of polyamide for its strength and rigidity.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
