Balancing trails - Log Trail - J4907

We have created the reference J4907 in our "Balancing trails" range. This module is accessible from 3 years. It can accommodate up to 6 users.

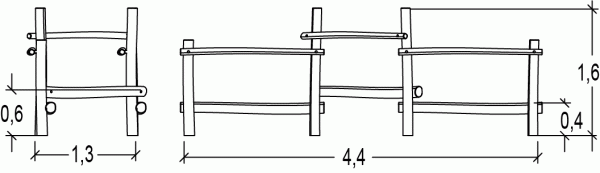

The size of the module is: 4.40 m length, 1.30 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

2 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	6 users
FFH :	0.60 m
Size:	4.40 x 1.30 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.27 m3

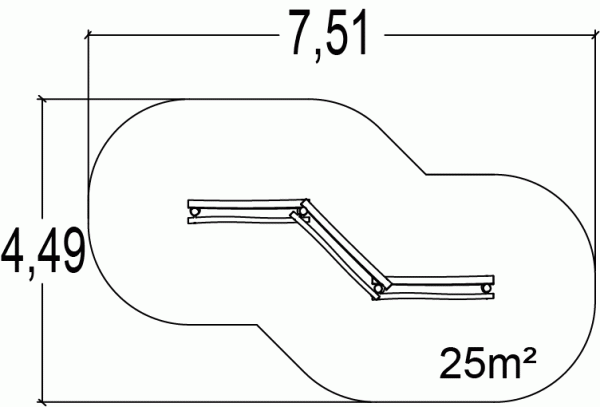

Surface:	25.00 m2
Total weight:	152.94 kg
Weight of the heaviest element:	25.30 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
