Pod seat
J491-G®
J491-G

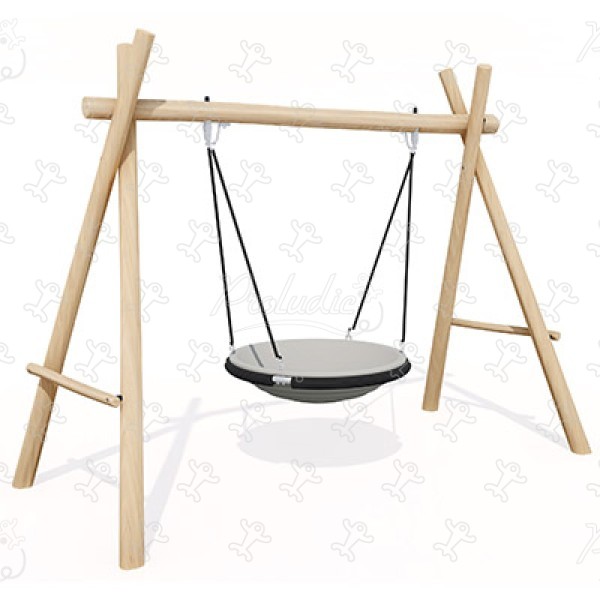

We have created the reference J491-G® in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 5 users.
The size of the module is: 3.90 m length, 1.75 m width, 2.89 m. high. The free fall height (FFH) is 1.55 m.
| Age range: | 2+ |
| Number of users: | 5 users |
| FFH : | 1.55 m |
| Size: | 3.90 x 1.75 x 2.89 m |
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.32 m3 |

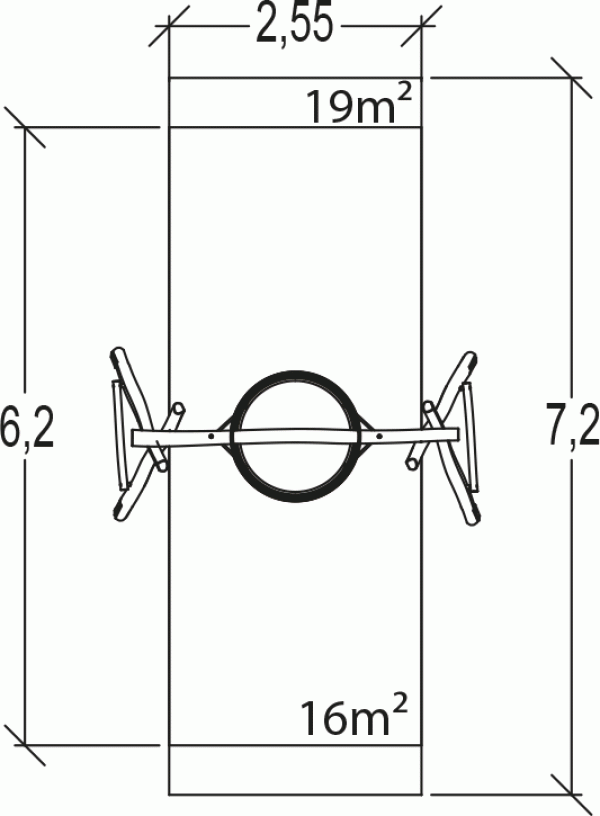

| Surface: | 16.00 m2 |
| Total weight: | 263.40 kg |
| Weight of the heaviest element: | 43.18 kg |
Repairability
9.29 /10

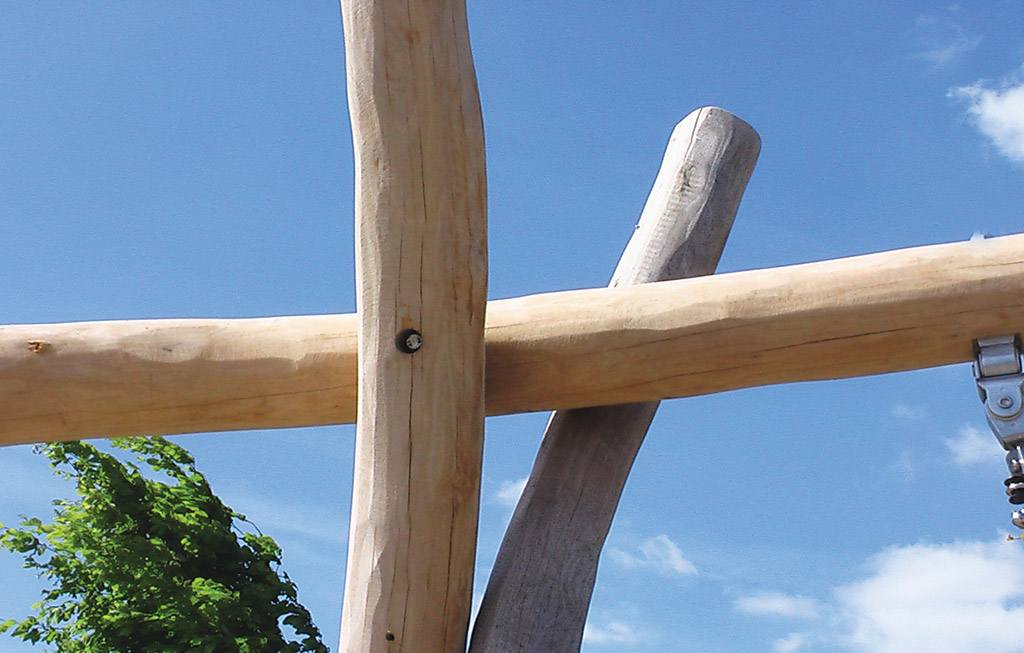

The posts and the horizontal beam (diameter 120 to 140mm), are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more
PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

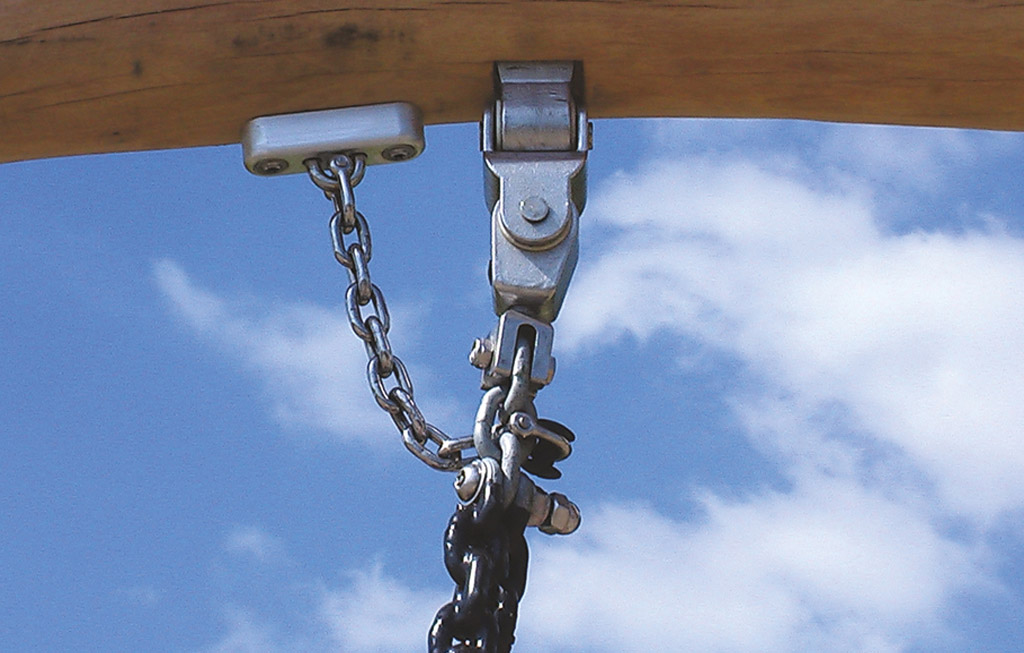

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
