Adventure - Biplane - J49103®

We have created the reference J49103® in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 6 users.

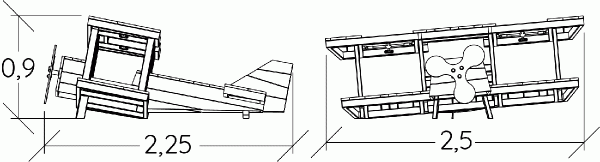

The size of the module is: 2.50 m length, 2.25 m width, 0.90 m. high. The free fall height (FFH) is 1.00 m.

6 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Role play x1

Role play promotes the child's intellectual and social skills.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.00 m
Size:	2.50 x 2.25 x 0.90 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.10 m3
Surface:	26.00 m2
Total weight:	148.01 kg
Weight of the heaviest element:	135.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

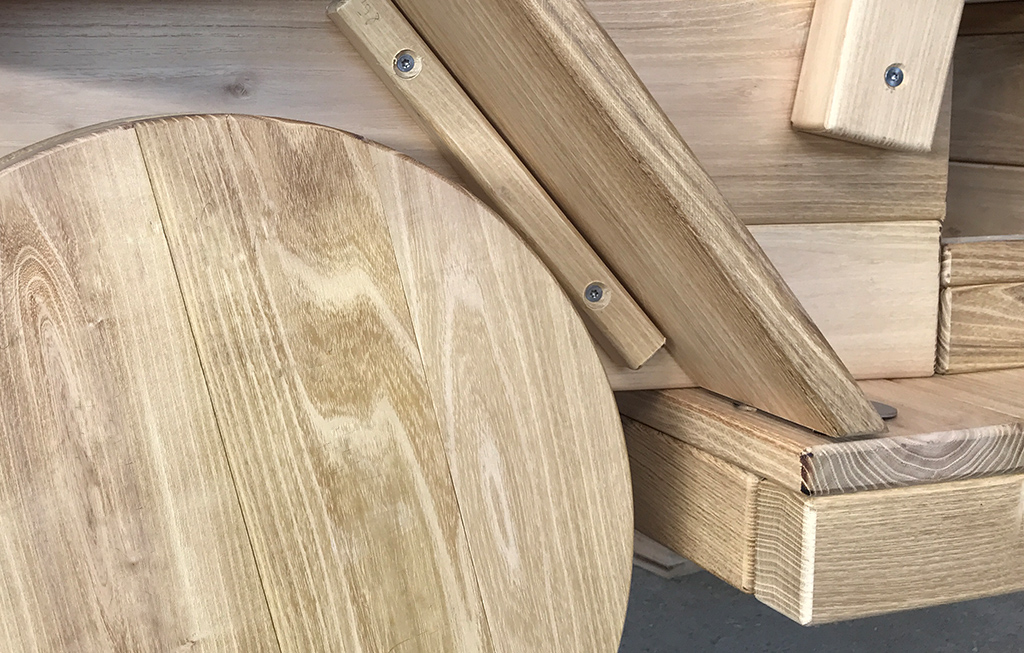

The boards are made from sap free robinia (plank sizes: 22 and 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The fixings for the nets and chains are made from aluminium.

The propeller of the plane is made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
