Medieval legends and tales - Dragon - J49116®

We have created the reference J49116® in our "Medieval legends and tales" range. This module is accessible from 3 years. It can accommodate up to 60 users.

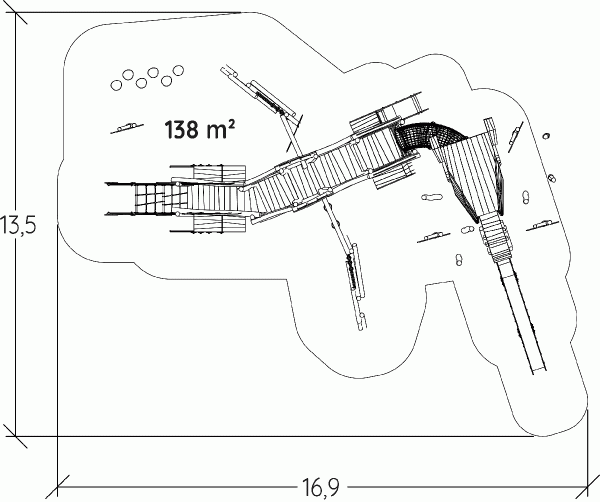

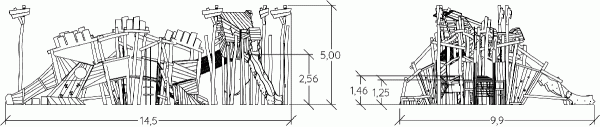

The size of the module is: 14.50 m length, 9.90 m width, 5.00 m. high. The free fall height (FFH) is 2.37 m.

Specifications

Age range:	3+
Number of users:	60 users
FFH :	2.37 m
Size:	14.50 x 9.90 x 5.00 m

Equipment installation

Number of installers:	4
Concrete volume:	6.00 m3
Surface:	138.00 m2
Total weight:	880.89 kg
Weight of the heaviest element:	500.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
