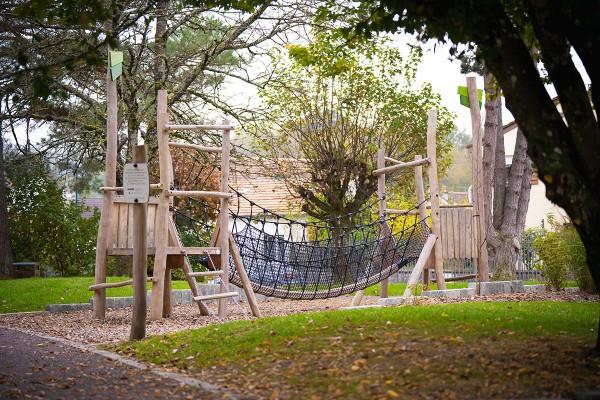

Suspended Bridge
J49125®
We have created the reference J49125® in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 21 users.

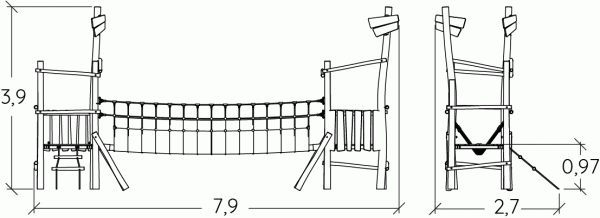

The size of the module is: 7.79 m length, 2.46 m width, 3.95 m. high. The free fall height (FFH) is 0.97 m.
| Age range: | 3+ |
| Number of users: | 21 users |
| FFH : | 0.97 m |
| Size: | 7.79 x 2.46 x 3.95 m |
| Number of installers: | 2 |
| Installation time: | 08:00:00 |
| Concrete volume: | 0.80 m3 |

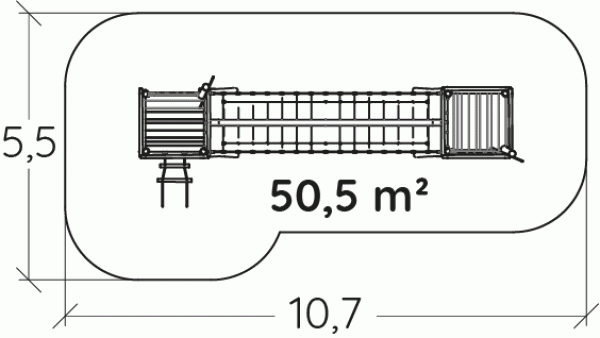

| Surface: | 50.00 m2 |
| Total weight: | 1869.17 kg |
| Weight of the heaviest element: | 1147.24 kg |
Repairability
9.48 /10
The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The boards are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

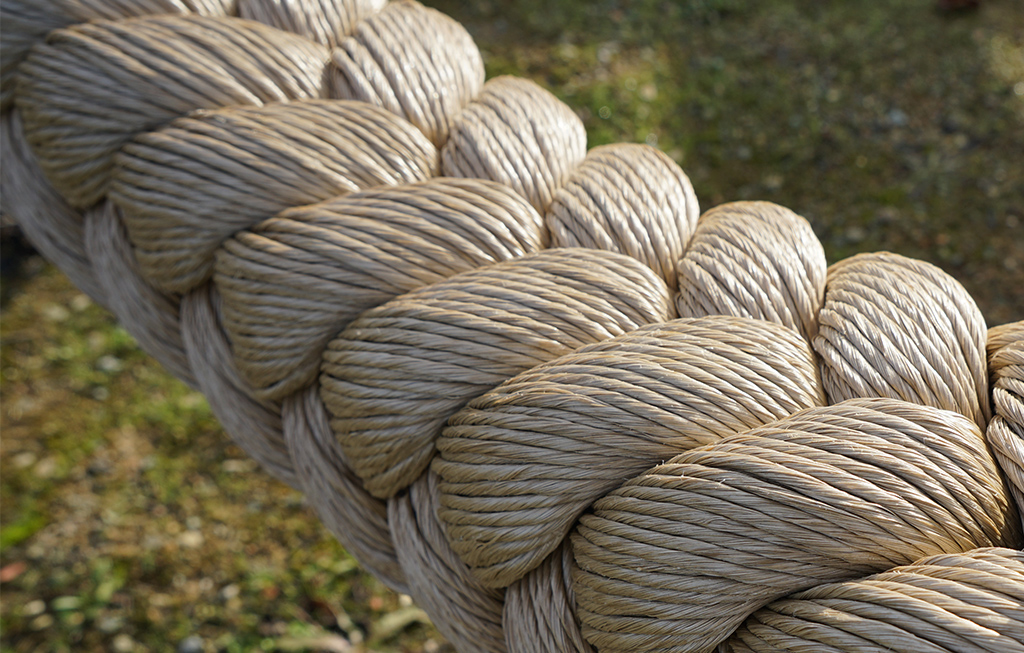

The rope is made of polypropylene.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
