Climbing and balancing trails - Mikado XL - J49160

We have created the reference J49160 in our "Climbing and balancing trails" range. This module is accessible from 2 years. It can accommodate up to 17 users.

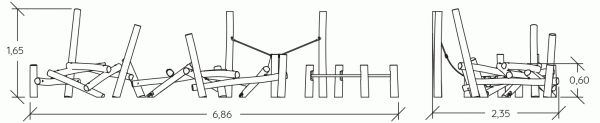

The size of the module is: 6.86 m length, 2.32 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

16 play functions

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x3

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Balancing x3

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	17 users
FFH :	0.60 m
Size:	6.86 x 2.32 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	1.00 m3

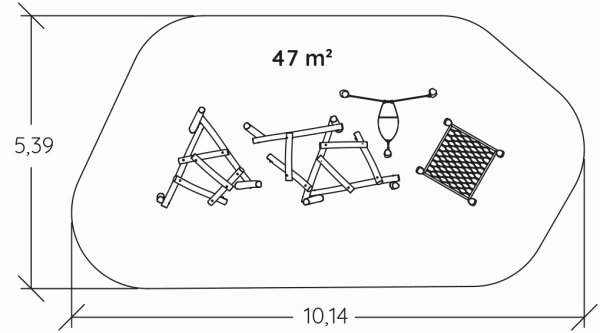

Surface:	45.50 m2
Total weight:	531.99 kg
Weight of the heaviest element:	210.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
