Origin’ themed equipment - Galleon - J49300®

We have created the reference J49300® in our "Origin’ themed equipment" range. This module is accessible from 3 years. It can accommodate up to 55 users.

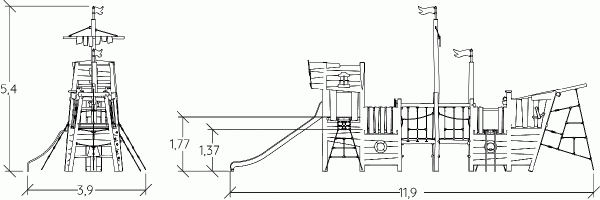

The size of the module is: 11.90 m length, 3.90 m width, 5.40 m. high. The free fall height (FFH) is 2.90 m.

32 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x6

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Tactile stimulation x2

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x8

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	55 users
FFH :	2.90 m
Size:	11.90 x 3.90 x 5.40 m

Equipment installation

Number of installers:	4
Installation time:	28:00:00
Concrete volume:	0.65 m3

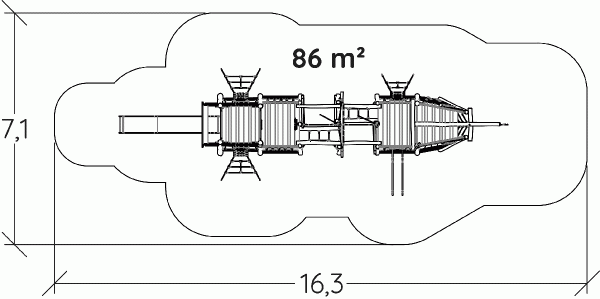

Surface:	86.00 m2
Total weight:	4062.08 kg
Weight of the heaviest element:	1495.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Video - Origin’ themed equipment - Galleon - J49300®

Materials

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

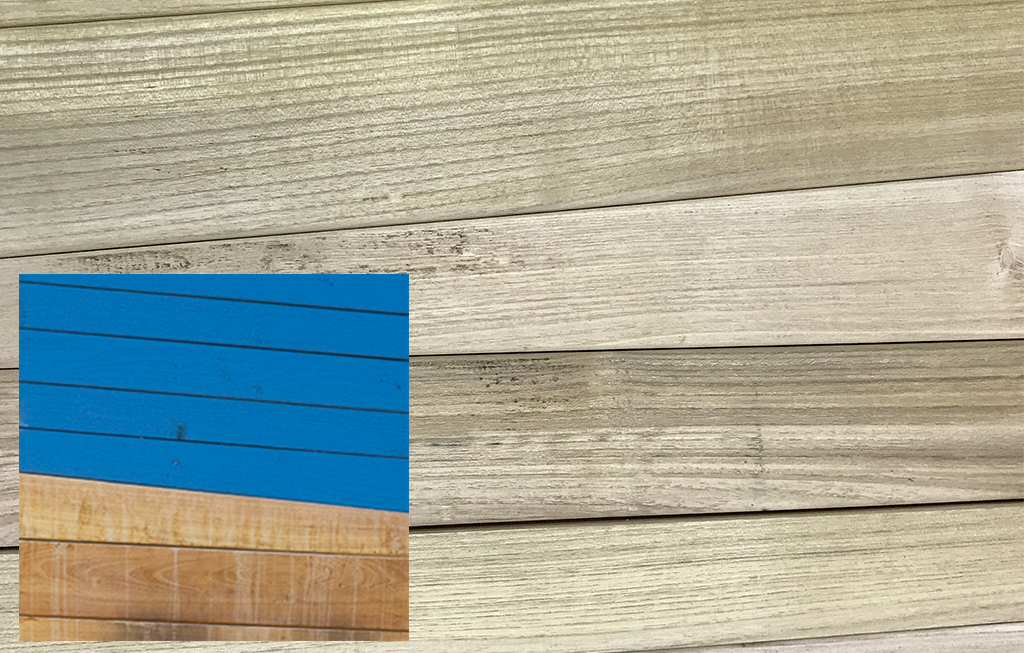

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22 and 27mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
