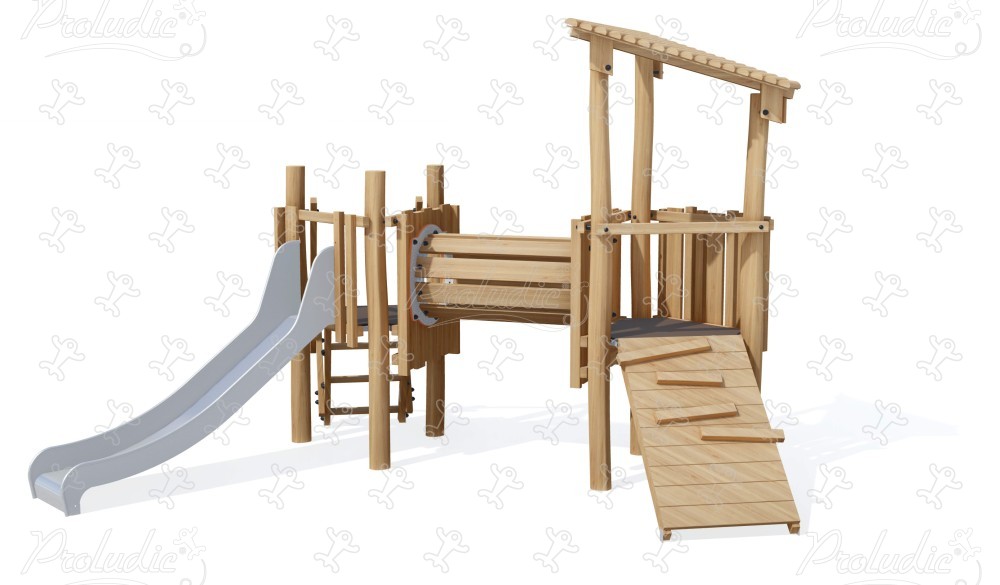

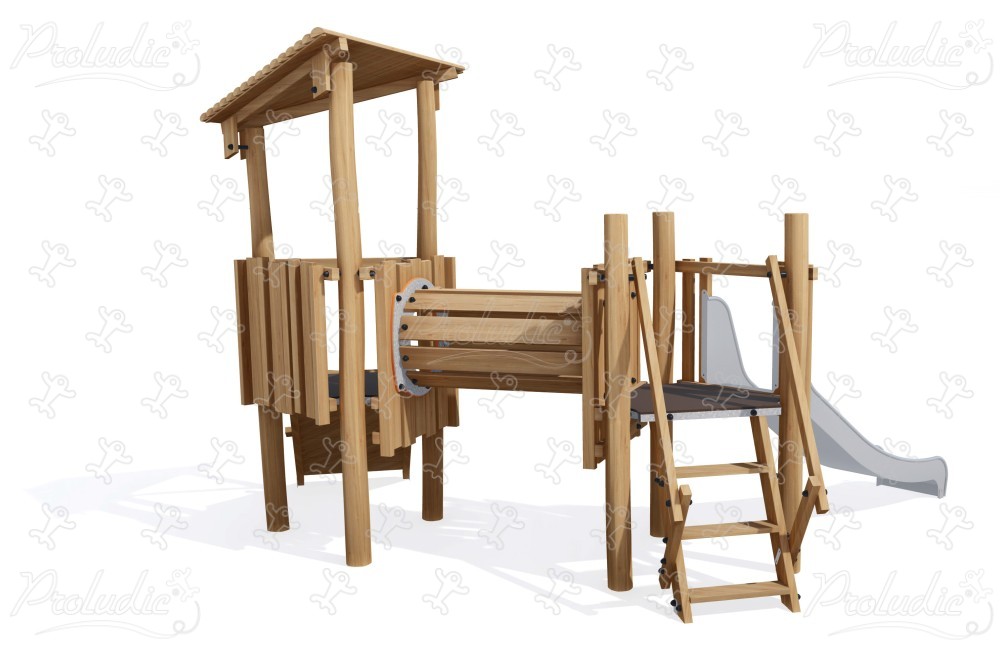

Multi play structures - J4933

We have created the reference J4933 in our "Multi play structures" range. This module is accessible from 2 years. It can accommodate up to 12 users.

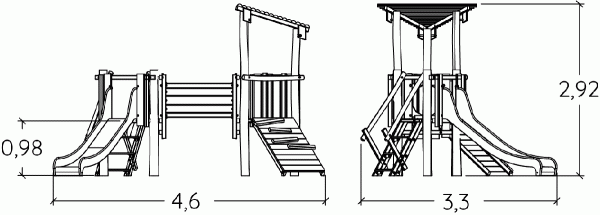

The size of the module is: 3.30 m length, 4.60 m width, 2.90 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

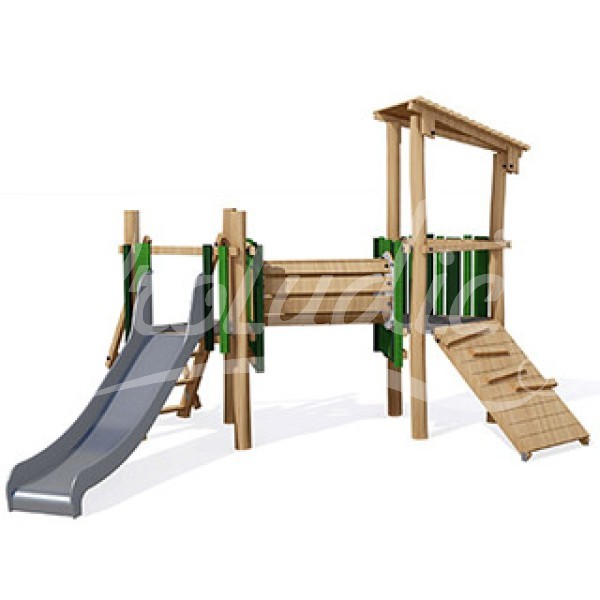

J4933-V

10 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

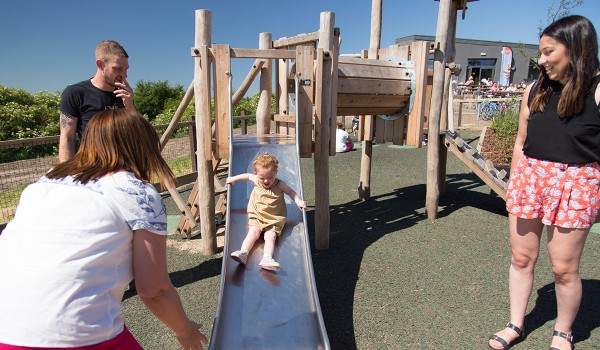

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.00 m
Size:	3.30 x 4.60 x 2.90 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00

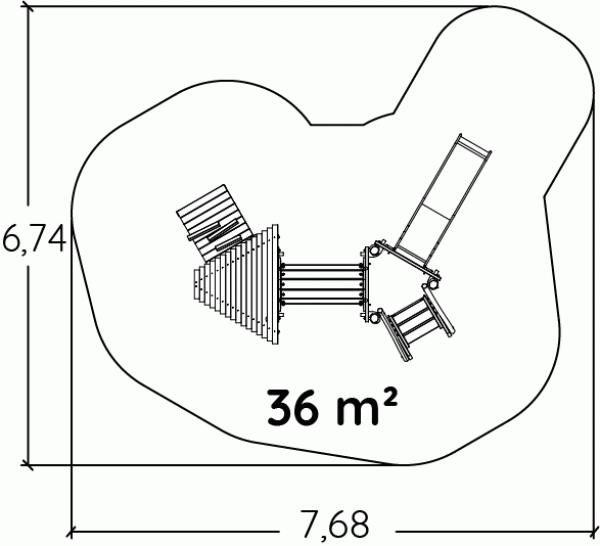

Surface:	36.00 m2
Total weight:	543.03 kg
Weight of the heaviest element:	53.27 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The roofs are made from larch logs (80 x 40 mm).

The panels, the climbing wall, the steps and the tunnel are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.
