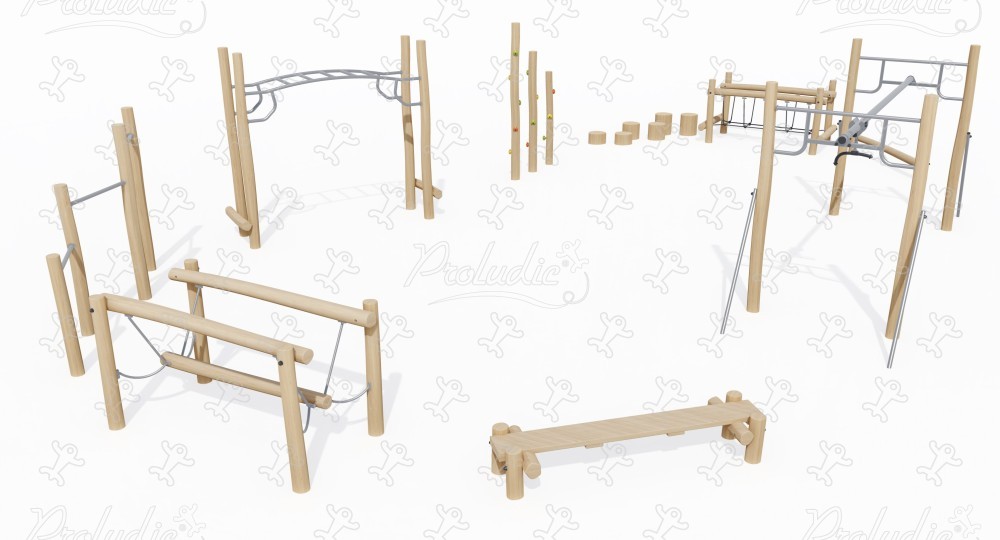

Balancing trails - J4936

We have created the reference J4936 in our "Balancing trails" range. This module is accessible from 6 years. It can accommodate up to 17 users.

The size of the module is: 14.24 m length, 8.00 m width, 2.50 m. high. The free fall height (FFH) is 2.20 m.

19 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Hanging x3

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x6

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Getting across x8

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Jumping x1

Specifications

Age range:	6+
Number of users:	17 users
FFH :	2.20 m

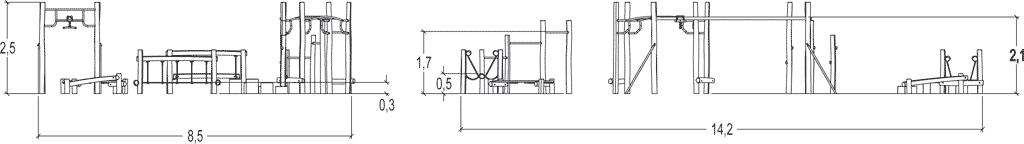

Size:	14.24 x 8.00 x 2.50 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.77 m3

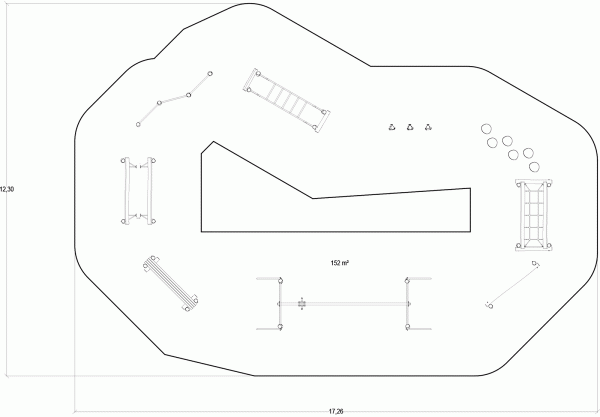

Surface:	152.00 m2
Total weight:	1221.83 kg
Weight of the heaviest element:	250.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is... naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The stair treads (with average diameter 33 to 35cm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof... and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The beams are made from natural Robinia wood or Douglas fir (plank sizes 45 x 68mm). Robinia wood or Douglas fir is naturally resistant and long lasting.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The chains are made of stainless steel.

The fixings for the nets and chains are made from aluminium.

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

The grip section of the stainless steel handle is overmoulded with rubber to give a good grip.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
