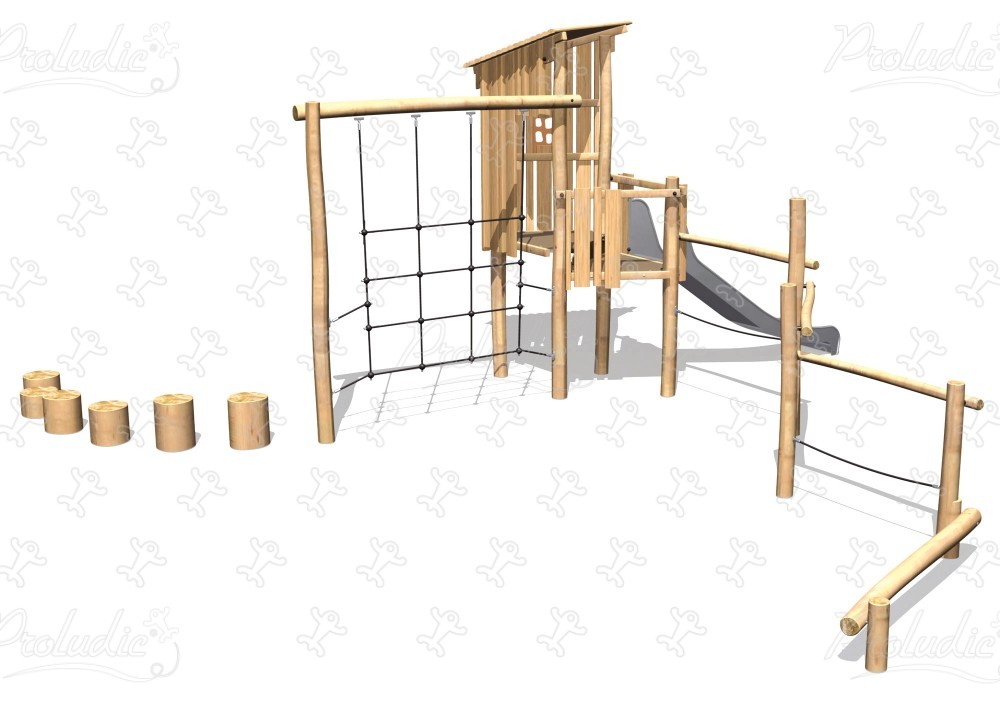

Multi play structures - J4937

We have created the reference J4937 in our "Multi play structures" range. This module is accessible from 3 years. It can accommodate up to 17 users.

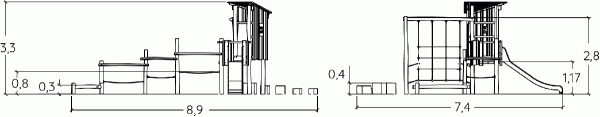

The size of the module is: 7.40 m length, 8.90 m width, 3.30 m. high. The free fall height (FFH) is 1.70 m.

Other finishes available

J4937-V

15 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x3

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Jumping x1

Specifications

Age range:	3+
Number of users:	17 users
FFH :	1.70 m
Size:	7.40 x 8.90 x 3.30 m

Equipment installation

Number of installers:	2
Installation time:	09:50:00
Concrete volume:	0.39 m3
Surface:	69.50 m2
Total weight:	871.43 kg
Weight of the heaviest element:	250.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The stair treads (with average diameter 33 to 35cm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof... and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22 and 27mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The porthole is made from lacquered Marine plywood. The colour is applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy... metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more

The platform is made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platform. Read more

The roof is made from robinia wood or Douglas fir logs (80 x 40 mm).

The slide is made of stainless steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
