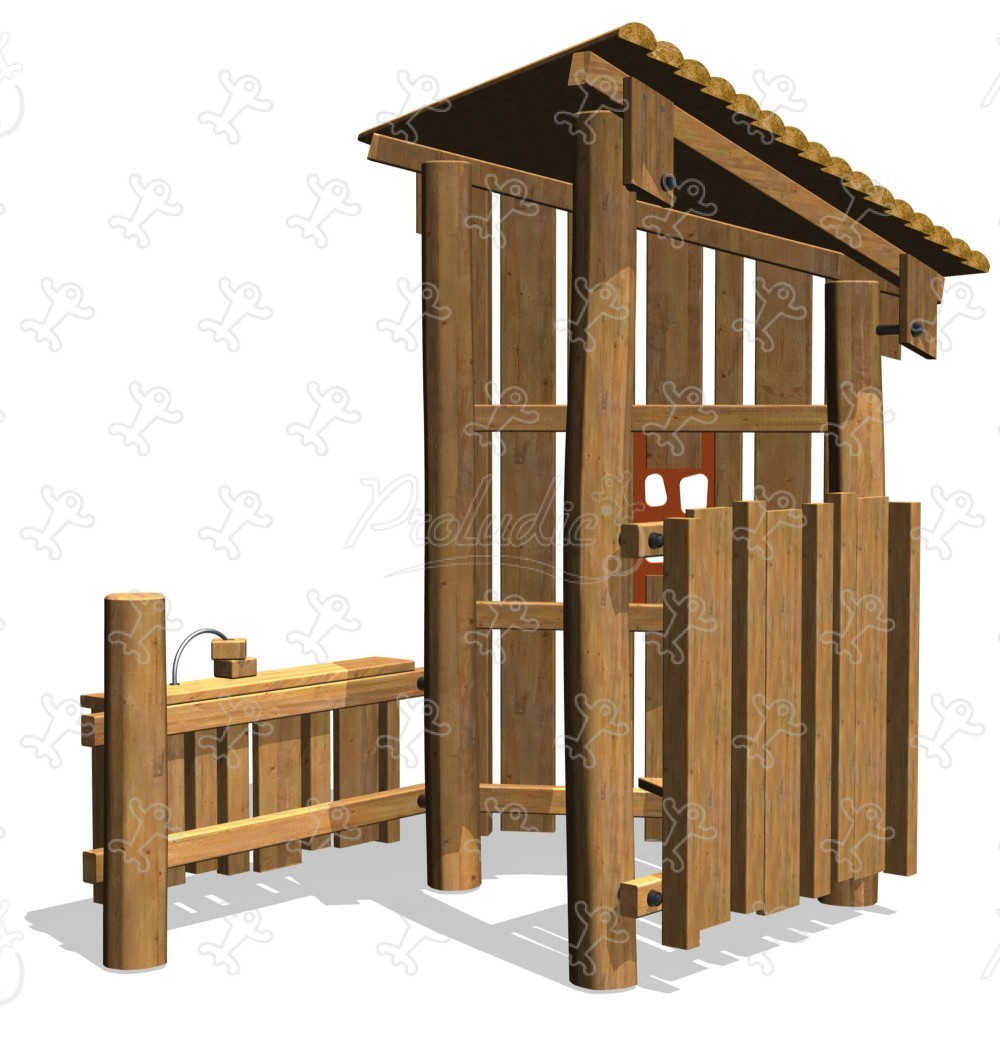

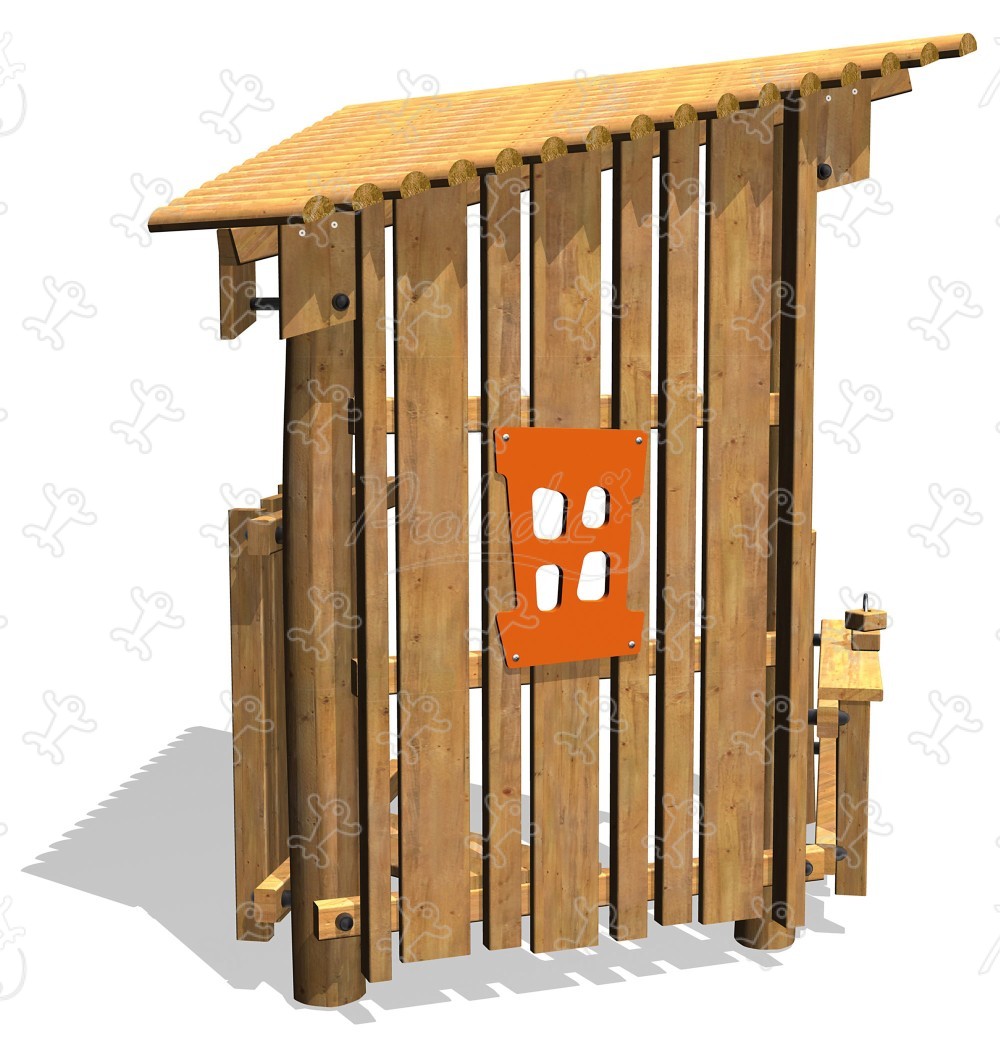

Multi play structures - J4941

We have created the reference J4941 in our "Multi play structures" range. This module is accessible from 1 year. It can accommodate up to 8 users.

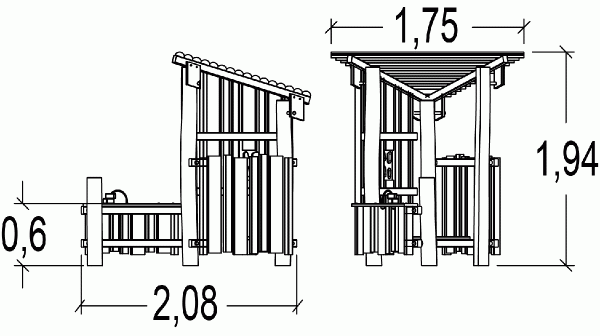

The size of the module is: 2.08 m length, 1.75 m width, 1.94 m. high. The free fall height (FFH) is 0.60 m.

7 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	1 - 8
Number of users:	8 users
FFH :	0.60 m
Size:	2.08 x 1.75 x 1.94 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.07 m3

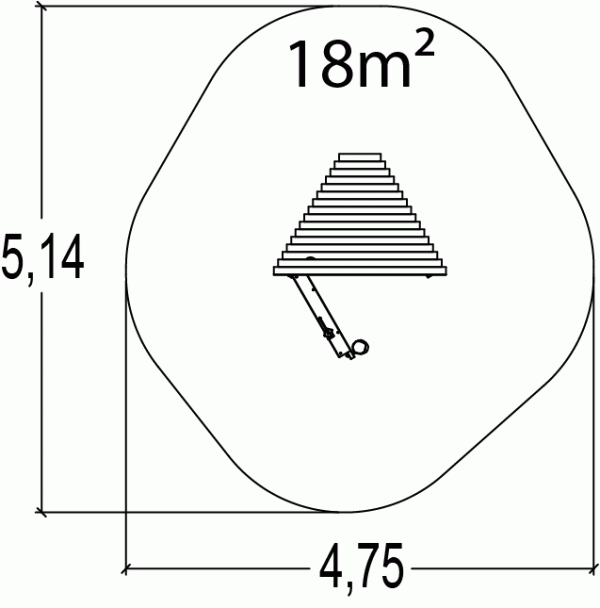

Surface:	18.00 m2
Total weight:	216.88 kg
Weight of the heaviest element:	35.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The panels and the shelf are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The roofs are made from larch logs (80 x 40 mm).

The abacus pieces are made from larch. The rail is made from 10mm diameter stainless steel.

The porthole is made from lacquered Marine plywood. The colour is applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy... metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more
