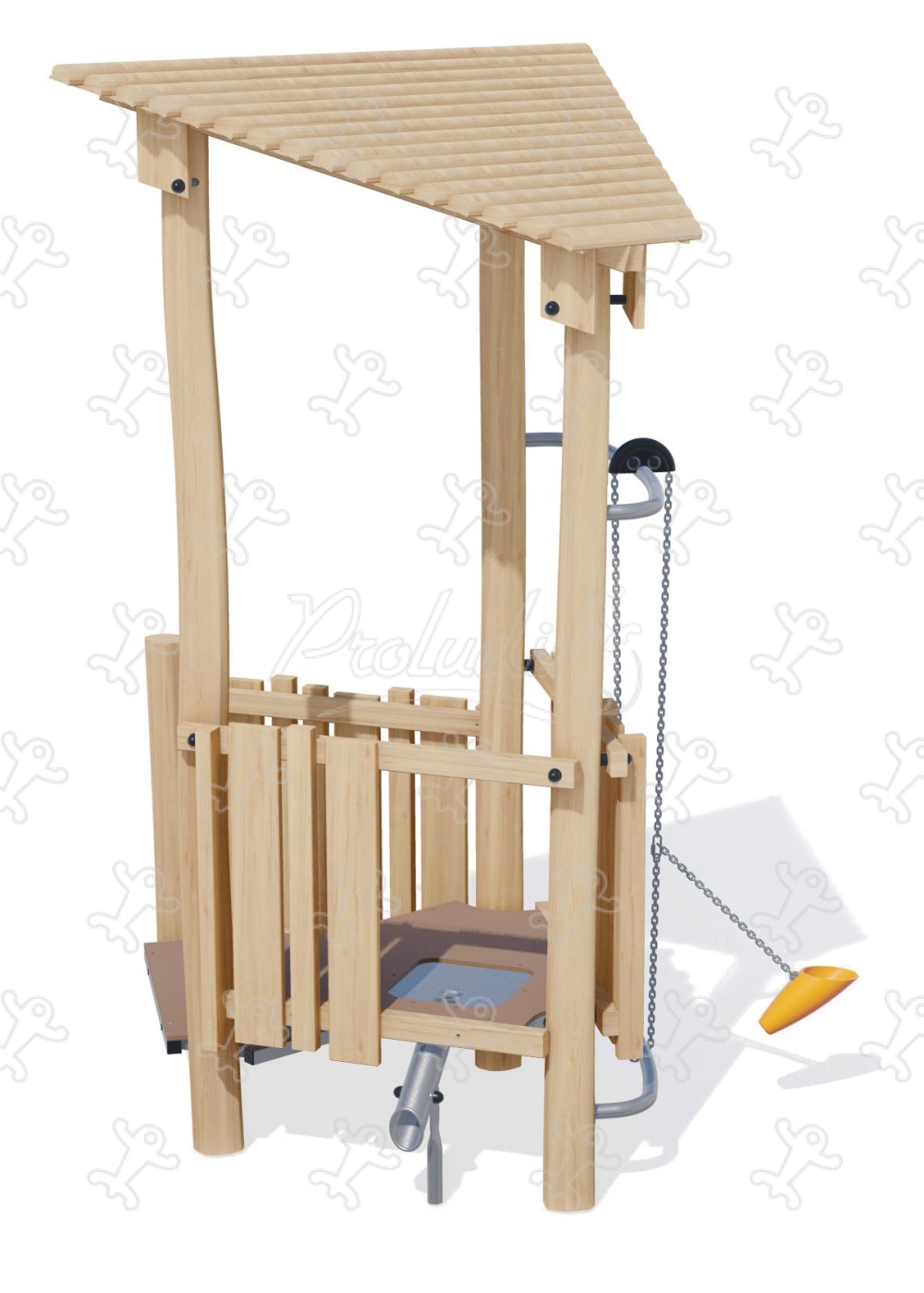

Multi play structures - Hut - J4942

We have created the reference J4942 in our "Multi play structures" range. This module is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 2.09 m length, 1.76 m width, 2.96 m. high. The free fall height (FFH) is 0.50 m.

Other finishes available

J4942-V

9 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Tactile stimulation x2

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	4 users
FFH :	0.50 m
Size:	2.09 x 1.76 x 2.96 m

Equipment installation

Number of installers:	3
Installation time:	08:00:00
Concrete volume:	0.29 m3
Surface:	21.00 m2
Total weight:	301.74 kg
Weight of the heaviest element:	38.50 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

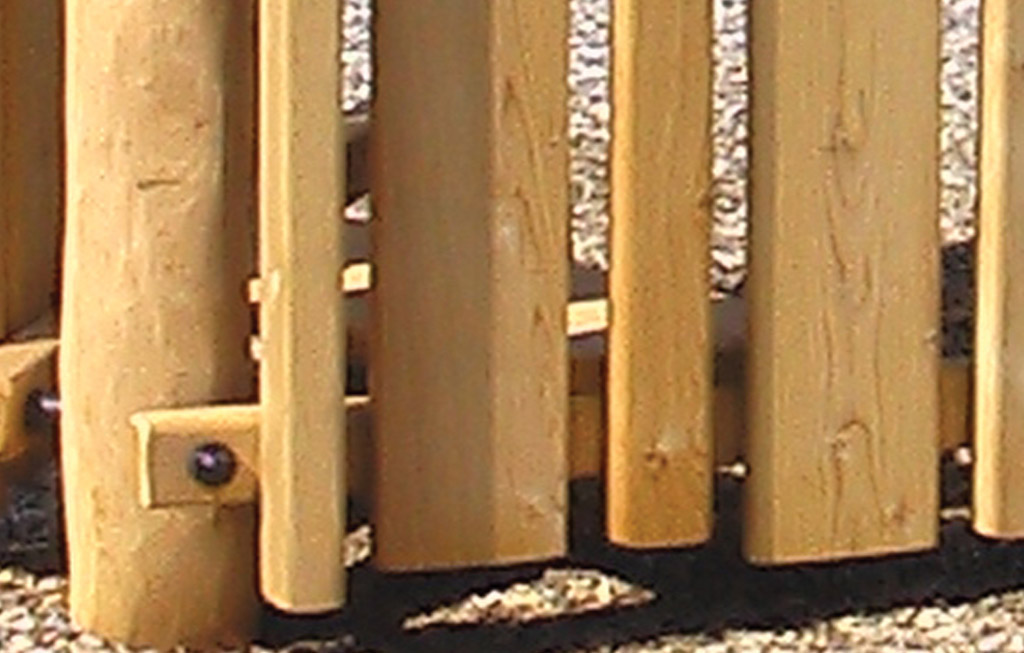

The panels are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The roof is made from larch logs (80 x 40 mm).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
