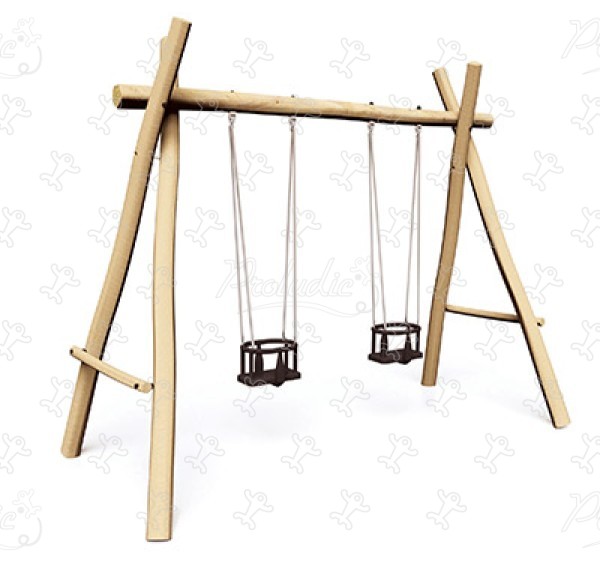

Swings - 2 cradle seats - J498

We have created the reference J498 in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 2 users.

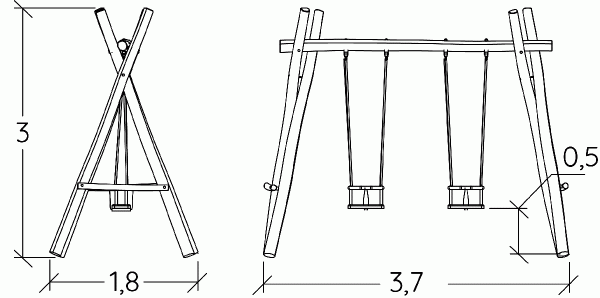

The size of the module is: 3.70 m length, 1.80 m width, 3.00 m. high. The free fall height (FFH) is 1.50 m.

3 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	1+
Number of users:	2 users
FFH :	1.50 m
Size:	3.70 x 1.80 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.11 m3

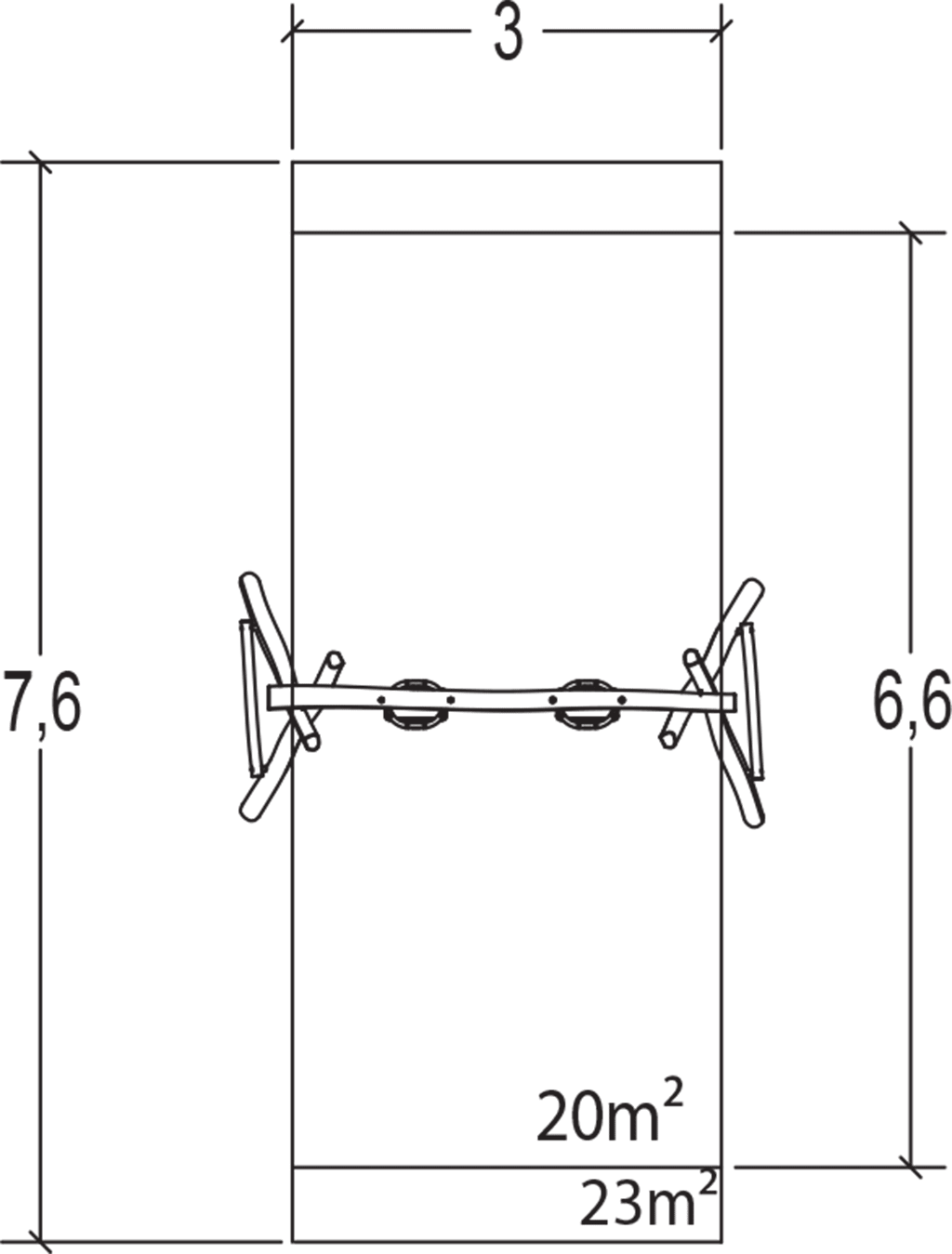

Surface:	20.00 m2
Total weight:	239.81 kg
Weight of the heaviest element:	42.90 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts and the horizontal beam (diameter 120 to 140mm), are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
