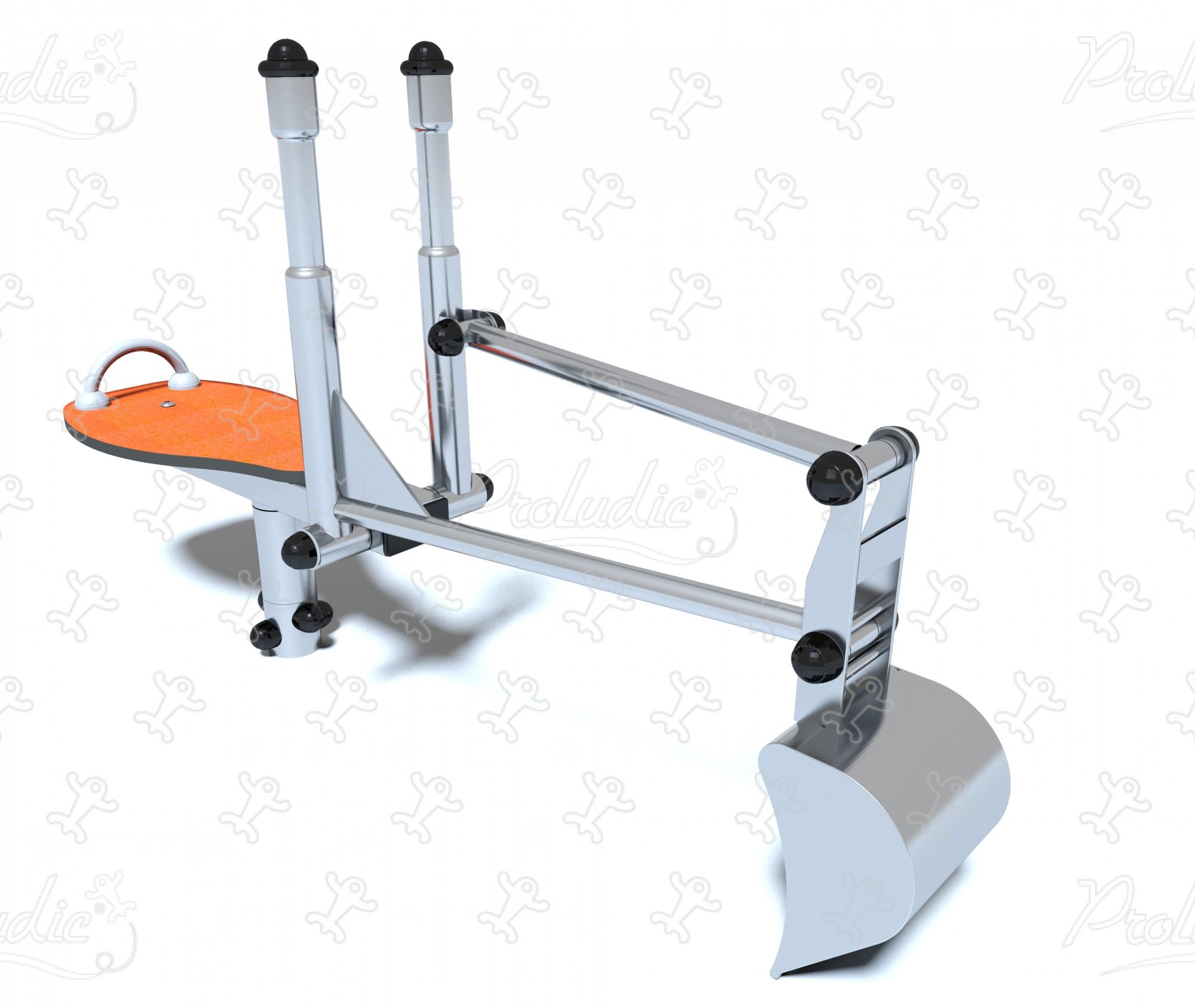

Sand play - Sand Digger - J5014

We have created the reference J5014 in our "Sand play" range. This module is accessible from 2 years. It can accommodate up to 1 user.

The size of the module is: 1.15 m length, 0.40 m width, 0.70 m. high. The free fall height (FFH) is 0.60 m.

5 play functions

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Role play x1

Role play promotes the child's intellectual and social skills.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range:	2+
Number of users:	1 user
FFH :	0.60 m

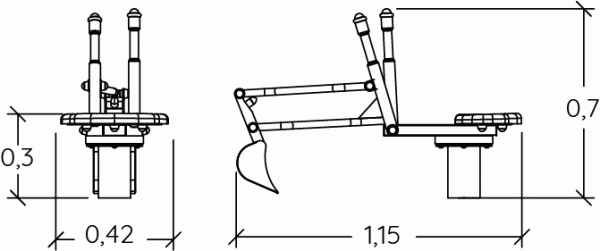

Size:	1.15 x 0.40 x 0.70 m

Equipment installation

Number of installers:	1
Installation time:	00:30:00
Concrete volume:	0.40 m3

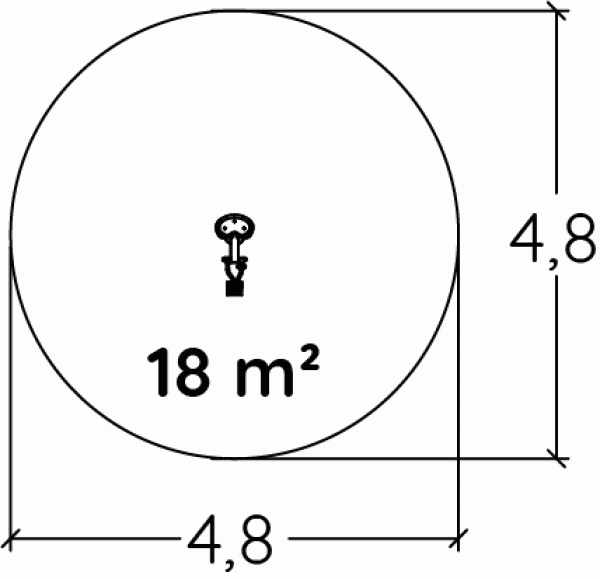

Surface:	18.00 m2
Total weight:	15.73 kg
Weight of the heaviest element:	15.70 kg

Environmental Indicators

Repairability

9.46 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The seat of the excavator is made from a 18mm thick, non-slip polyethylene material.

Metal components of the digger are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 60mm diameter post is made of stainless steel.

The handle is made of very strong polyamide plastic.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
