Balancing trails - GymLudic - J51000®

We have created the reference J51000® in our "Balancing trails" range. This module is accessible from 2 years. It can accommodate up to 20 users.

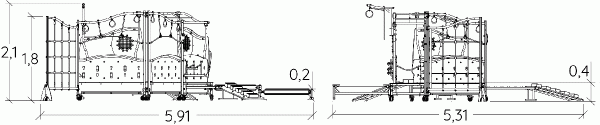

The size of the module is: 5.93 m length, 5.31 m width, 2.11 m. high. The free fall height (FFH) is 1.95 m.

8 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2 - 6
Number of users:	20 users
FFH :	1.95 m
Size:	5.93 x 5.31 x 2.11 m

Equipment installation

Installation time:	01:00:00

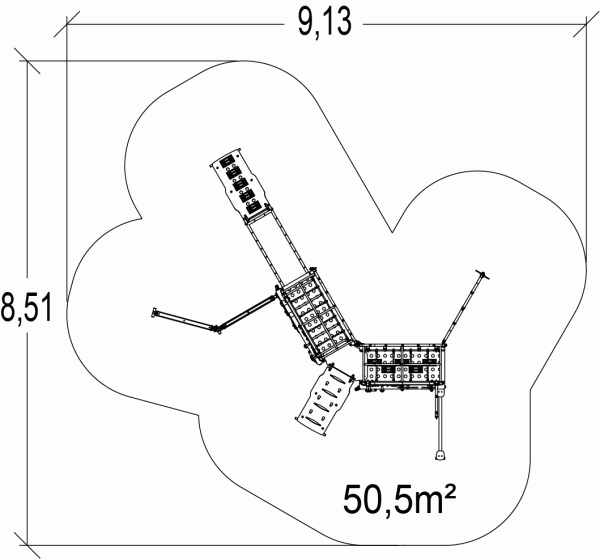

Surface:	50.50 m2
Total weight:	509.32 kg
Weight of the heaviest element:	294.30 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made of polypropylene and shatter resistant thermoplastic (PMMA).

The tubes are made of epoxy polyester lacquered aluminium (40x40, Ø 30 and Ø 40mm).

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
