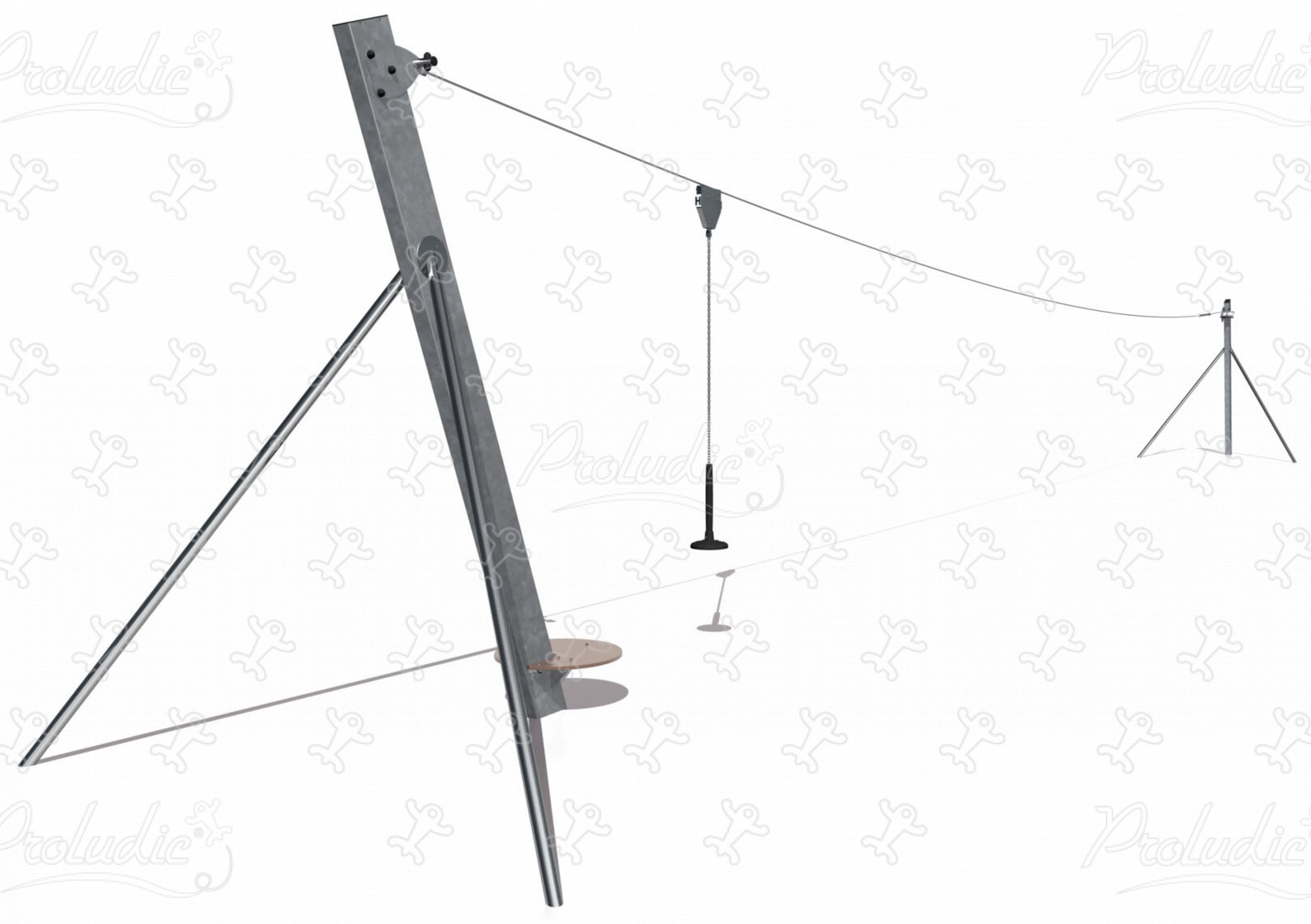

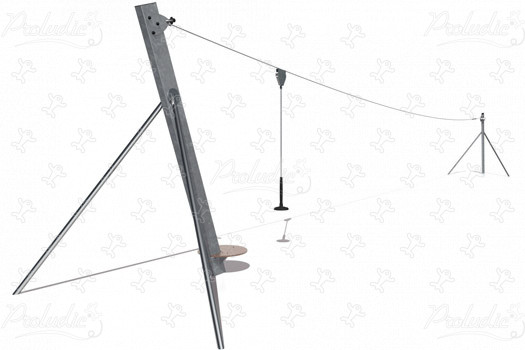

Cableways - Cableway for natural slope - J512

We have created the reference J512 in our "Cableways" range. This module is accessible from 4 years. It can accommodate up to 1 user.

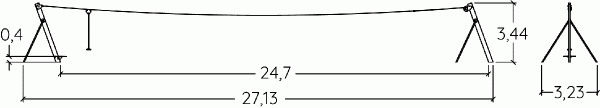

The size of the module is: 27.13 m length, 3.21 m width, 3.44 m. high. The free fall height (FFH) is 1.00 m.

Specifications

Age range:	4+
Number of users:	1 user
FFH :	1.00 m
Size:	27.13 x 3.21 x 3.44 m

Equipment installation

Number of installers:	2
Installation time:	09:00:00
Concrete volume:	3.00 m3

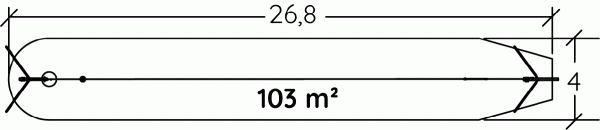

Surface:	103.00 m2
Total weight:	342.24 kg
Weight of the heaviest element:	100.00 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The cableway beams , 250x100x4mm, are made of galvanised steel with the ends covered with a polyethylene cap. The correct tension of the 10mm diameter galvanized steel... cable is easily maintained via a ratchet system. Read more

The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more

The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.
