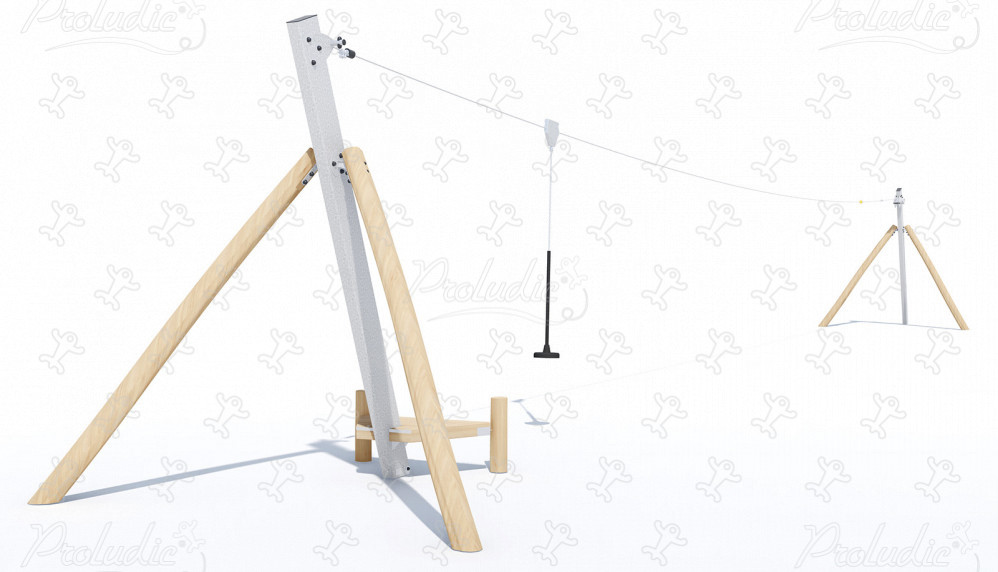

Cableways - Cableway for natural slope - J519

We have created the reference J519 in our "Cableways" range. This module is accessible from 4 years. It can accommodate up to 1 user.

The size of the module is: 27.20 m length, 4.60 m width, 3.44 m. high. The free fall height (FFH) is 1.00 m.

4 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	4+
Number of users:	1 user
FFH :	1.00 m
Size:	27.20 x 4.60 x 3.44 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	2.80 m3
Surface:	112.00 m2
Total weight:	496.30 kg
Weight of the heaviest element:	184.80 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

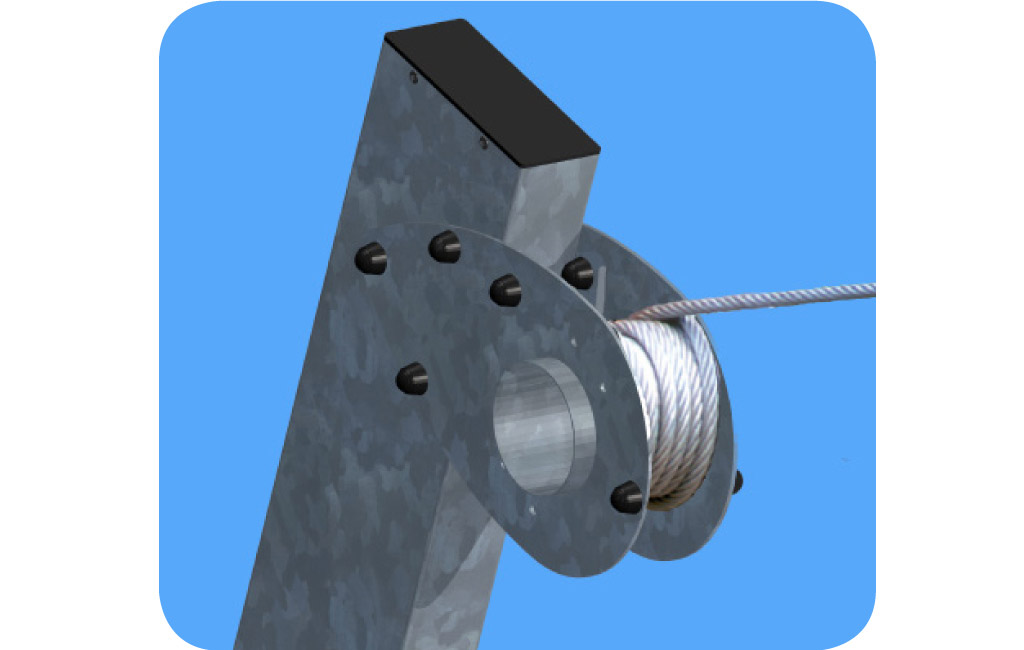

The cableway beams , 250x100x4mm, are made of galvanised steel with the ends covered with a polyethylene cap. The correct tension of the 10mm diameter galvanized steel... cable is easily maintained via a ratchet system. Read more

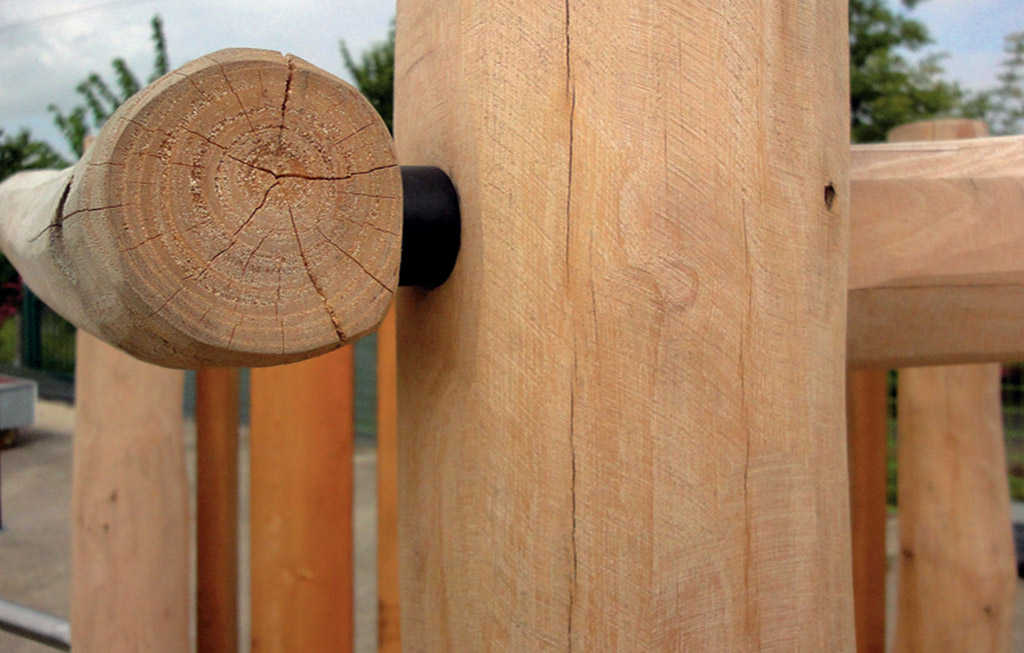

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

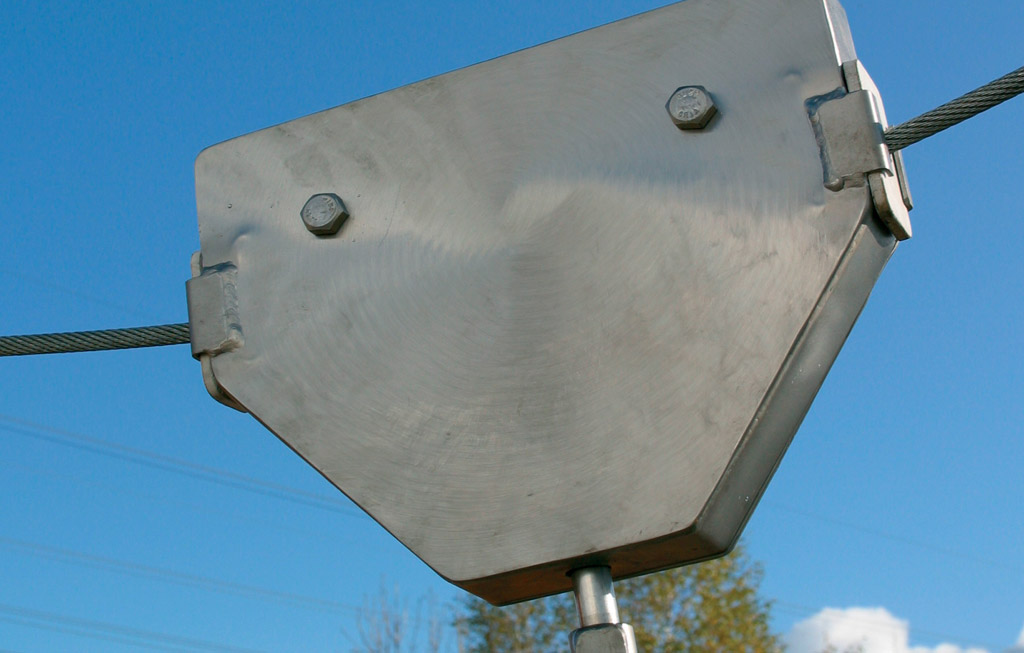

The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more

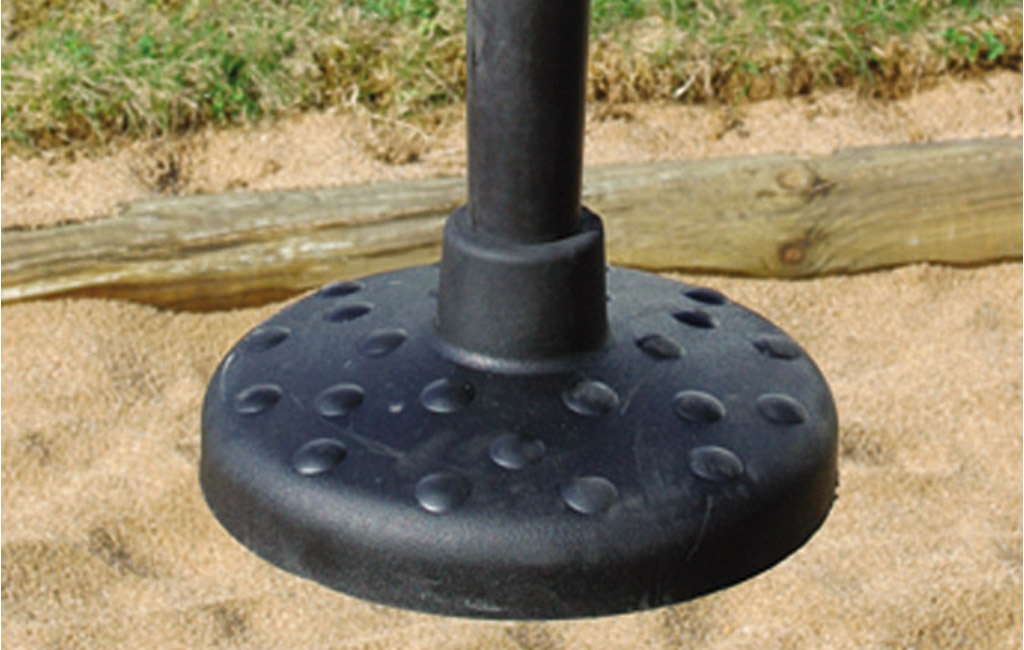

The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.

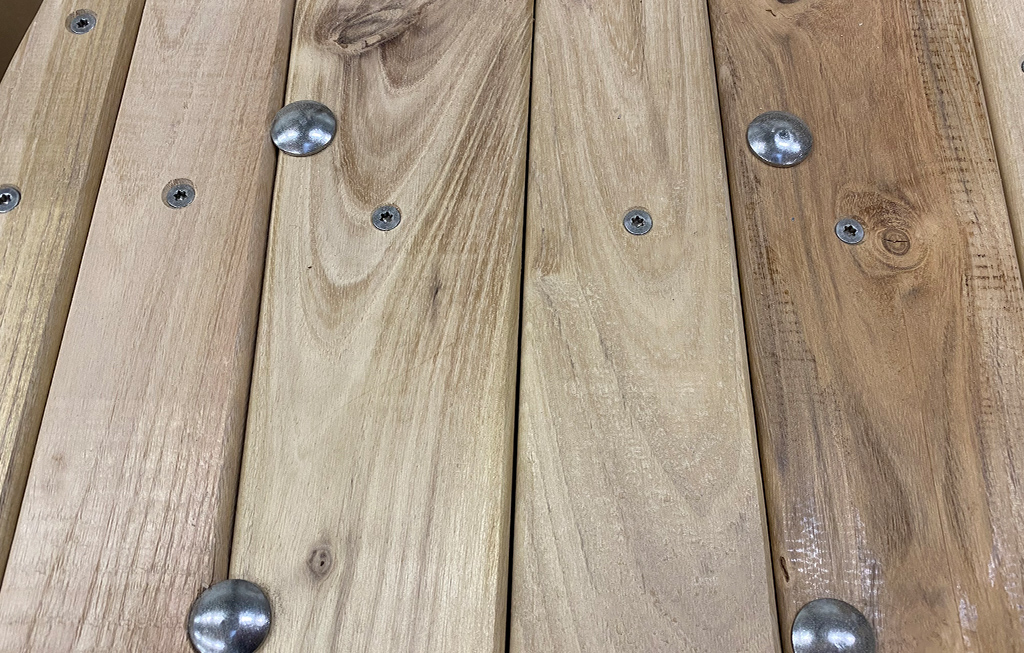

The board is made from a a 27mm thick sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require... any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
