In short

Sports Equation

Muscle stimulation

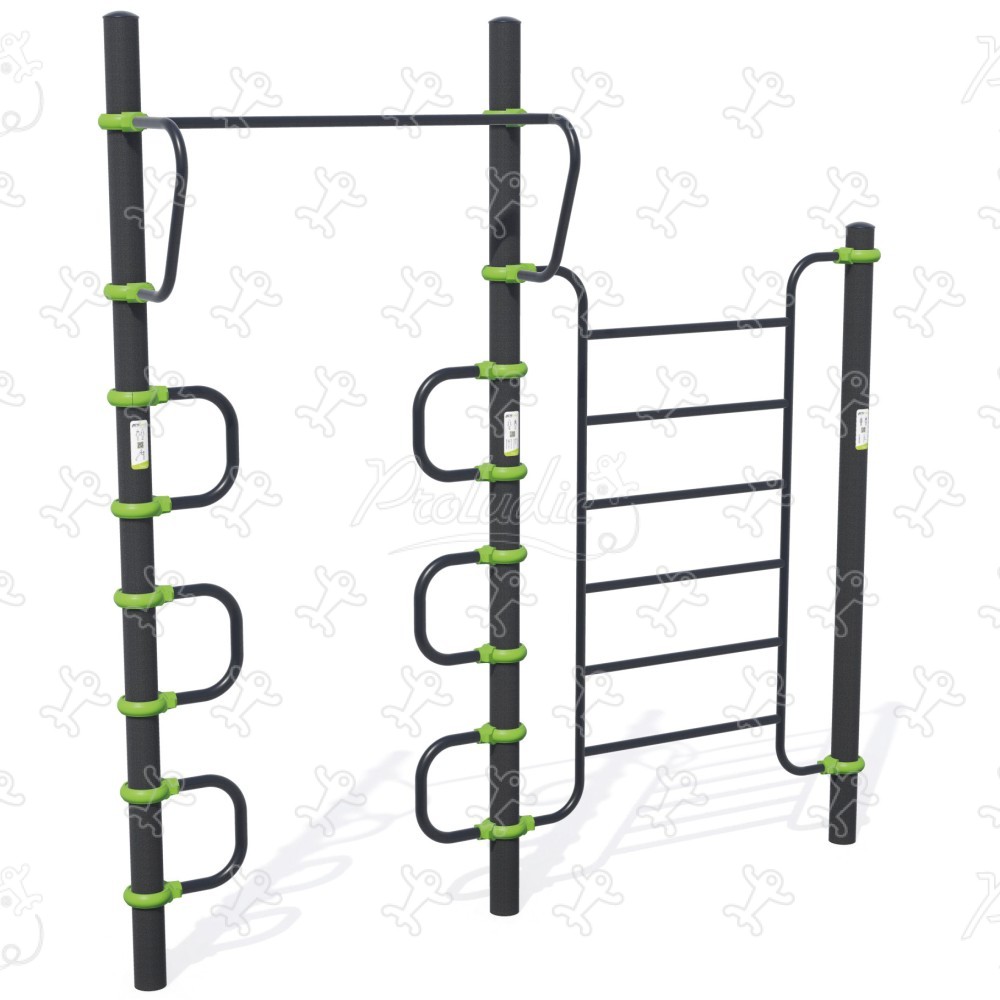

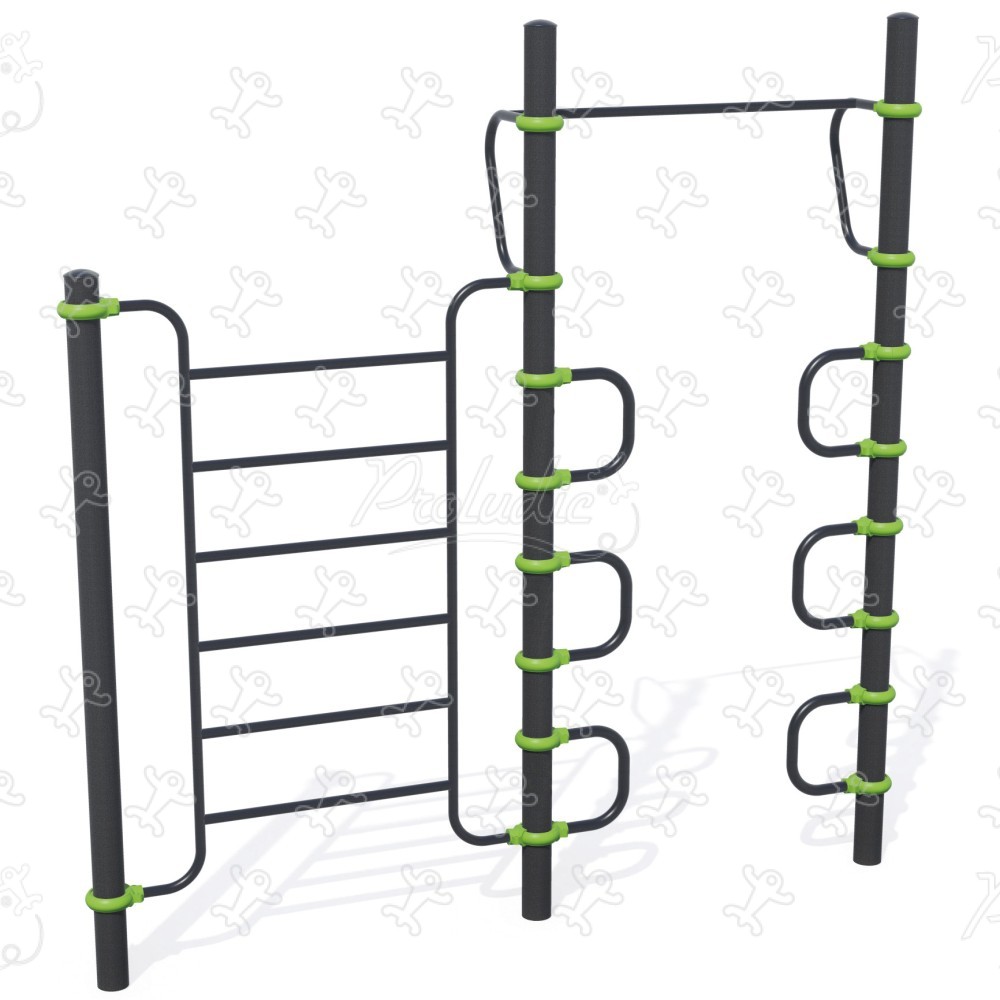

ACTI’Street - Warm-up/Stretch combination - J5234®

We have created the reference J5234® in our "ACTI’Street" range. This module is accessible from 14 years. It can accommodate up to 2 users.

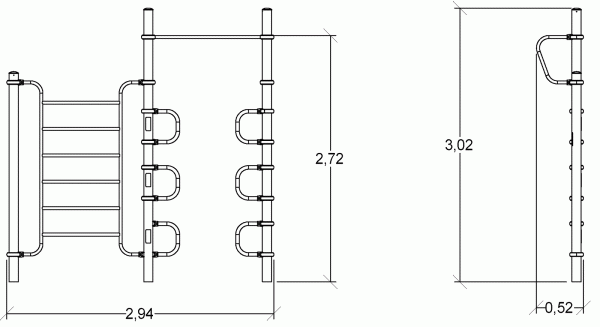

The size of the module is: 2.94 m length, 0.52 m width, 3.02 m. high. The free fall height (FFH) is 2.00 m.

8 sports activities

Hanging x2

Pull-ups x2

Push-ups x2

Squats x1

Dips x1

5 ludo-sport motivations

Application Acti'Fun

Sensations

Progressive design

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	2 users
FFH :	2.00 m
Size:	2.94 x 0.52 x 3.02 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00
Concrete volume:	0.60 m3

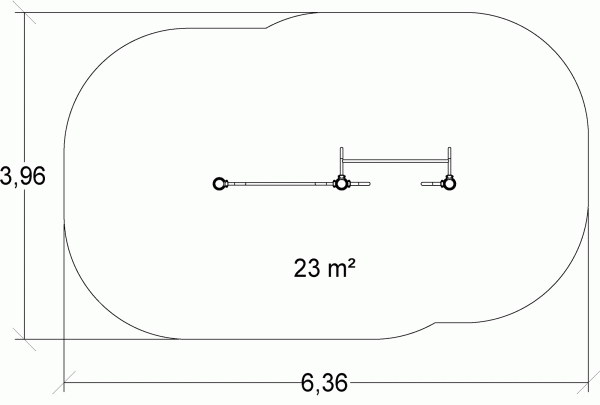

Surface:	23.00 m2
Total weight:	109.12 kg
Weight of the heaviest element:	28.02 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars are made of painted aluminium.

The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more
