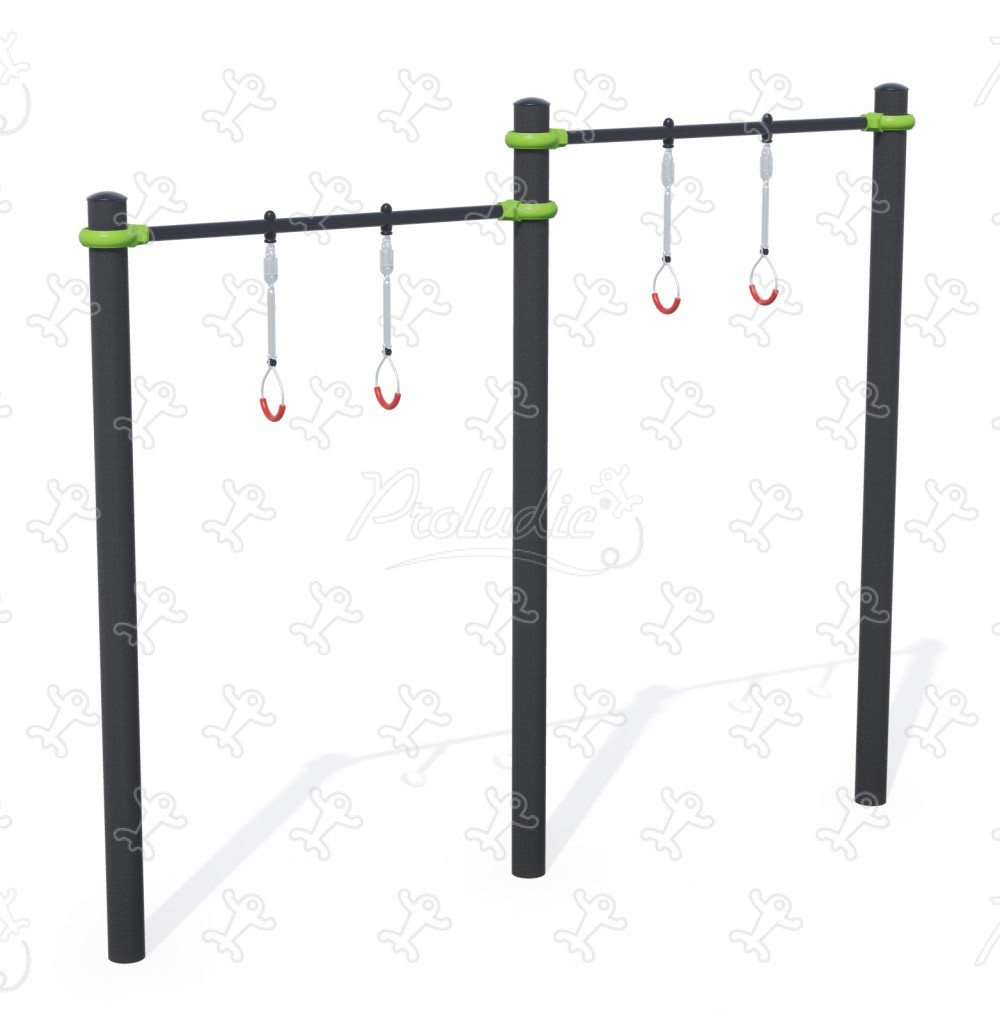

Combination with rings at two heights
J5235®
Sports Equation
Muscle stimulation
We have created the reference J5235® in our "ACTI’Street" range. This module is accessible from 14 years. It can accommodate up to 2 users.

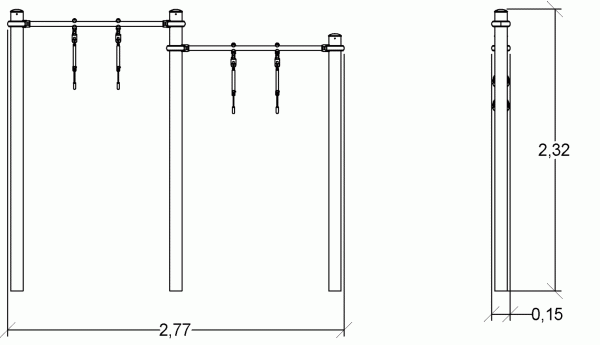

The size of the module is: 2.77 m length, 0.15 m width, 2.32 m. high. The free fall height (FFH) is 1.70 m.
| Age range: | 14+ |
| Number of users: | 2 users |
| FFH : | 1.70 m |
| Size: | 2.77 x 0.15 x 2.32 m |
| Number of installers: | 2 |
| Installation time: | 02:00:00 |
| Concrete volume: | 0.60 m3 |

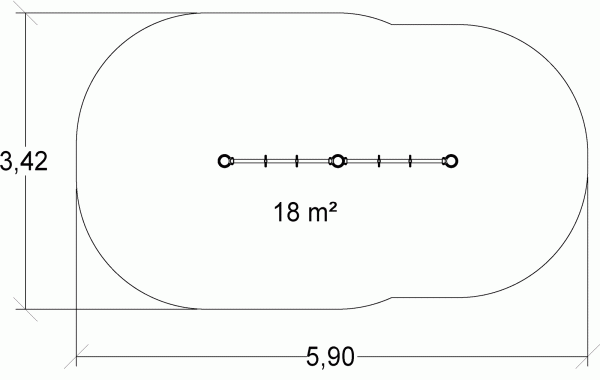

| Surface: | 18.00 m2 |
| Total weight: | 82.54 kg |
| Weight of the heaviest element: | 22.86 kg |
Repairability
8.65 /10
The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more
The fixing collars are made of painted aluminium.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The rings are made of 7mm diameter galvanised steel covered with rubber.
The chains are made of stainless steel.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
