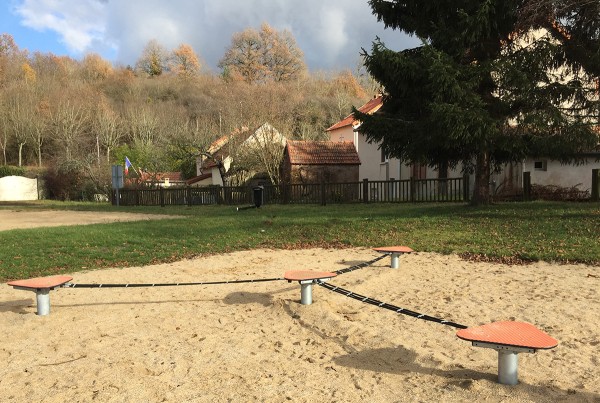

Balancing trails - Triple Slackline - J5401-M

We have created the reference J5401-M in our "Balancing trails" range. This module is accessible from 2 years. It can accommodate up to 10 users.

The size of the module is: 5.86 m length, 5.11 m width, 0.37 m. high. The free fall height (FFH) is 0.60 m.

6 play functions

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Balancing x3

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2 - 8
Number of users:	10 users
FFH :	0.60 m
Size:	5.86 x 5.11 x 0.37 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.80 m3

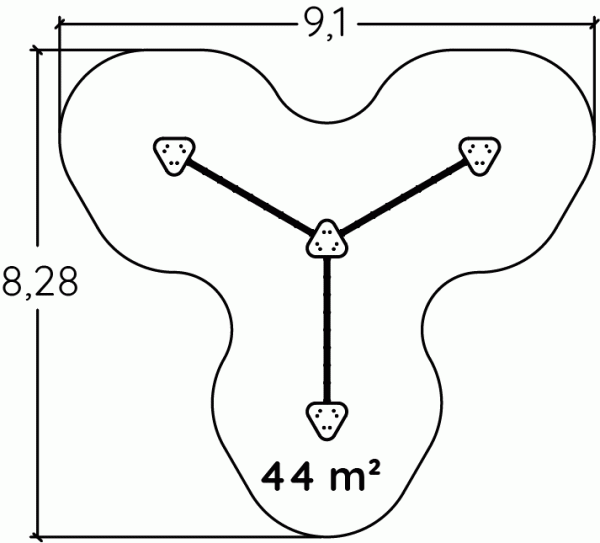

Surface:	44.00 m2
Total weight:	99.57 kg
Weight of the heaviest element:	14.20 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 115mm diameter posts are made of galvanised steel.

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
