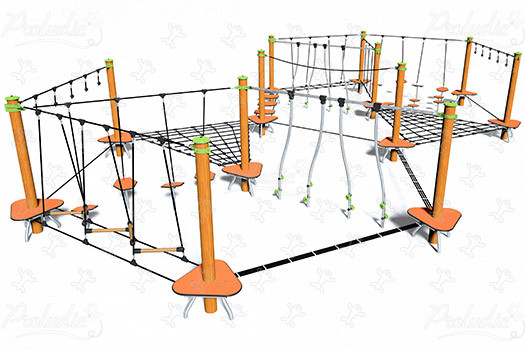

Balancing trails - J5405

We have created the reference J5405 in our "Balancing trails" range. This module is accessible from 2 years. It can accommodate up to 60 users.

The size of the module is: 6.52 m length, 11.07 m width, 1.80 m. high. The free fall height (FFH) is 0.65 m.

Other finishes available

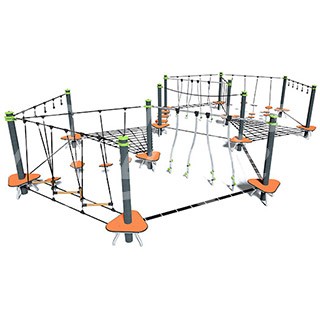

J5405-M

42 play functions

Climbing x2

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Balancing x12

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Getting across x12

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Balancing x4

Getting across x4

Jumping x1

Walking x3

Hanging x2

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2 - 8
Number of users:	60 users
FFH :	0.65 m
Size:	6.52 x 11.07 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	40:00:00
Concrete volume:	3.40 m3
Surface:	114.00 m2
Total weight:	831.36 kg
Weight of the heaviest element:	12.51 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

Injected aluminium elements are fixed on the posts with self-drilling screws to provide links between the ropes and the posts.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
