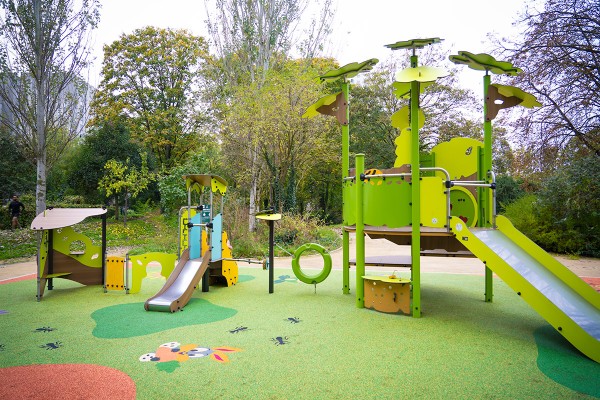

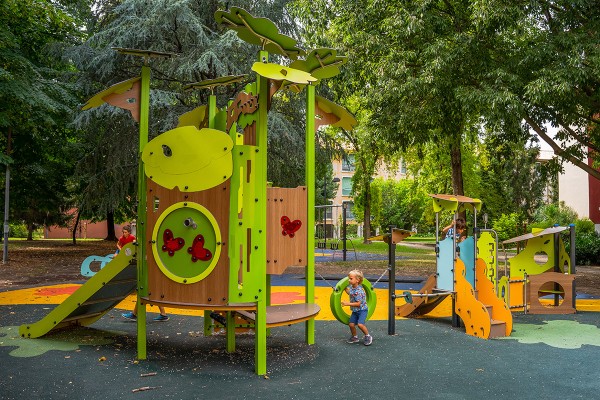

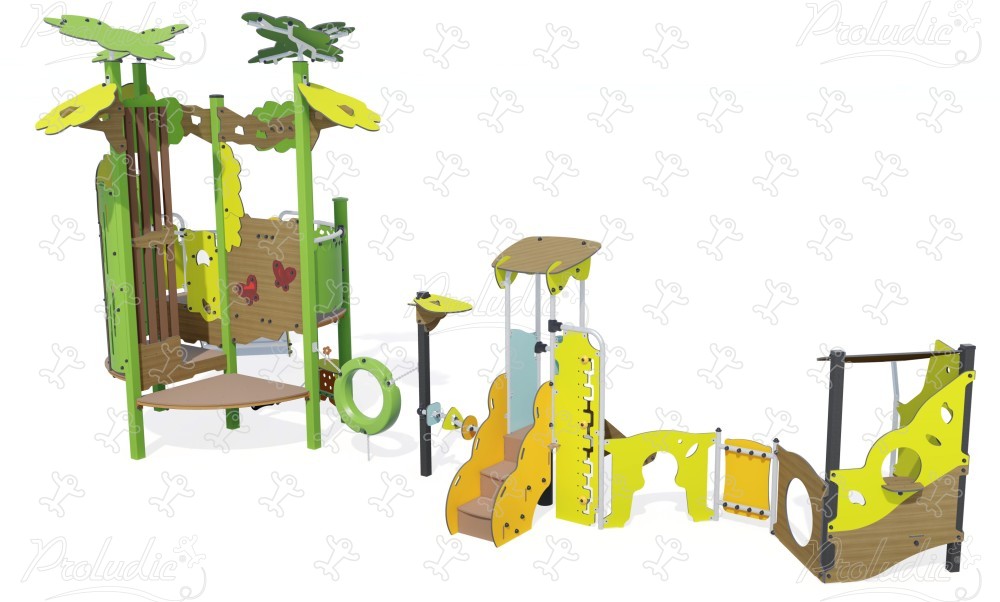

Kanopé - Ka'Yop Baby - J56001®

We have created the reference J56001® in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 42 users.

The size of the module is: 7.70 m length, 6.68 m width, 3.90 m. high. The free fall height (FFH) is 1.17 m.

55 play functions

Role play x5

Role play promotes the child's intellectual and social skills.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x4

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x6

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Swinging x2

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x3

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x4

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Sound stimulation x2

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x8

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Specifications

Age range:	2+
Number of users:	42 users
FFH :	1.17 m
Size:	7.70 x 6.68 x 3.90 m

Equipment installation

Number of installers:	2
Installation time:	25:00:00
Concrete volume:	1.40 m3

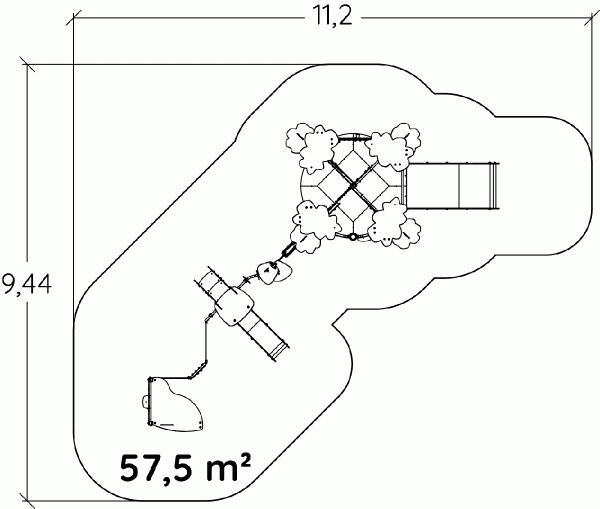

Surface:	57.50 m2
Total weight:	978.99 kg
Weight of the heaviest element:	46.43 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The decorative fence panels are made of 3mm thick painted aluminium sheets.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
