Kanopé - Ka'Yop Maxi - J56003®

We have created the reference J56003® in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 32 users.

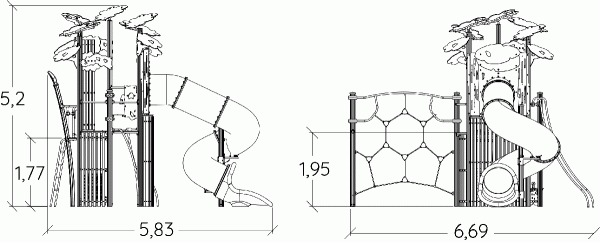

The size of the module is: 6.69 m length, 5.83 m width, 5.20 m. high. The free fall height (FFH) is 3.00 m.

Other finishes available

J56003-GA®

30 play functions

Role play x3

Role play promotes the child's intellectual and social skills.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x4

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Swinging x2

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Hiding x2

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x4

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	32 users
FFH :	3.00 m
Size:	6.69 x 5.83 x 5.20 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	1.40 m3

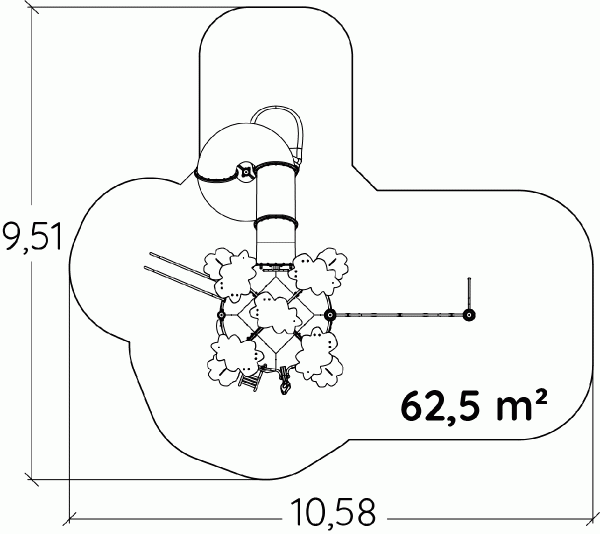

Surface:	62.50 m2
Total weight:	1243.21 kg
Weight of the heaviest element:	41.73 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The decorative fence panels are made of 3mm thick painted aluminium sheets.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing elements are made of injection moulded polyamide.

The slides are made of rotomoulded polyethylene.

The 16mm diameter rope is made of galvanised steel cable covered with polyester. The net fittings are made of polyamide.

The caps are made of rotary moulded polyethylene.

The abacus spheres are made of polycarbonate sheets.

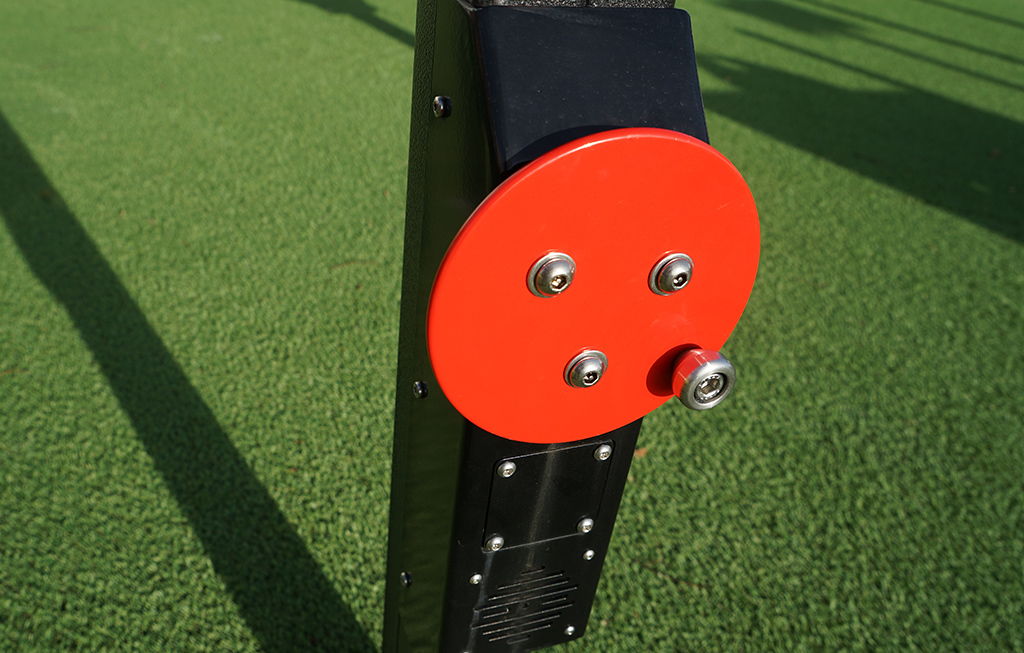

The sound generator and the wheel are made of painted steel.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
