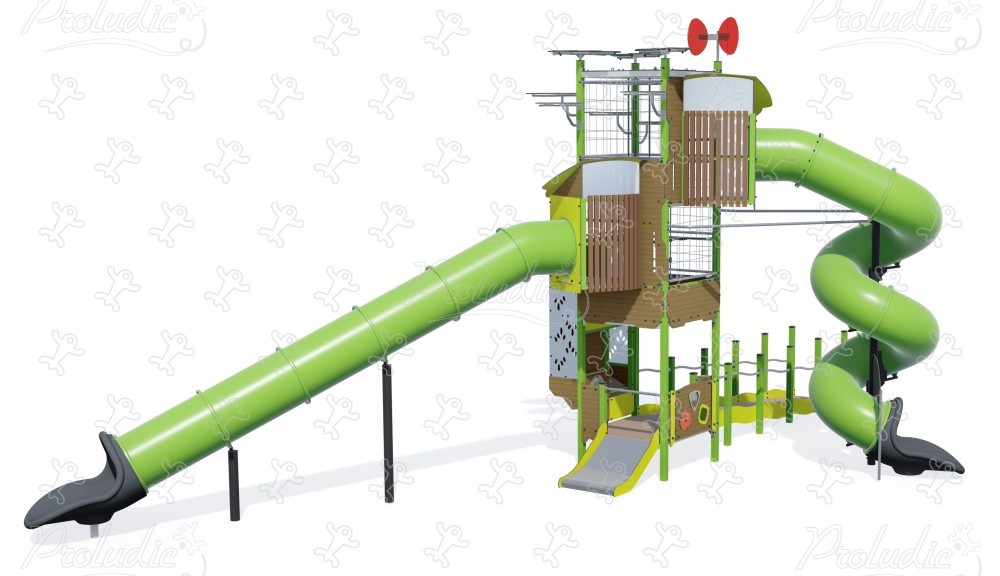

Kanopé - J56011®

We have created the reference J56011® in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 46 users.

The size of the module is: 14.49 m length, 8.97 m width, 6.86 m. high. The free fall height (FFH) is 0.57 m.

31 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Sliding x3

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Handling x3

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Tactile stimulation x3

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Hiding x3

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x4

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	46 users
FFH :	0.57 m
Size:	14.49 x 8.97 x 6.86 m

Equipment installation

Number of installers:	3
Installation time:	25:00:00
Concrete volume:	1.40 m3
Surface:	66.50 m2
Total weight:	2542.07 kg
Weight of the heaviest element:	72.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The fittings are made of polyamide and are used to link three cords together.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The footrests are made from rubber, 14mm thick.

The slides are made of rotomoulded polyethylene.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The porthole is made of shatter resistant thermoplastic (PMMA).

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
