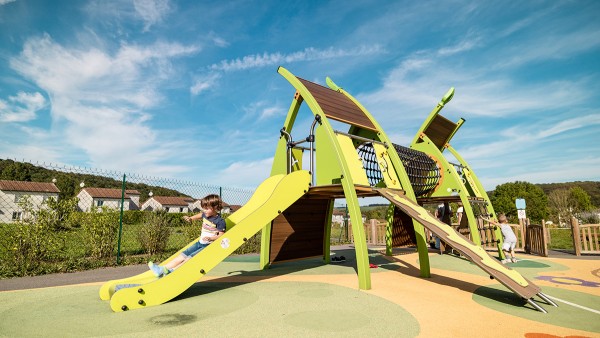

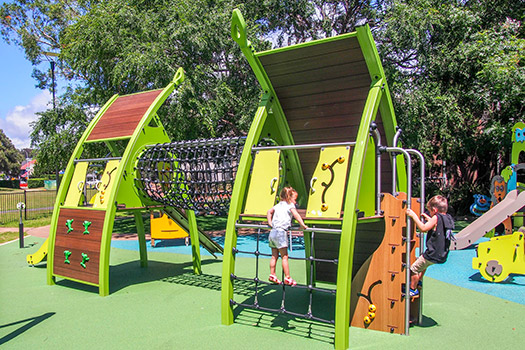

Kanopé - J5605

We have created the reference J5605 in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 20 users.

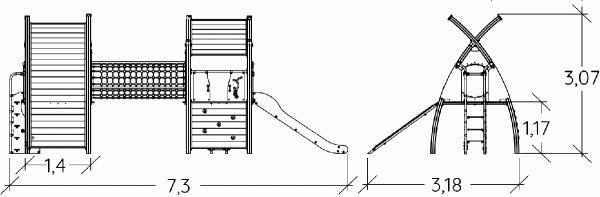

The size of the module is: 7.30 m length, 3.18 m width, 3.07 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

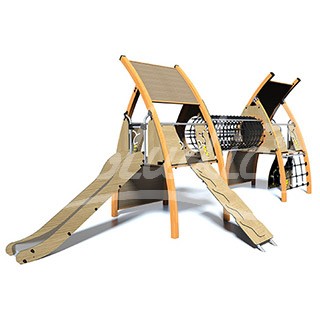

J5605-C®

26 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x4

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x2

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Role play x1

Role play promotes the child's intellectual and social skills.

Thinking x4

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x4

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2+
Number of users:	20 users
FFH :	1.17 m
Size:	7.30 x 3.18 x 3.07 m

Equipment installation

Number of installers:	2
Installation time:	16:00:00
Concrete volume:	0.50 m3

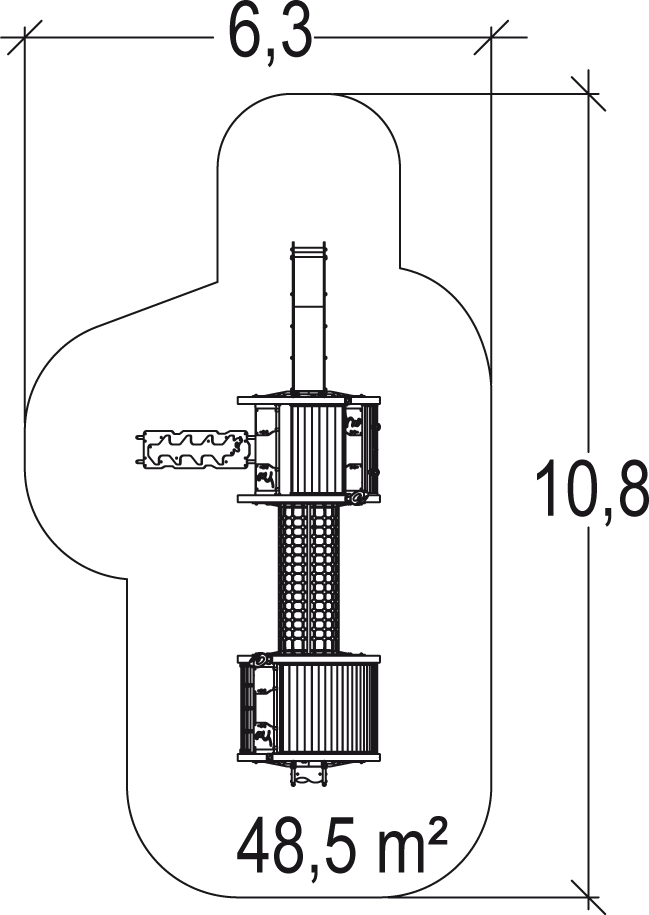

Surface:	49.00 m2
Total weight:	726.21 kg
Weight of the heaviest element:	39.47 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The blades are made of wood-plastic composites (WPCs), 95% of which is recycled plastic material (HDPE) and post-industrial wood sawdust. They are covered with a... thin decorative brown wooden layer, which makes the material resistant and waterproof, and ensures the colours do not alter over time. The planks do not require specific maintenance. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
