Kanopé
J5610
J5610

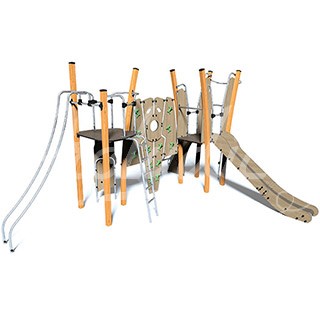

We have created the reference J5610 in our "Kanopé" range. This module is accessible from 3 years. It can accommodate up to 23 users.
The size of the module is: 6.20 m length, 4.20 m width, 3.50 m. high. The free fall height (FFH) is 2.38 m.
| Age range: | 3+ |
| Number of users: | 23 users |
| FFH : | 2.38 m |

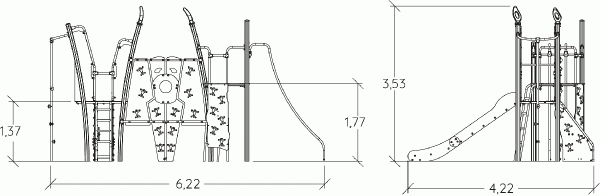

| Size: | 6.20 x 4.20 x 3.50 m |
| Number of installers: | 2 |
| Installation time: | 18:00:00 |
| Concrete volume: | 0.50 m3 |

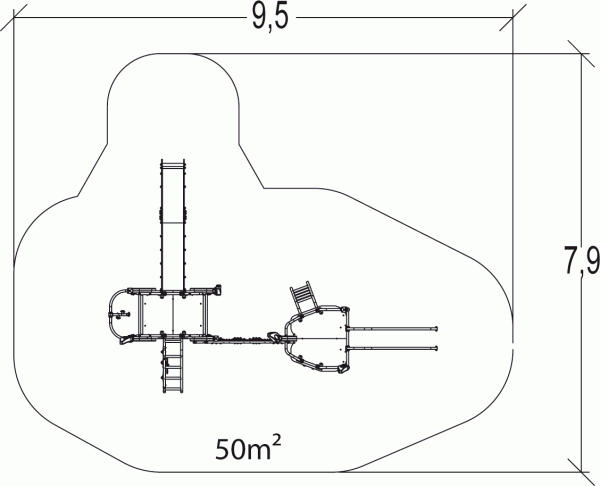

| Surface: | 51.00 m2 |
| Total weight: | 547.25 kg |
| Weight of the heaviest element: | 26.78 kg |
Repairability
9.48 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The caps are made of rotary moulded polyethylene.
The climbing holds are made of polyamide for its strength and rigidity.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
