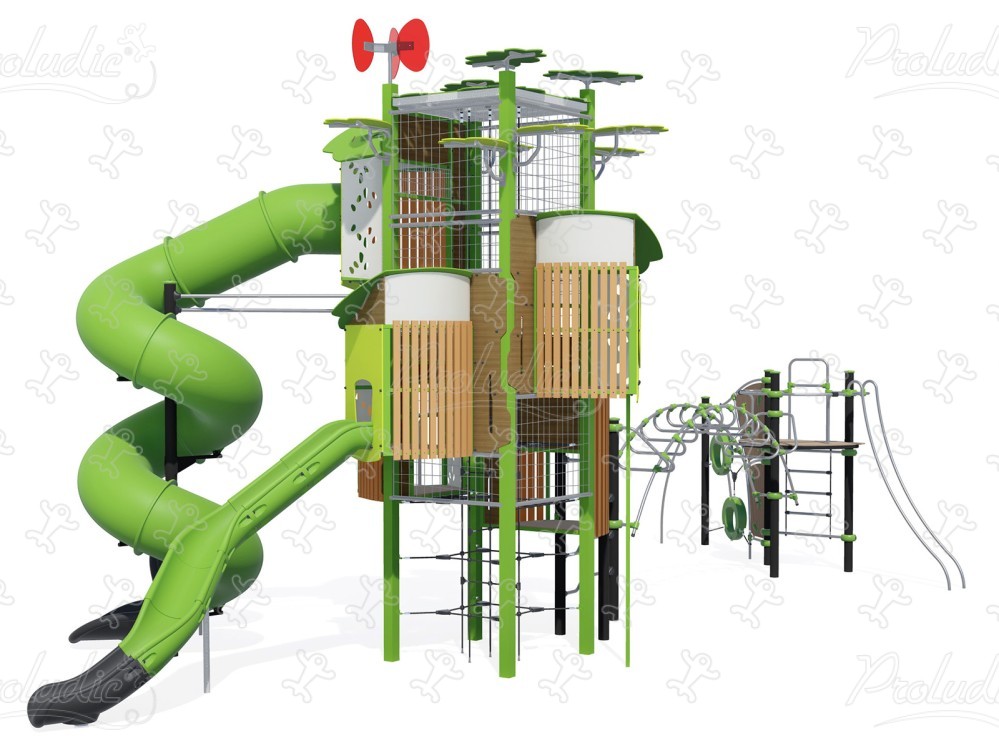

Kanopé - Tower with Ixo - J56104

We have created the reference J56104 in our "Kanopé" range. This module is accessible from 5 years. It can accommodate up to 44 users.

The size of the module is: 15.98 m length, 6.99 m width, 6.86 m. high. The free fall height (FFH) is 2.87 m.

37 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x4

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x7

Resting allows the child to recover from their exertions, and also improve their concentration.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Hiding x4

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x5

Finding a small refuge to shelter in ensures children have a space of their own.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	5+
Number of users:	44 users
FFH :	2.87 m

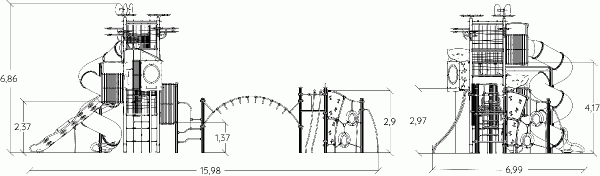

Size:	15.98 x 6.99 x 6.86 m

Equipment installation

Number of installers:	3
Installation time:	45:00:00
Concrete volume:	1.50 m3

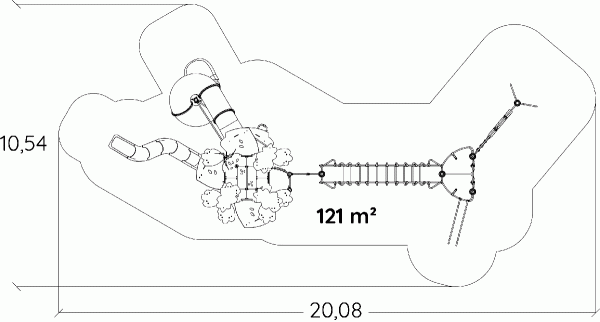

Surface:	121.00 m2
Total weight:	2902.79 kg
Weight of the heaviest element:	78.33 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The net fittings are made of polyamide and are used to link three cords together.

The footrests are made from rubber, 14mm thick.

The slides are made of rotomoulded polyethylene.

The porthole is made from 8mm thick methacrylate (PMMA).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
