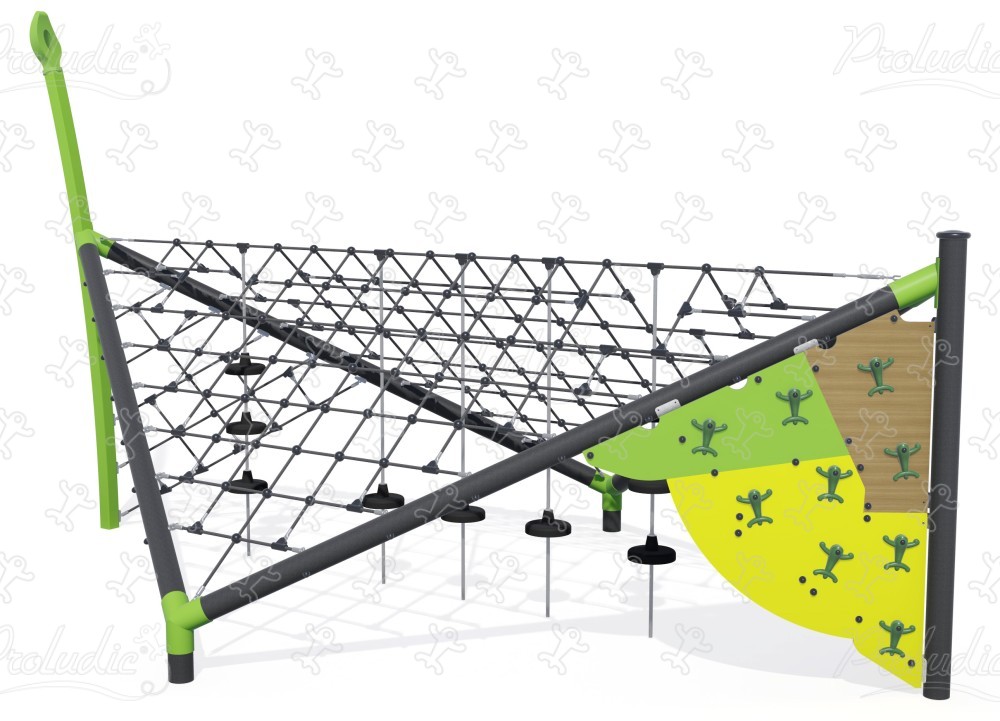

Climbing equipment - J57006

We have created the reference J57006 in our "Climbing equipment" range. This module is accessible from 3 years. It can accommodate up to 20 users.

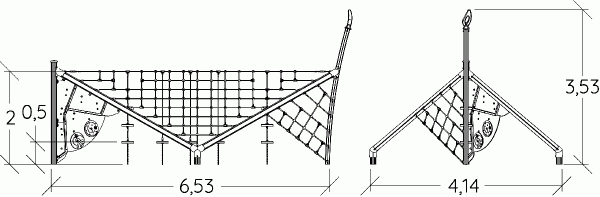

The size of the module is: 6.53 m length, 4.14 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

16 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	3+
Number of users:	20 users
FFH :	2.00 m
Size:	6.53 x 4.14 x 3.53 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	1.00 m3

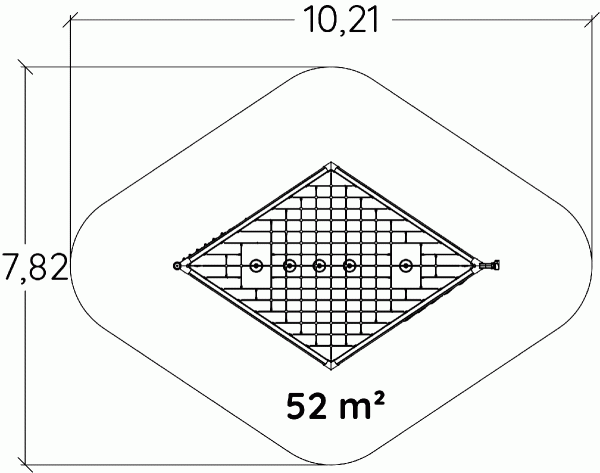

Surface:	52.00 m2
Total weight:	231.99 kg
Weight of the heaviest element:	33.57 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps are made of rotary moulded polyethylene.

The junction pieces are made of painted galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
