Climbing equipment - J57007

We have created the reference J57007 in our "Climbing equipment" range. This module is accessible from 3 years. It can accommodate up to 22 users.

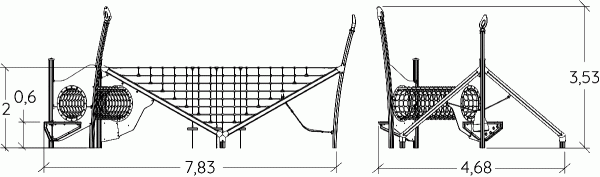

The size of the module is: 7.83 m length, 4.64 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

14 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x5

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	22 users
FFH :	2.00 m
Size:	7.83 x 4.64 x 3.53 m

Equipment installation

Number of installers:	2
Installation time:	11:30:00
Concrete volume:	0.90 m3
Surface:	62.00 m2
Total weight:	380.78 kg
Weight of the heaviest element:	39.47 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps are made of rotary moulded polyethylene.

The junction pieces are made of painted galvanised steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The steps are made with a non-slip rubber overmould.

The seat is made from rubber, 13mm thick.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
