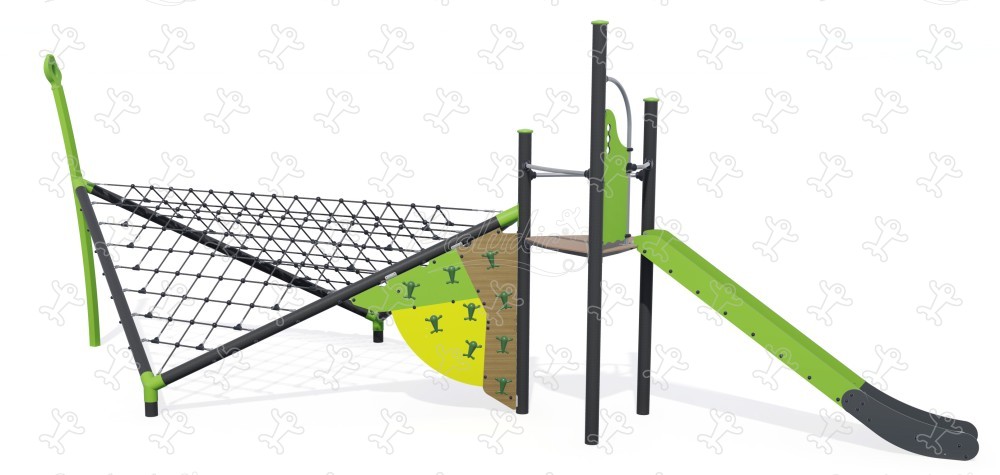

Climbing equipment - J57011®

We have created the reference J57011® in our "Climbing equipment" range. This module is accessible from 3 years. It can accommodate up to 15 users.

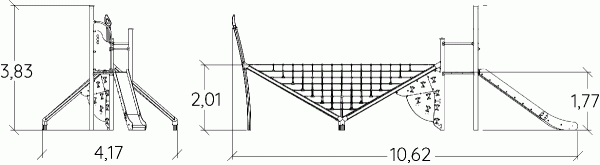

The size of the module is: 10.62 m length, 4.17 m width, 3.83 m. high. The free fall height (FFH) is 2.00 m.

6 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	15 users
FFH :	2.00 m
Size:	10.62 x 4.17 x 3.83 m

Equipment installation

Number of installers:	2
Installation time:	11:00:00
Concrete volume:	0.80 m3

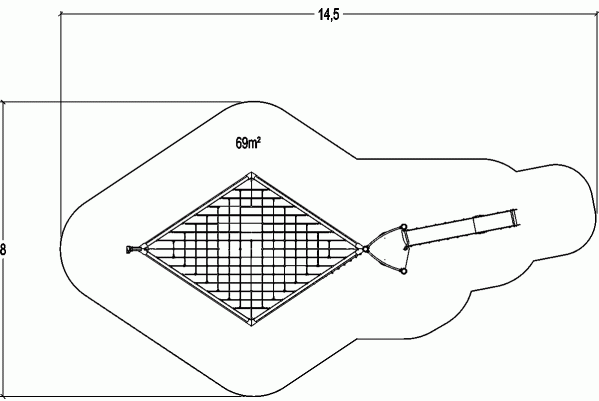

Surface:	69.00 m2
Total weight:	351.02 kg
Weight of the heaviest element:	33.65 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The junction pieces are made of painted galvanised steel.

The caps are made of rotary moulded polyethylene.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
