Climbing equipment - J57012-C

We have created the reference J57012-C in our "Climbing equipment" range. This module is accessible from 3 years. It can accommodate up to 48 users.

The size of the module is: 15.73 m length, 5.47 m width, 3.81 m. high. The free fall height (FFH) is 2.35 m.

Other finishes available

J57012®

21 play functions

Climbing x4

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	48 users
FFH :	2.35 m

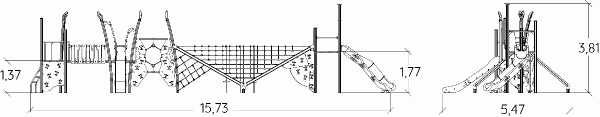

Size:	15.73 x 5.47 x 3.81 m

Equipment installation

Number of installers:	3
Installation time:	28:00:00
Concrete volume:	1.00 m3

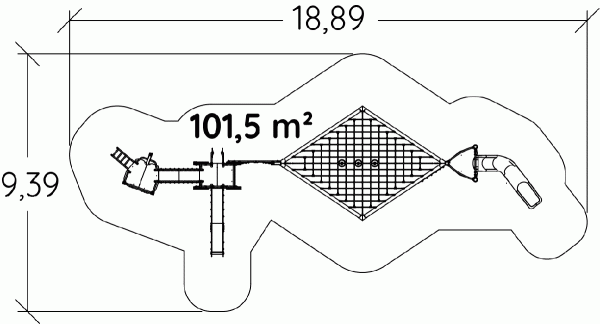

Surface:	101.50 m2
Total weight:	940.02 kg
Weight of the heaviest element:	33.65 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The junction pieces are made of painted galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
