Suspended rolls
J5919®
Sports Equation

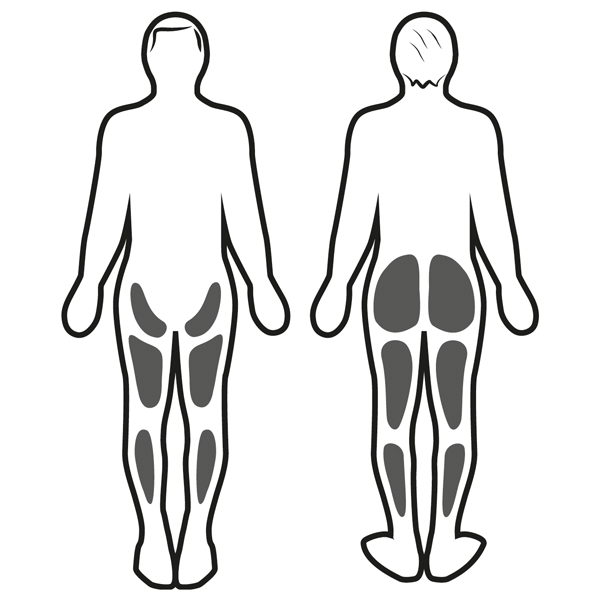

Muscle stimulation

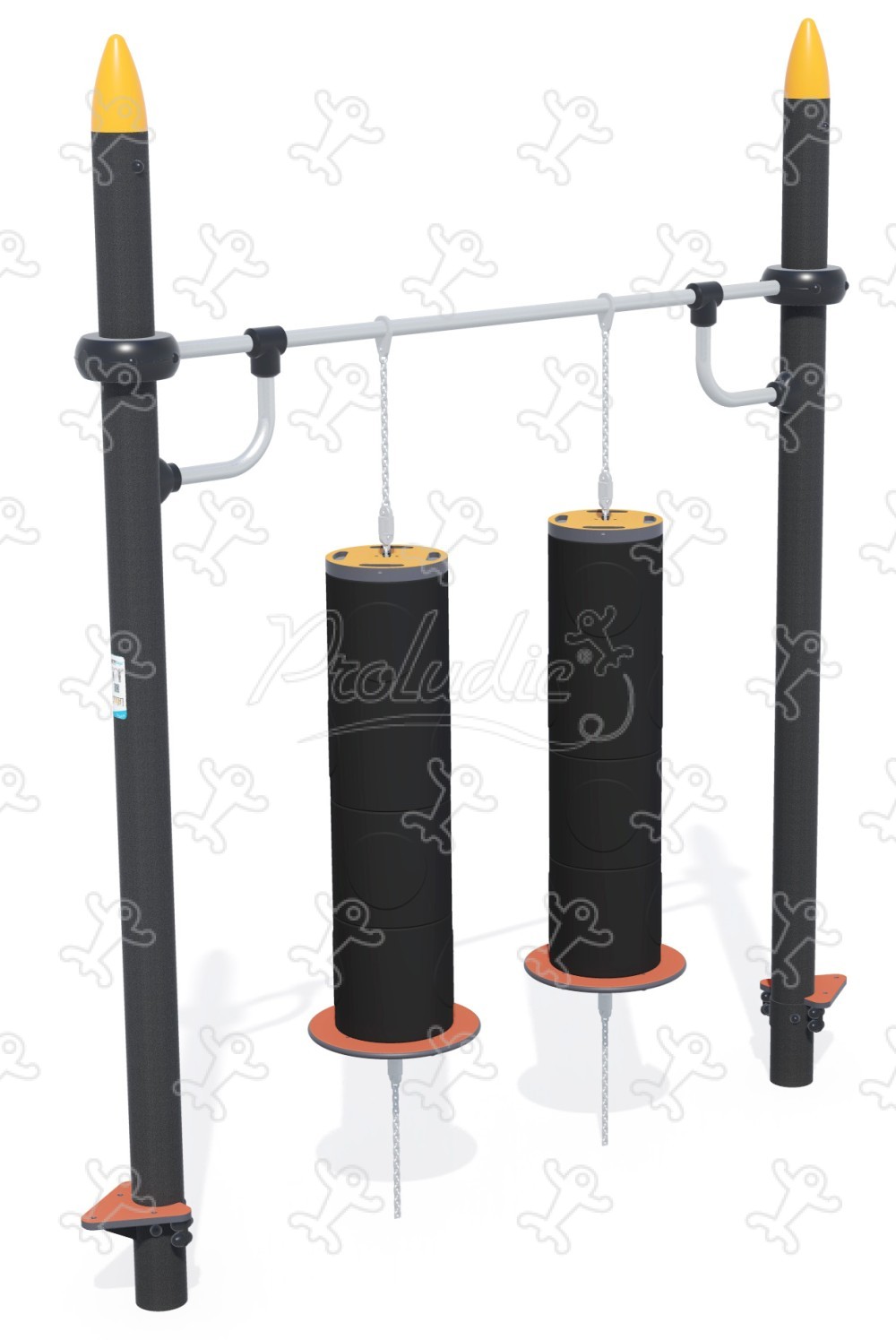

We have created the reference J5919® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 4 users.
The size of the module is: 2.63 m length, 0.44 m width, 3.01 m. high. The free fall height (FFH) is 0.60 m.
| Minimum size: | > 1.40 m |
| Number of users: | 4 users |
| FFH : | 0.60 m |
| Size: | 2.63 x 0.44 x 3.01 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.21 m3 |
| Surface: | 17.50 m2 |
| Total weight: | 289.03 kg |
| Weight of the heaviest element: | 107.02 kg |
Repairability
8.65 /10
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The rolls are made of polyurethane foam.
The chains are made of stainless steel.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The steps and footrests are made from a 18mm thick, non-slip polyethylene material.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
