Challenge Ninja trail

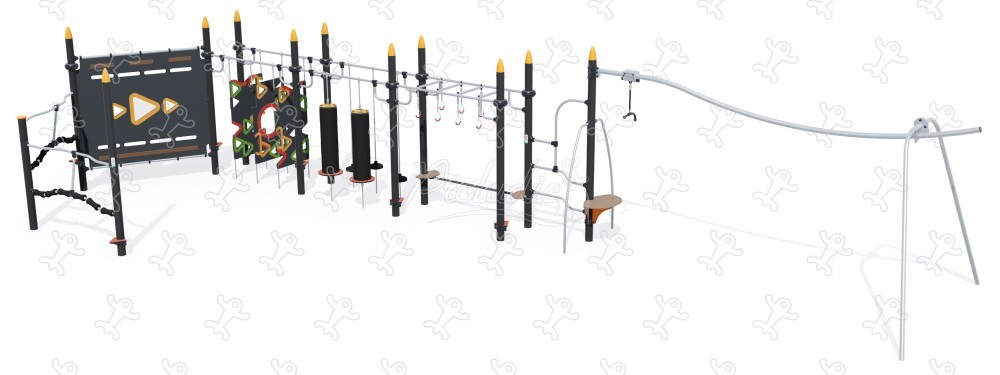

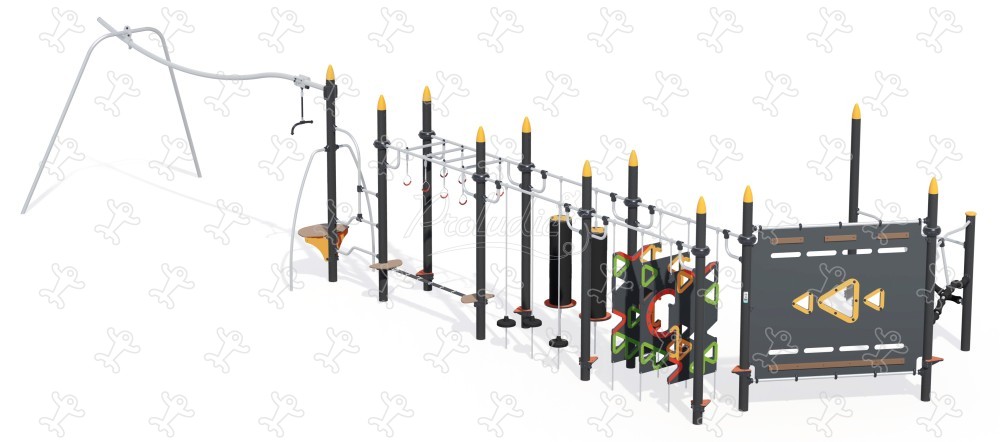

J5923®
We have created the reference J5923® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 25 users.

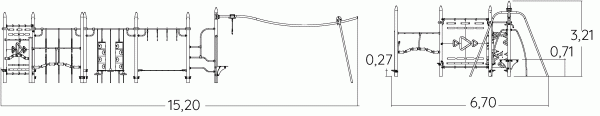

The size of the module is: 15.25 m length, 6.72 m width, 3.01 m. high. The free fall height (FFH) is 2.46 m.
| Minimum size: | > 1.40 m |
| Number of users: | 25 users |
| FFH : | 2.46 m |
| Size: | 15.25 x 6.72 x 3.01 m |
| Number of installers: | 2 |
| Installation time: | 15:00:00 |
| Concrete volume: | 1.20 m3 |

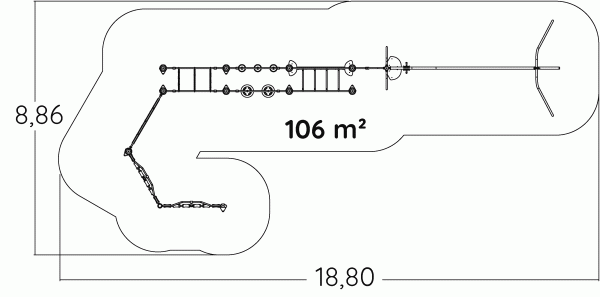

| Surface: | 106.50 m2 |
| Total weight: | 1045.63 kg |
| Weight of the heaviest element: | 107.02 kg |
Repairability
8.65 /10
The caps are made of rotary moulded polyethylene (A) or injection moulded polyamide (B).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.
The rings are made of 7mm diameter galvanised steel covered with rubber.
The chains are made of stainless steel.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The steps are made from a 18mm thick, non-slip polyethylene material.
The steps are made with a non-slip rubber overmould.
The footrests and fingerrests are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.
The footrests are made of shock-absorbing rubber with non-slip surfaces.
