Springers - Pick up - J950®

We have created the reference J950® in our "Springers" range. This module is accessible from 2 years. It can accommodate up to 10 users.

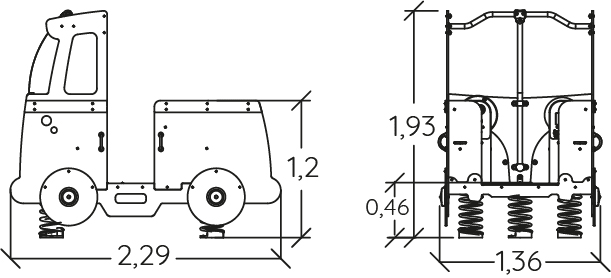

The size of the module is: 2.29 m length, 1.36 m width, 1.93 m. high. The free fall height (FFH) is 0.60 m.

10 play functions

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x2

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of users:	10 users
FFH :	0.60 m
Size:	2.29 x 1.36 x 1.93 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00

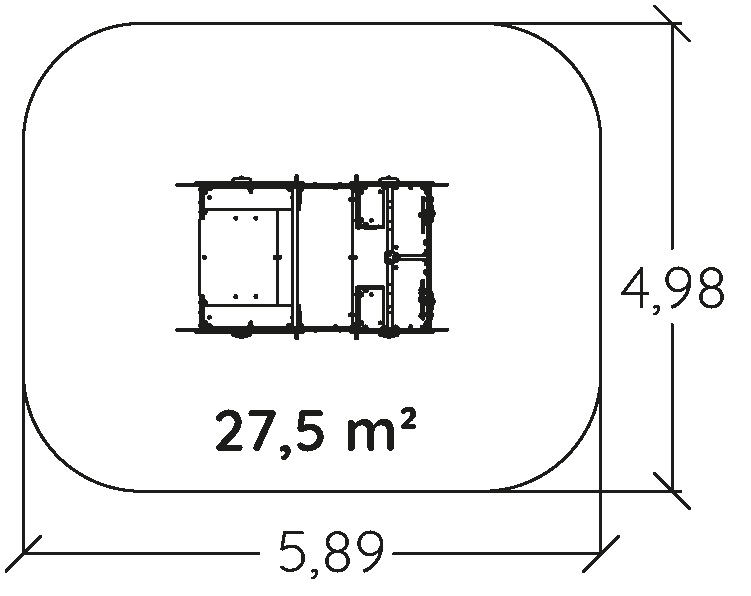

Surface:	27.50 m2
Total weight:	280.67 kg
Weight of the heaviest element:	13.57 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

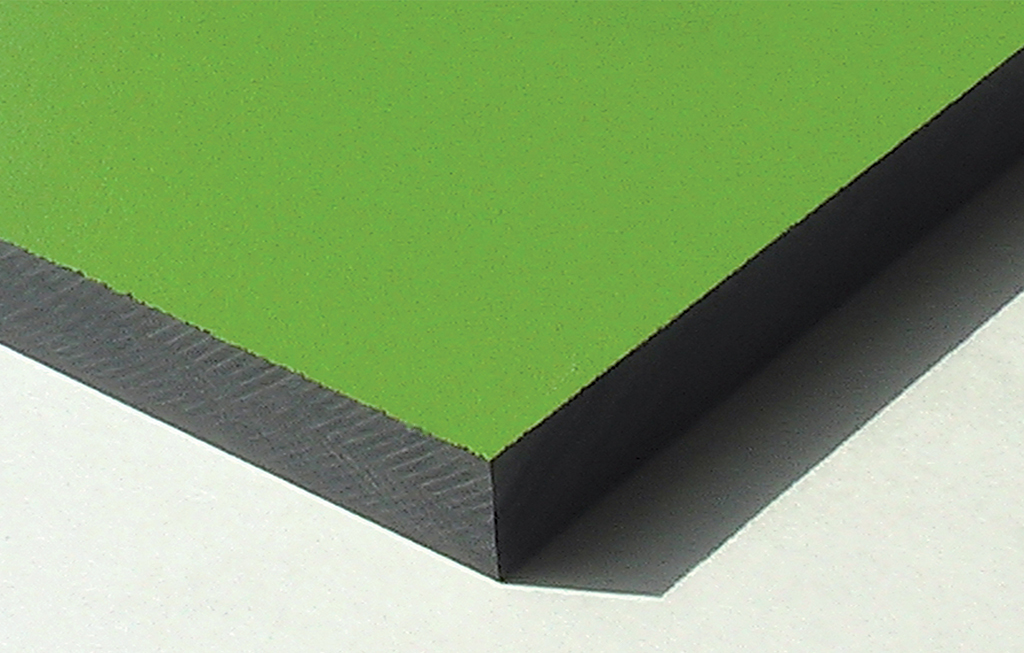

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

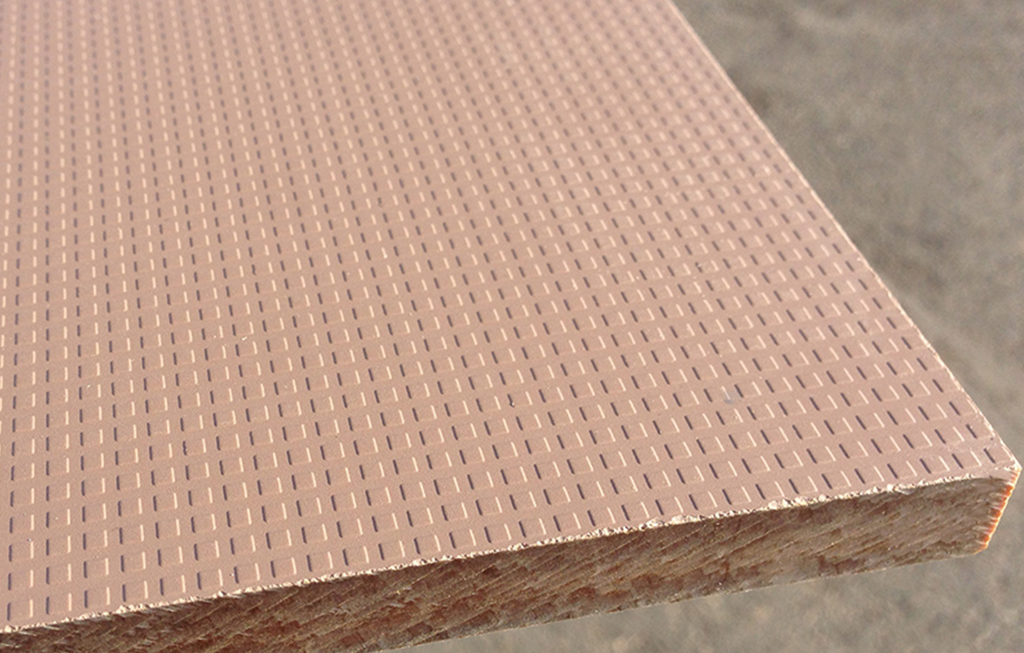

The platform and the seats are made from a 12.5mm thick textured and non-slip compact material (HPL).

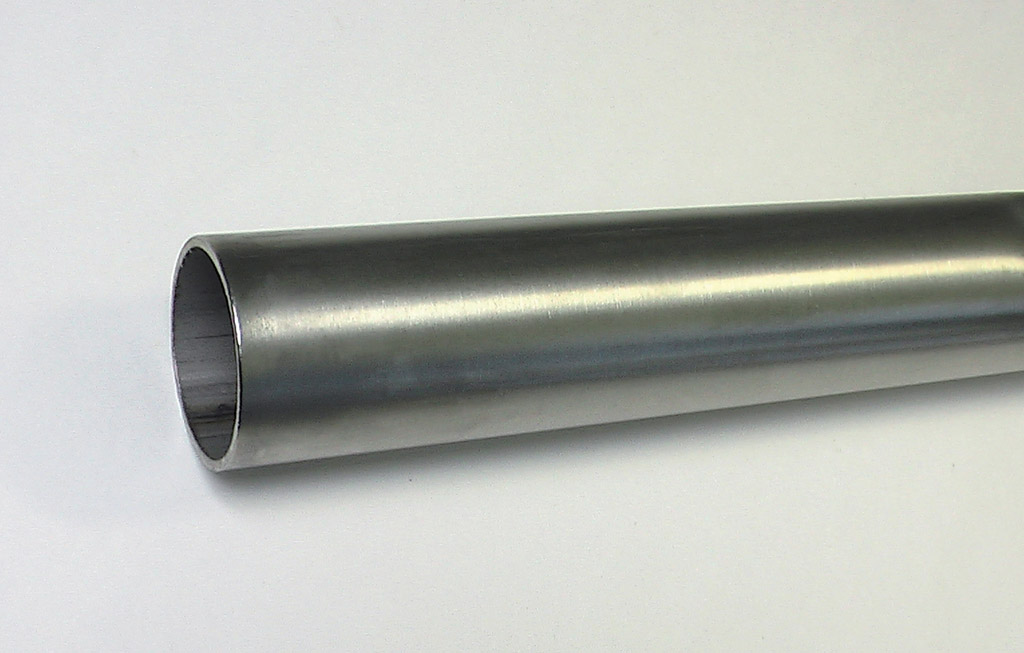

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

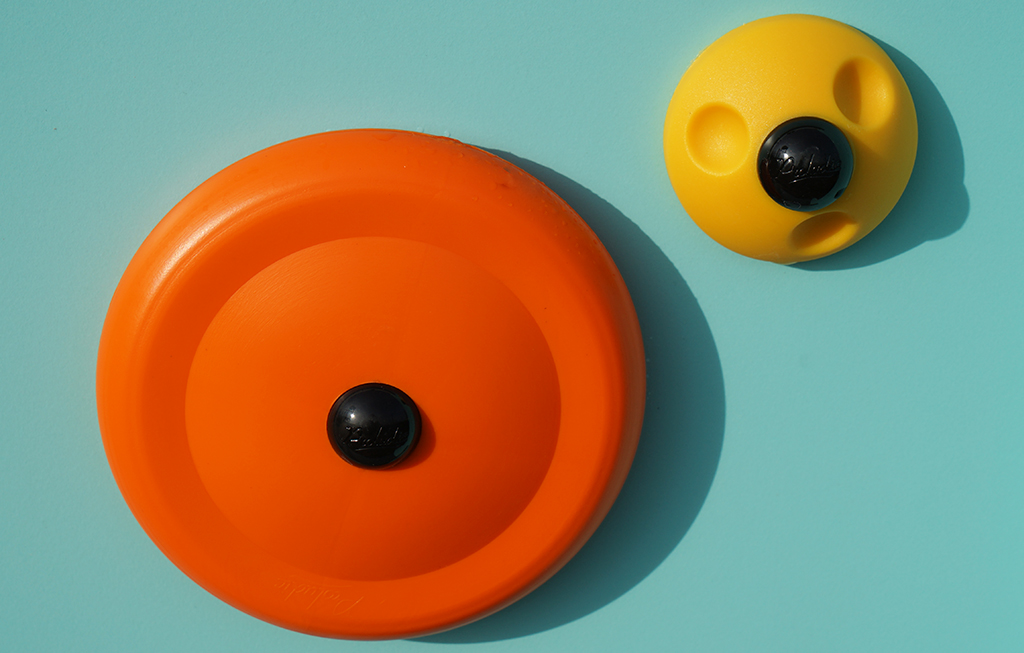

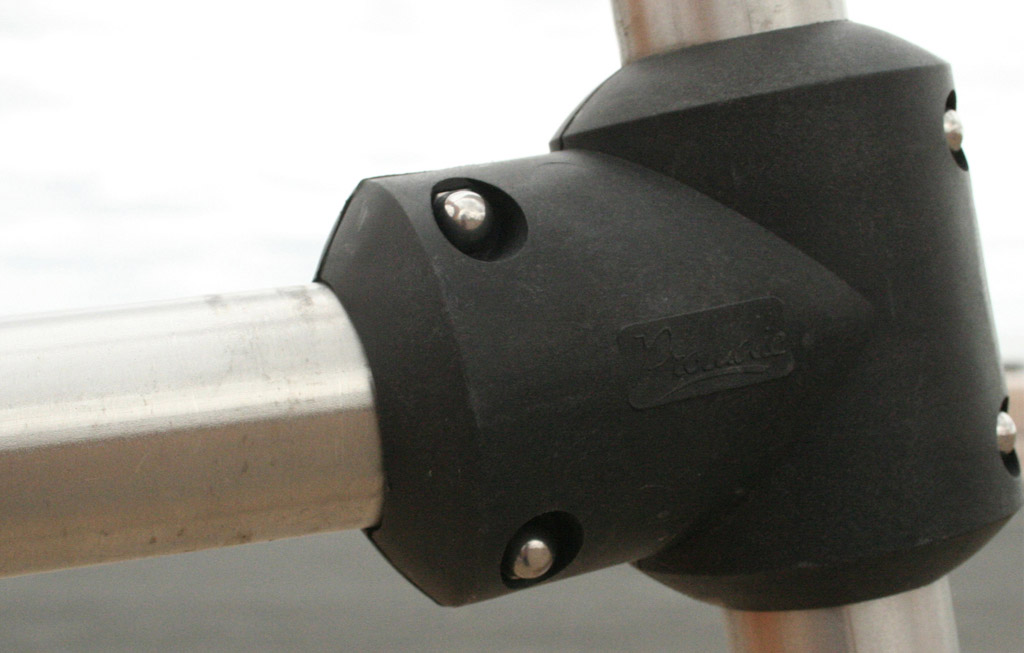

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

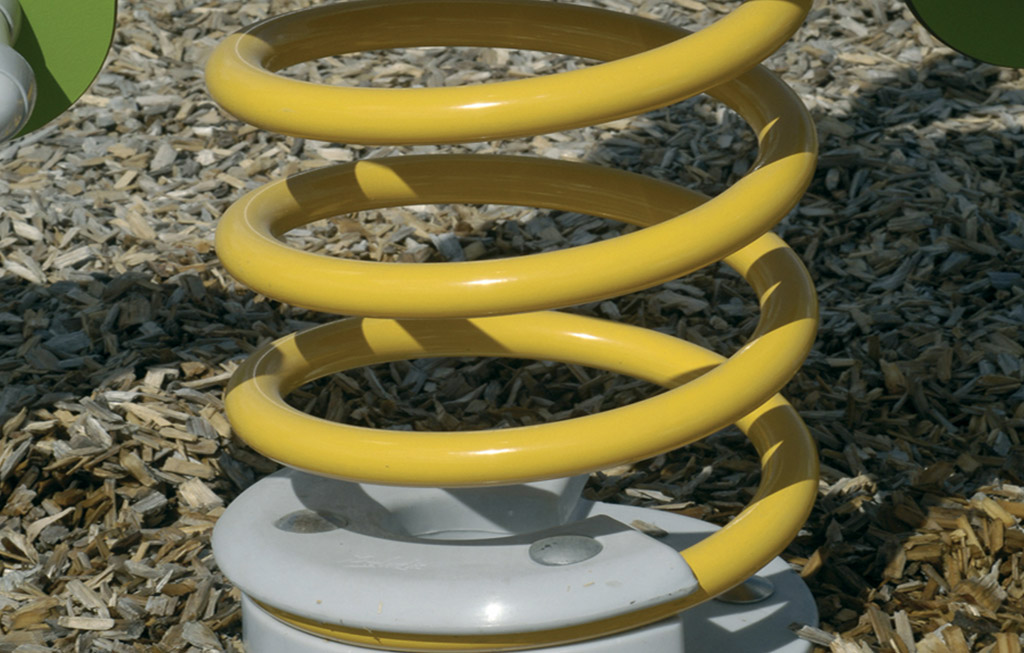

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
