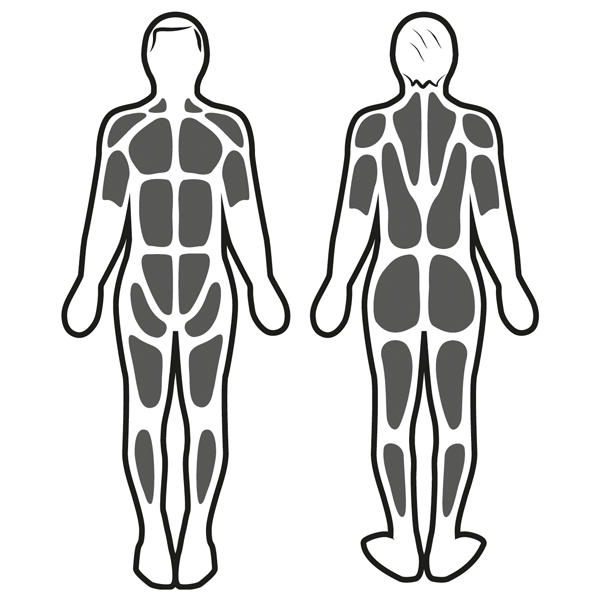

Muscle stimulation

Movement

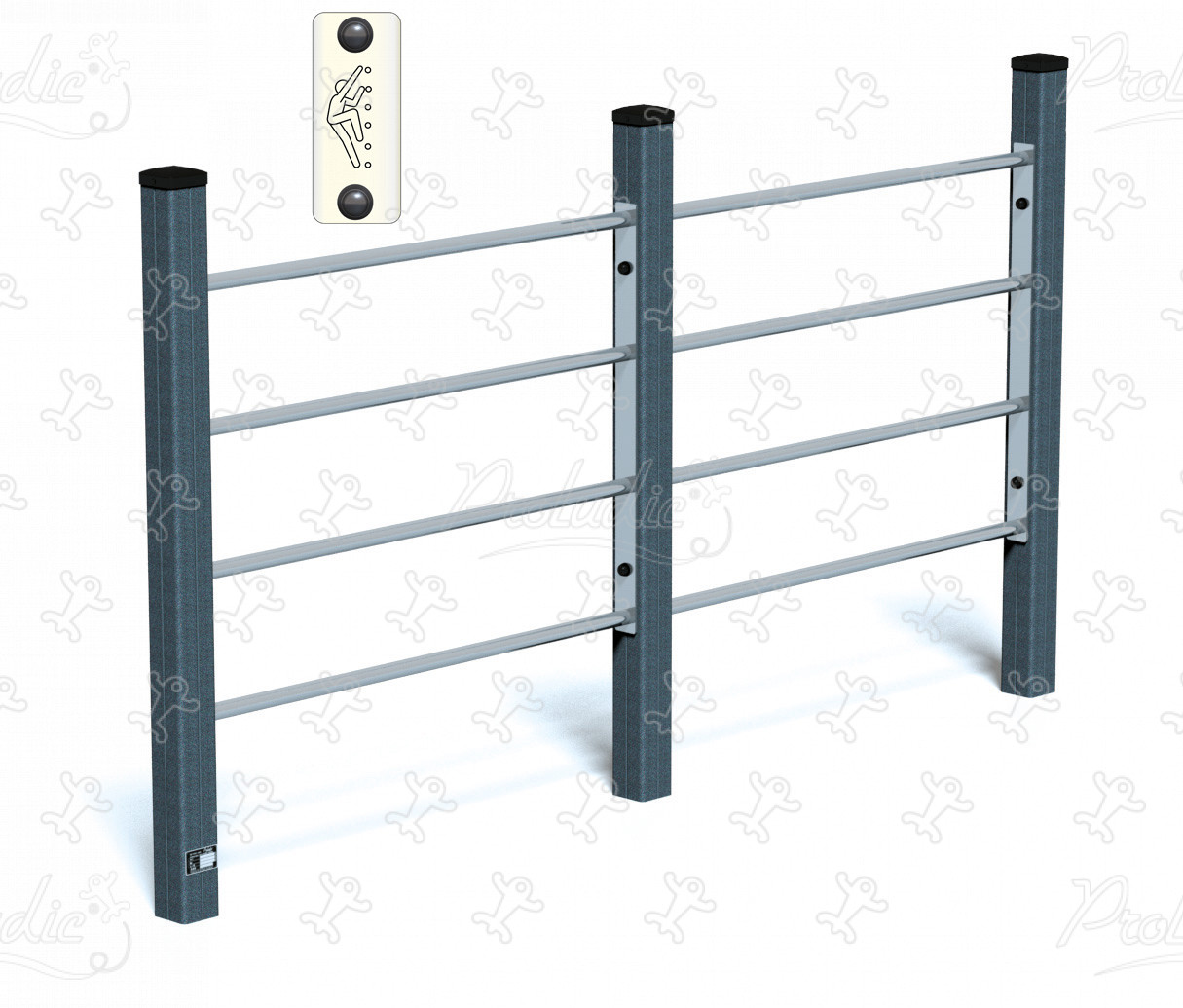

ACTI’Ninja - Junior Double Wall Bars - JPS11-J-M

We have created the reference JPS11-J-M in our "ACTI’Ninja" range. This module is accessible from 8 years. It can accommodate up to 2 users.

The size of the module is: 2.69 m length, 0.10 m width, 1.49 m. high. The free fall height (FFH) is 1.30 m.

Other finishes available

JPS11-S-M

JPS11-S

JPS11-J

8 sports activities

Push-ups x2

Squats x2

Balancing x2

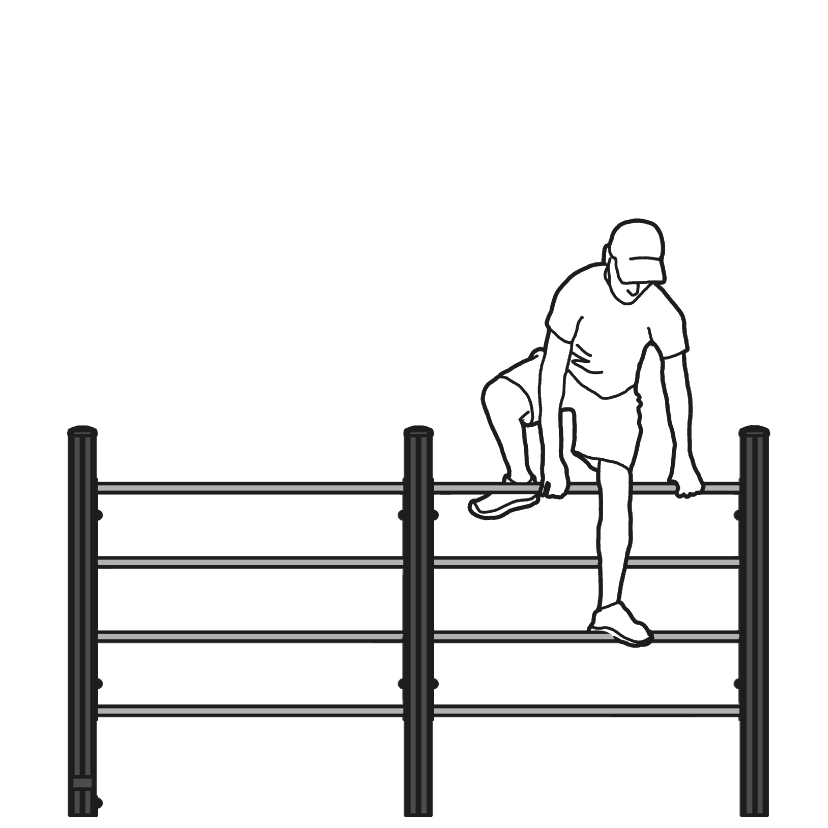

Climbing x2

3 ludo-sport motivations

Sharing

Diversity

Challenge

Specifications

Age range:	8+
Number of users:	2 users
FFH :	1.30 m
Size:	2.69 x 0.10 x 1.49 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.10 m3
Surface:	16.00 m2
Total weight:	69.48 kg
Weight of the heaviest element:	14.03 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Ninja - Junior Double Wall Bars - JPS11-J-M

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 34mm diameter galvanised steel.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
