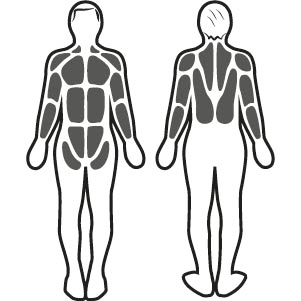

Muscle stimulation

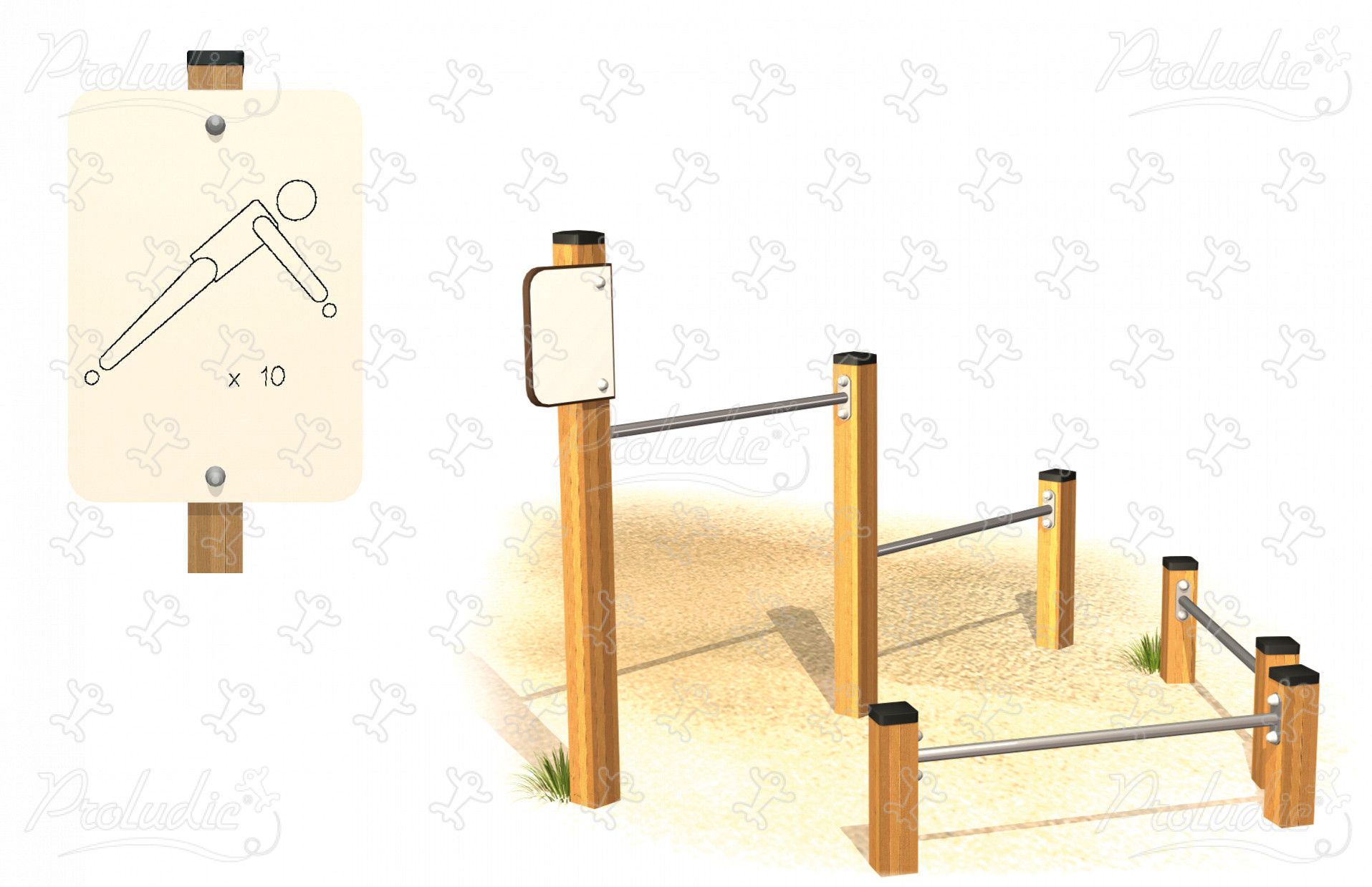

Wood trim trails - Senior Timber Push-up Bars - JPS18-S

We have created the reference JPS18-S in our "Wood trim trails" range. This module is accessible from 14 years. It can accommodate up to 2 users.

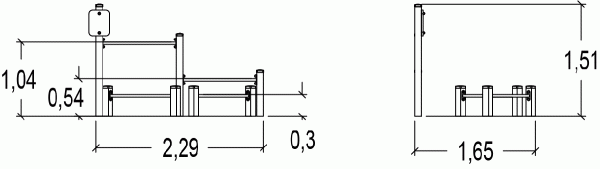

The size of the module is: 2.29 m length, 1.65 m width, 1.51 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

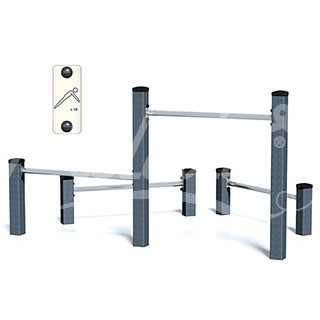

JPS18-S-M

5 sports activities

Abs x1

Push-ups x4

3 ludo-sport motivations

Sharing

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	2 users
FFH :	1.00 m
Size:	2.29 x 1.65 x 1.51 m

Equipment installation

Number of installers:	1
Installation time:	01:30:00
Concrete volume:	0.20 m3
Surface:	20.00 m2
Total weight:	56.36 kg
Weight of the heaviest element:	10.79 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more
