Swings - Inclusive Swing - R49-IPY-1611

We have created the reference R49-IPY-1611 in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 1 user.

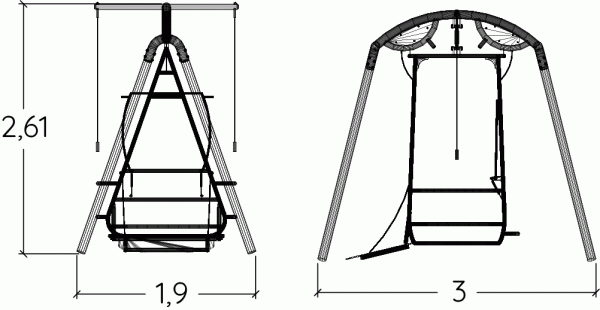

The size of the module is: 2.94 m length, 1.93 m width, 2.61 m. high. The free fall height (FFH) is 1.30 m.

Other finishes available

R49-UMN-230

2 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Specifications

Age range:	2+
Number of users:	1 user
FFH :	1.30 m
Size:	2.94 x 1.93 x 2.61 m

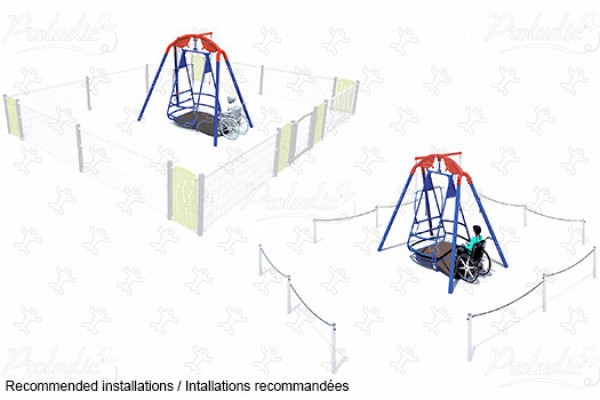

Equipment installation

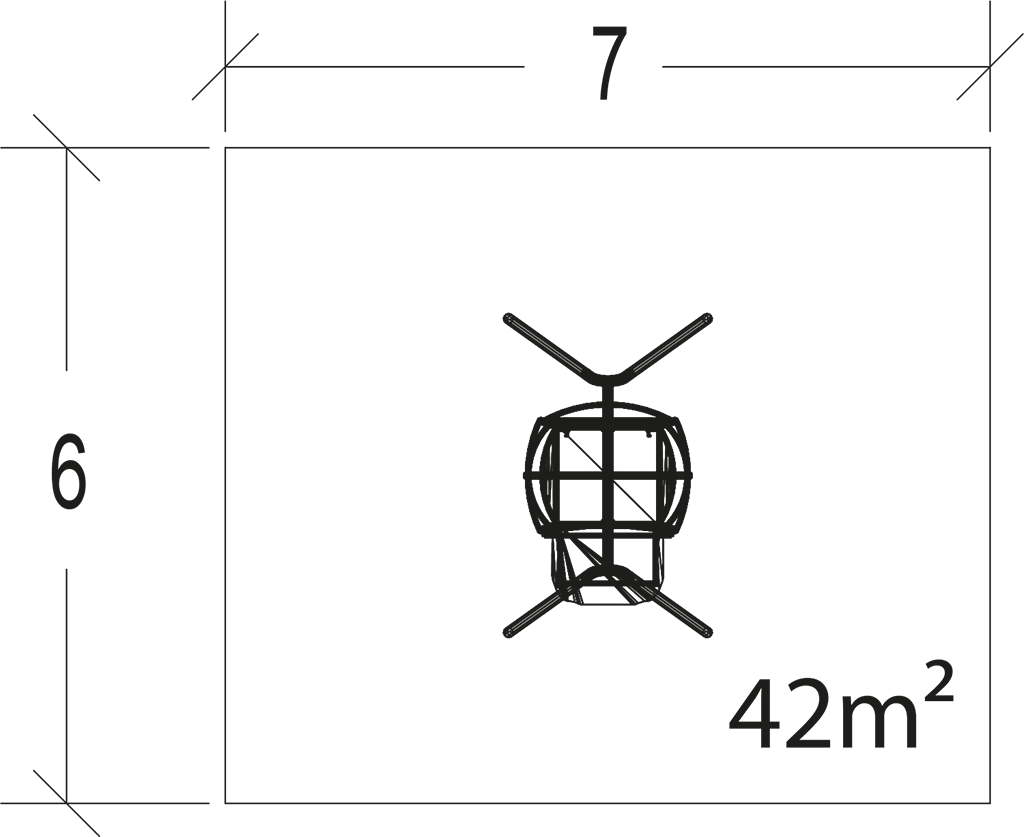

Surface:	42.00 m2
Total weight:	220.00 kg

Environmental Indicators

Repairability

8.05 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

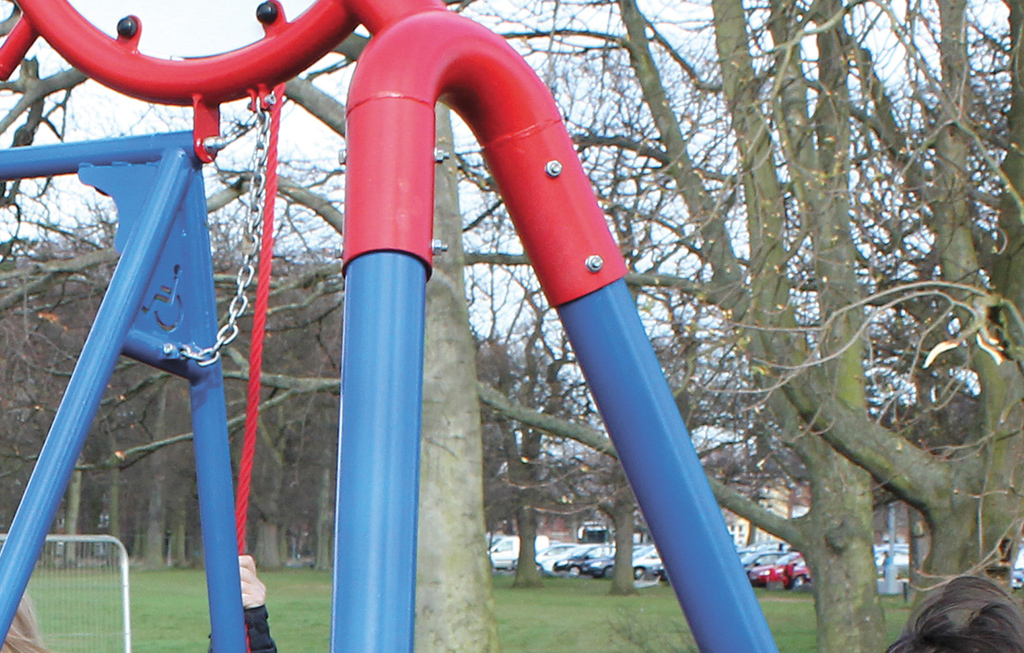

The 88.9mm diameter posts are made of galvanised, powder coated steel, ensuring long term durability.

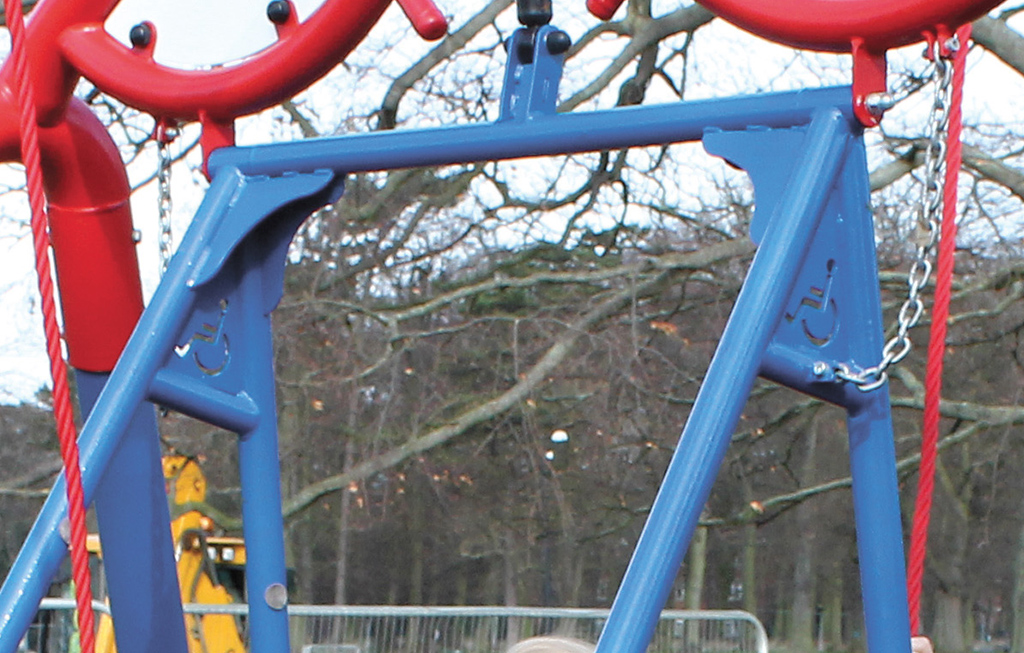

The tubes, 42.4x2mm, 38x2mm, 60.3x2.6mm, 88.9x2.7mm with profile 40x27x2mm, are made from galvanised, powder coated steel.

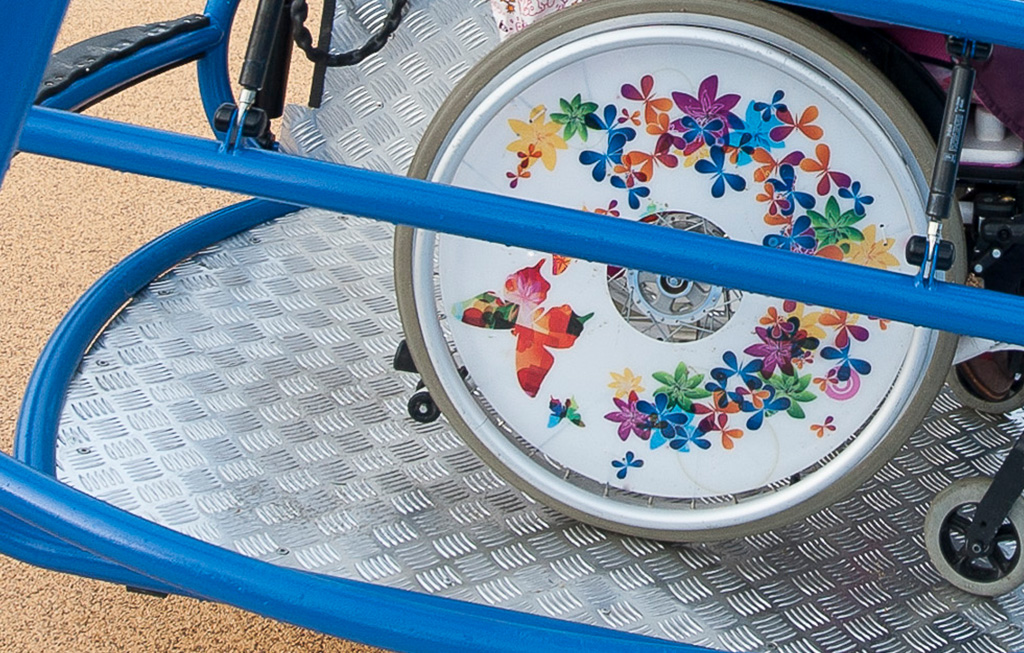

The platform is made of a non-slip channelled aluminium surface, 3mm thick.

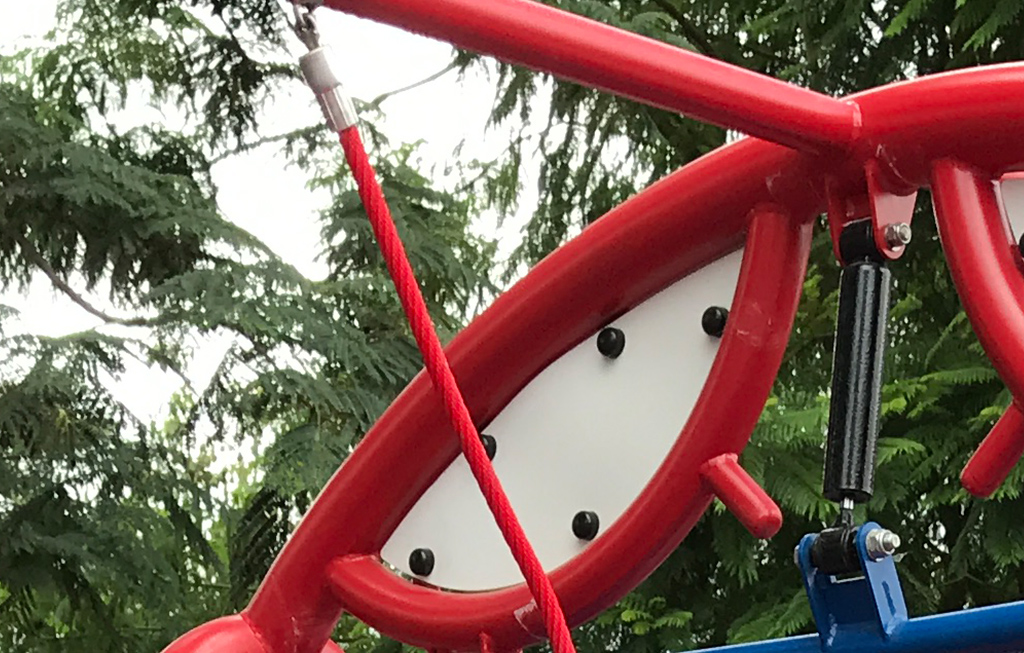

The swing chains are made from rope, Ø 16mm, composed of polypropylene cords and with plastic ending.

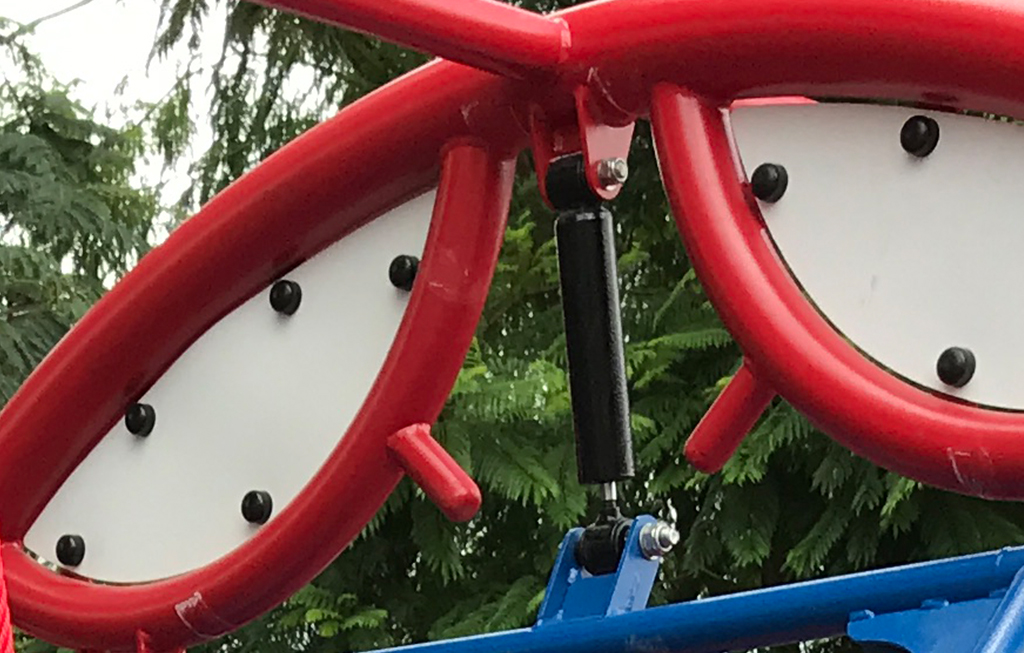

The fixings are covered with plastic caps.

Everything you need to know about the materials used by Proludic
